Atlas Sound FC-4TLP – 4" IsoFlare Low Profile Ceiling Speaker

Product Overview

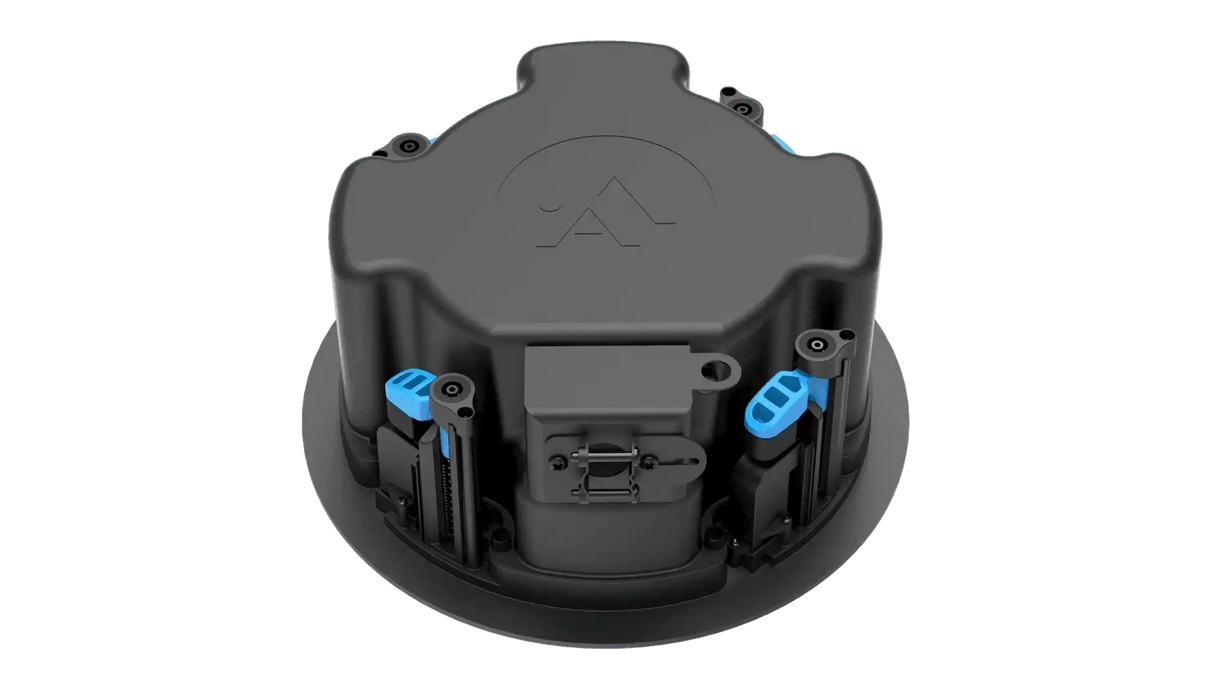

The Atlas Sound FC-4TLP is a 4-inch premium low-profile in-ceiling loudspeaker featuring the patented IsoFlare™ coaxial point source driver, engineered for prestige commercial environments where both audio fidelity and ceiling cavity depth are constrained. With a reduced back-can depth specifically designed for shallow ceiling plenum installations, the FC-4TLP brings high-resolution music and speech reproduction to boardrooms, corporate offices, hotel lobbies, and similar critical listening spaces that cannot accommodate standard-depth ceiling speakers. The speaker is supplied with a C-Ring and Tile Bridges for blind-mount installation and carries a 60-month limited warranty.

Product Description

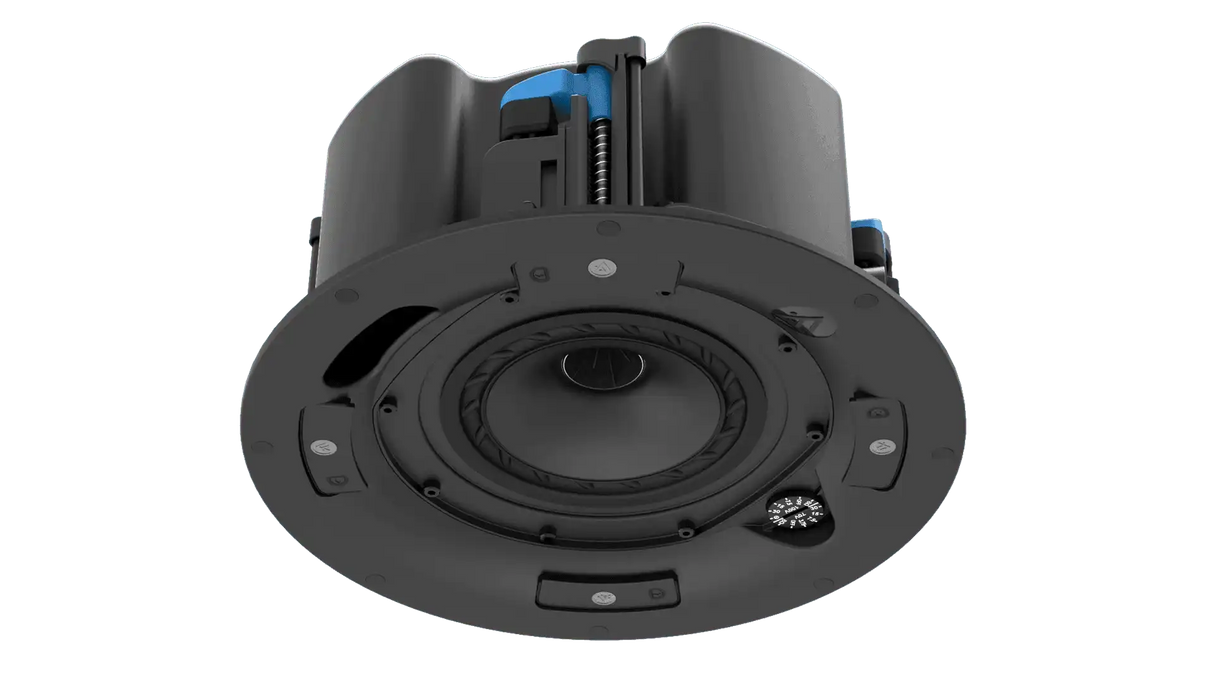

The IsoFlare™ driver technology at the core of the FC-4TLP achieves time and phase coherence by propagating a spherical wavefront from a true point source. Unlike conventional coaxial designs where HF and LF sources are spatially offset and require acoustic correction, the IsoFlare driver produces homogeneous alignment on all axes — the result is consistent tonal balance and natural off-axis response throughout the listening area. This makes the FC-4TLP particularly effective in commercial spaces where listeners are distributed at varying angles from each speaker, such as boardrooms with broad seating arrangements or hotel corridors with irregular occupancy.

The HF driver uses a ferrofluid-cooled titanium dome with a neodymium magnet system for both thermal stability under extended operation and high sensitivity. The LF cone uses weather-treated multi-fiber material combining controlled stiffness with a top-end roll-off profile that avoids undesired resonance peaks in the mid-range. The Fluted Surround Technology on the woofer surround minimizes energy reflected back down the cone — a common source of coloration in conventional drivers. The crossover is built from premium air-core inductors and polypropylene capacitors for very low insertion loss and minimal signal coloration. The 30W 70/100V transformer is full-bandwidth with very low insertion loss, maintaining the driver's acoustic character through the transformer path.

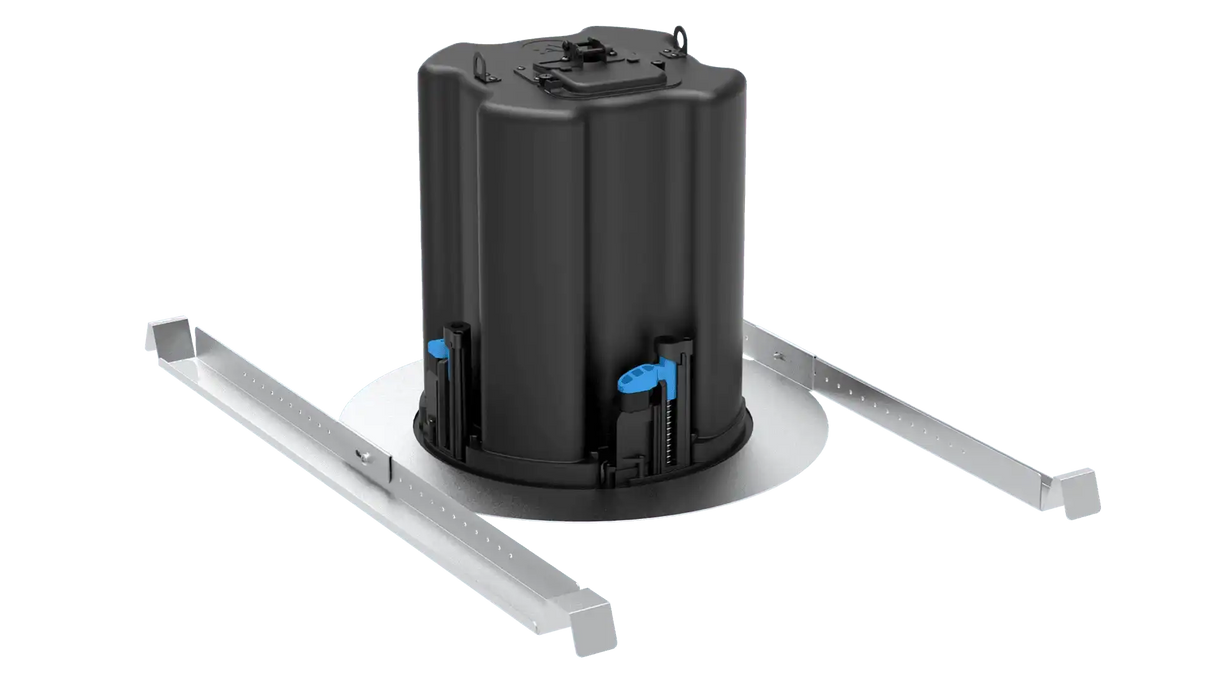

Installation is completed via a patented toolless high-travel secure-clamp mechanism that grips ceiling materials from behind without requiring a back-box in most applications, supported by the included C-Ring and Tile Bridges for tile ceiling installations. The edgeless grille is magnetically secured with no visible fixings and supports an optional single-step painting process for blending into painted ceilings. The logo plate is removable. The speaker is compatible with the AtlasIED Atmosphere DSP platform, which provides enhanced voicing preset capability for integrators who want to tune the speaker's response for specific room conditions. Warranty is 60 months — above average for commercial ceiling speakers in this category.

Key Features

• IsoFlare™ Coaxial Point Source Driver — Propagates a spherical wavefront for homogeneous on- and off-axis response, delivering consistent tonal balance across the full coverage area.
• Low Profile / Reduced Back-Can Depth — Engineered specifically for installations where ceiling cavity depth is restricted, enabling deployment in shallow-plenum ceilings where standard in-ceiling speakers cannot be installed.
• Ferrofluid-Cooled Titanium HF Driver — Neodymium magnet system with ferrofluid cooling provides thermal stability and high sensitivity for extended operation in commercial environments.
• Fluted Surround Technology — Woofer surround profile minimizes energy reflected back down the cone, reducing mid-range coloration compared to conventional surround designs.
• 30W Full-Bandwidth 70/100V Transformer — Very low insertion loss transformer preserves the driver's acoustic character when operating in 70V or 100V distributed audio systems.
• Premium Crossover Components — Air-core inductors and polypropylene capacitors minimize signal coloration and maintain crossover accuracy over time and temperature.

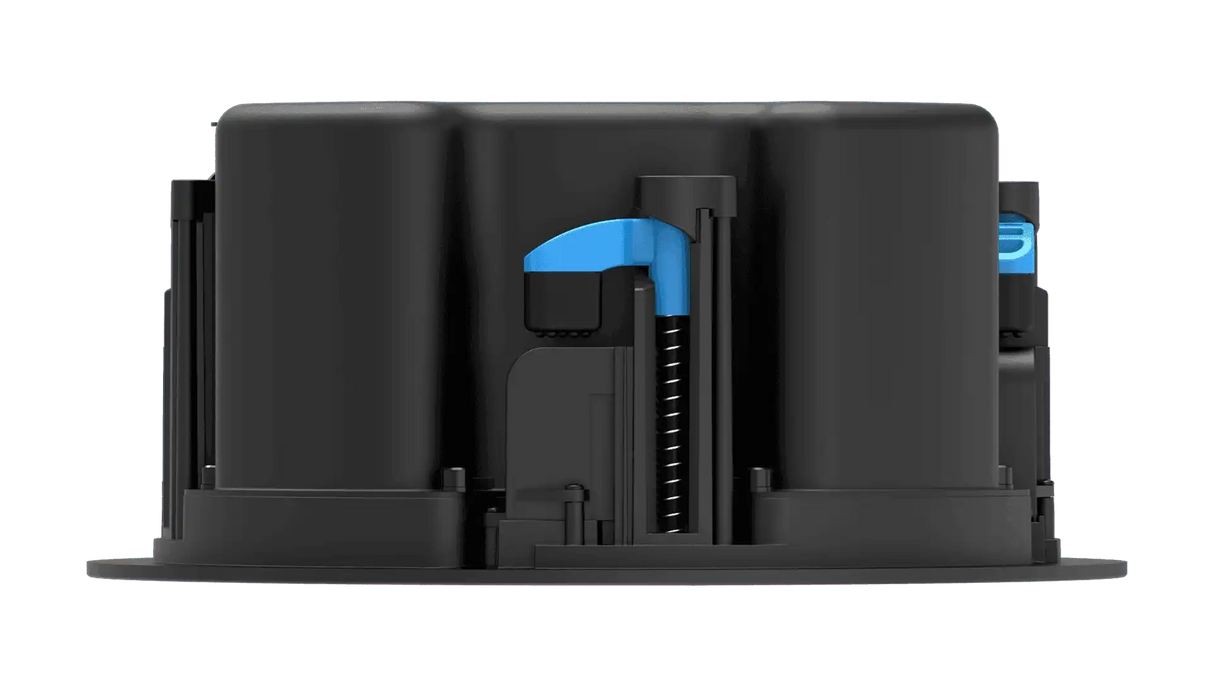

• Patented Toolless Secure-Clamp Mechanism — High-travel clamp grips ceiling material securely without tools, reducing installation time and hardware requirements.

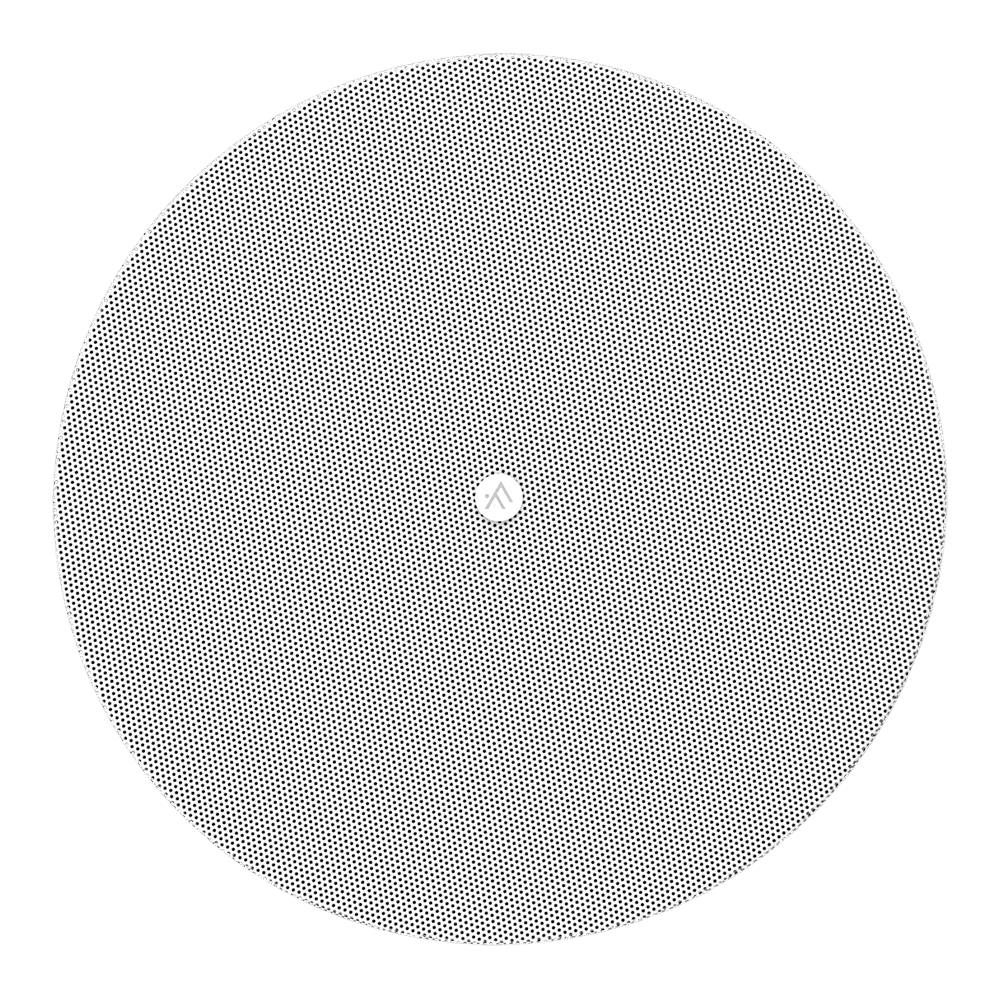

• Edgeless Magnetic Grille — No visible fixings; paintable in a single step; removable logo plate; compatible with optional square grille without adapters.
• Atmosphere Platform Compatible — Enhanced voicing presets are accessible via the AtlasIED Atmosphere DSP platform for system-level room tuning.
• 60-Month Limited Warranty — Five-year manufacturer warranty reflects AtlasIED's confidence in the FC series construction and long-term commercial reliability.

Typical Applications

• Boardroom premium in-ceiling audio
• Conference room speech and music reinforcement
• Corporate office background music zones
• Hotel lobby and hospitality common areas
• House of worship overflow and narthex areas
• Commercial meeting spaces with shallow ceiling construction

Technical Specifications

Frequently Asked Questions

Q: What ceiling depth does the FC-4TLP require?

A: The FC-4TLP is specifically designed with a reduced back-can depth for shallow-plenum ceilings. Consult the product installation guide for the minimum plenum depth required; it is substantially less than standard-depth ceiling speaker models.

Q: Does the FC-4TLP require a back-box?

A: The patented toolless secure-clamp mechanism is designed for blind mount installation without a back-box in most ceiling types. The included C-Ring and Tile Bridges support installation in standard tile ceilings.

Q: Can the grille be painted to match the ceiling?

A: Yes. The edgeless grille is designed to support a single-step painting process. The logo plate is removable before painting. Optional black and white grilles are also available.

Q: Is the FC-4TLP compatible with 70V distributed audio systems?

A: Yes. The speaker includes a full-bandwidth 30W 70/100V transformer with very low insertion loss, maintaining audio fidelity in distributed audio system deployments.

Q: How does the Atmosphere platform integrate with the FC-4TLP?

A: The AtlasIED Atmosphere DSP platform supports enhanced voicing presets for FC series speakers, allowing system integrators to apply room-specific tuning curves for optimized speech or music reproduction in each zone.

Q: What is the warranty on the FC-4TLP?

A: The FC-4TLP carries a 60-month (5-year) limited warranty from AtlasIED, which is above the industry norm for commercial ceiling speakers.

Q: Can I use an optional square grille on the FC-4TLP?

A: Yes. The edgeless grille design requires no adapters to accommodate optional square grilles, unlike many competing ceiling speaker designs.
