Atlas Sound FB4-XLRF – 4-Port XLR Female Microphone Floor Box (Black)

Product Overview

The Atlas Sound FB4-XLRF is a recessed microphone outlet floor box preloaded with four female XLR connectors for stage and platform audio installations. Designed for permanent installation into wood stages, platforms, and risers, this mic floor box provides a clean, low-profile solution for routing microphone and audio signals through the floor in live sound, house of worship, theater, and broadcast environments. The slant-loaded D-sub style connectors, hinged steel cover plate, and black finish make the FB4-XLRF a durable, professional-grade floor mount XLR box for commercial audio applications.

Product Description

The FB4-XLRF solves the cable management challenge of running microphone lines to center-stage or podium positions where overhead or wall runs are impractical. The enclosure installs flush into wood substrates typical of stage construction, with the four recessed female XLR connectors oriented at an angle (slant-loaded) for easier cable connection in tight floor-level clearances. The connectors are standard D-sub type, which means they are field-removable and replaceable—installers can substitute other D-sub format devices such as RCA, 1/4" TRS, or etherCON connectors as system needs evolve without replacing the entire floor box. A hinged steel cover plate protects the connectors and cables from foot traffic, equipment wheels, and debris when the box is not in active use. The all-black finish blends with black stage flooring and reduces visibility during performances. The FB4-XLRF can also be used in concrete pour applications when paired with the optional FB4CPB pour box accessory, expanding its use to permanent concrete stages and platforms. The enclosure measures 7.94" in height and 2-5/8" in depth, compatible with standard stage floor thicknesses. Shipping weight is 4 lbs.

Key Features

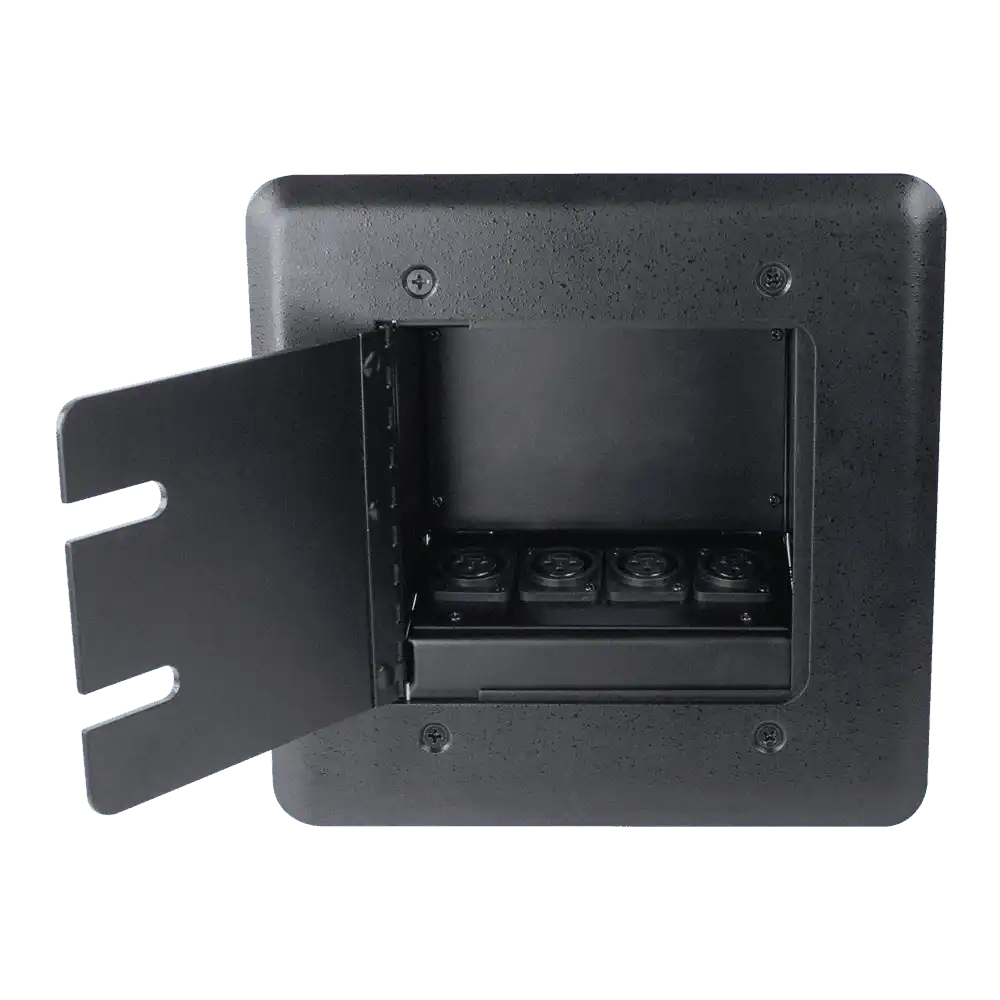

• 4 Recessed Female XLR Connectors — Slant-loaded for easier cable connection at floor level.

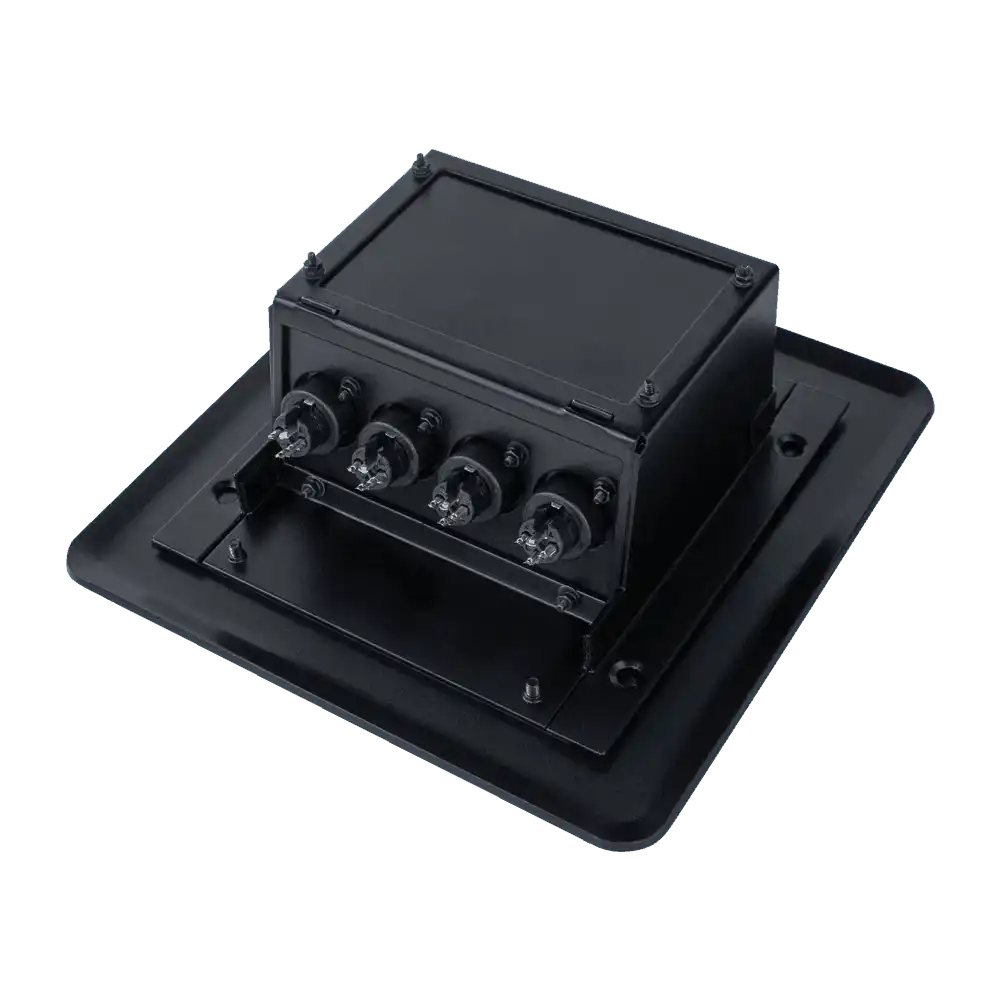

• Removable D-Sub Style Connectors — Field-replaceable connectors allow substitution of other D-sub format devices without replacing the box.

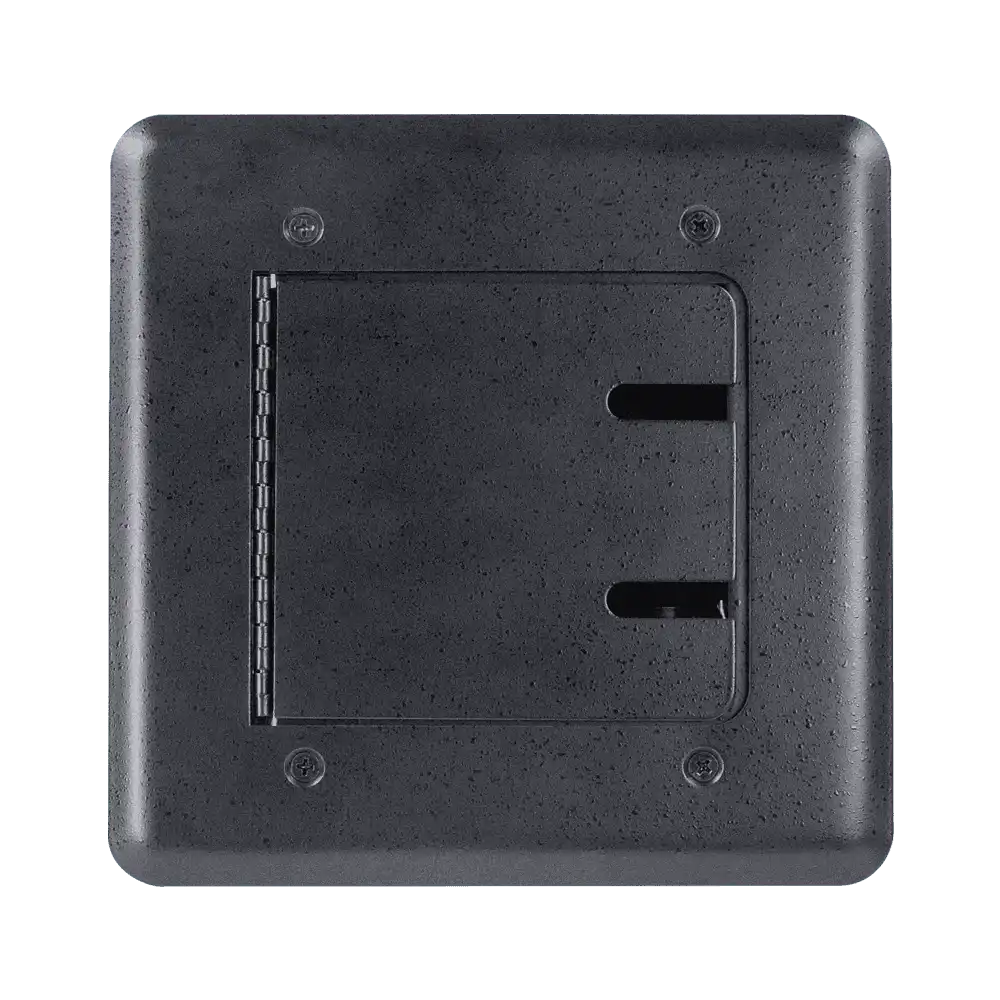

• Hinged Steel Cover Plate — Protects connectors from foot traffic, equipment, and debris when not in use.
• Wood Stage Installation Design — Sized and engineered for easy installation into standard wood stage floors and platforms.
• Concrete Pour Compatible — Use with optional FB4CPB pour box for permanent concrete stage installations.
• All-Black Finish — Minimizes visual presence on black stage surfaces during performances.
• Compact Footprint — 7.94" height, 2-5/8" depth fits within standard stage floor cavity depths.
