Atlas Sound FAP63TC-W – 6.5" Shallow Mount 70V In-Ceiling Speaker Pair

Product Overview

The AtlasIED FAP63TC-W is a 6.5" coaxial in-ceiling speaker specifically designed for installations where shallow mounting depth is a constraint. Part of the Strategy III Series, it supports 70V/100V distributed audio operation and ships as a matched pair, making it a practical choice for commercial background music and paging systems where ceiling cavities are limited. Long-tail search applications include shallow mount in-ceiling speaker for low ceilings, 70V coaxial ceiling speaker pair for retail, and UL2043 listed in-ceiling speaker for plenum installations.

Product Description

The FAP63TC-W is engineered for environments where building structure or infrastructure limits available ceiling depth, with a mounting depth of only 3.81" (9.68 cm). Its improved waveguide design produces a 110-degree dispersion pattern, wider than previous models, which allows fewer speakers to maintain uniform sound coverage across a space — reducing material and labor costs on larger projects. The integrated 70.7V/100V transformer uses enhanced low-insertion-loss components, preserving more of the amplifier's power across extended distributed speaker runs. A front-mounted 70V tap selector switch simplifies power tap adjustments during installation or system tuning without requiring access to the back of the baffle. The detachable 4-pole Phoenix-style connector allows pre-wiring of each location before the speaker is installed, and also supports daisy-chaining of additional speakers or subwoofers. A unique trap-door input section accommodates through-conduit runs with both rigid and flexible conduit, supporting a broader range of installation methods. Press-fit grilles attach without visible fasteners, blending with contemporary architectural finishes. The FAP63TC-W carries UL1480a and UL2043 certifications for use in general signaling and plenum ceiling applications. Sold and priced in pairs.

Key Features

• 3.81" Shallow Mounting Depth — Fits in ceiling cavities where standard-depth speakers cannot, ideal for low-ceiling commercial environments.
• 110-Degree Dispersion — Improved waveguide provides wider coverage than previous models, reducing the number of speakers needed.
• Low Insertion Loss 70.7V/100V Transformer — Enhanced transformer preserves system headroom on distributed runs up to 32 watts.
• Front-Mounted Tap Selector — Accessible from the front for fast 70V power tap adjustment; includes transformer bypass for direct-coupled 8Ω operation.
• 4-Pole Phoenix Connector — Detachable connector enables pre-wiring and convenient daisy-chaining of additional speakers.
• Trap-Door Input Section — Accommodates through-conduit wiring runs with rigid or flexible conduit.

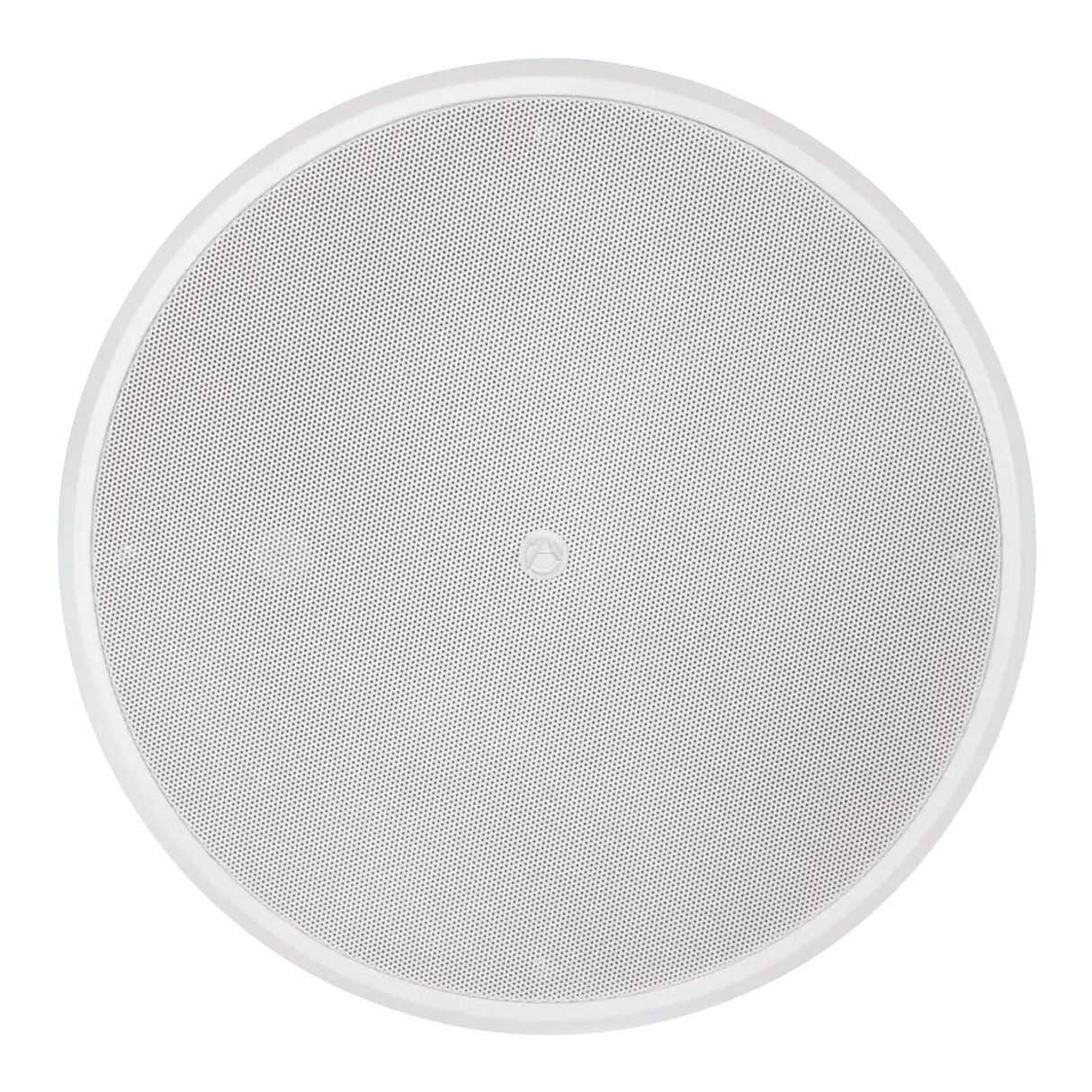

• Press-Fit Grille — Tool-free, frameless grille fits flush with the ceiling for a clean finish in retail and hospitality environments.
• UL1480a & UL2043 Listed — Safety certified for general signaling and plenum ceiling installations.
• Sold in Pairs — Each purchase includes two matched speakers for consistent left-right or zone deployment.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Multi-purpose room
• Training room
• House of worship

Technical Specifications

Frequently Asked Questions

Q: What does "shallow mount" mean for the FAP63TC-W?

A: The FAP63TC-W has a mounting depth of only 3.81" (9.68 cm), making it suitable for ceiling cavities where building structure, HVAC, or other infrastructure limits available depth.

Q: Can I operate this speaker without the 70V transformer?

A: Yes. The tap selector includes a transformer bypass setting for direct-coupled 8Ω operation, giving you flexibility based on your amplifier type.

Q: Is the FAP63TC-W rated for plenum ceilings?

A: Yes. The FAP63TC-W is safety listed to UL1480a and UL2043, which covers general signaling and plenum ceiling applications.

Q: How many speakers come in a purchase?

A: The FAP63TC-W is sold and priced in pairs. Each order includes two matched speakers.

Q: Can the grille be painted?

A: The press-fit grille is paintable to match the ceiling finish. No adapters are required for the painting process.

Q: Does the speaker support daisy-chaining on a distributed system?

A: Yes. The 4-pole detachable Phoenix connector allows easy daisy-chaining of additional speakers and subwoofers on the same circuit.

Q: Is there a pre-construction version available?

A: Yes. The FAP63TC-TR new construction ring is available for pre-construction installations where ceiling material has not yet been finished.
