Atlas Sound FAP63T-WEGR – 6.5" 70V In-Ceiling Speaker Edgeless Grille Pair

Product Overview

The AtlasIED FAP63T-WEGR is a 6.5" coaxial in-ceiling speaker from the Strategy III Series, featuring a ported enclosure, Safety First Mounting System (SFMS), and a round white edgeless press-fit grille. It is designed for commercial distributed audio installations where quick, tool-free mounting, wide coverage, and a clean architectural finish are required simultaneously. Sold as a pair. Long-tail search applications include 70V in-ceiling speaker with edgeless grille for commercial, safety first mounting in-ceiling speaker for retail, and UL2043 ported ceiling speaker for hospitality.

Product Description

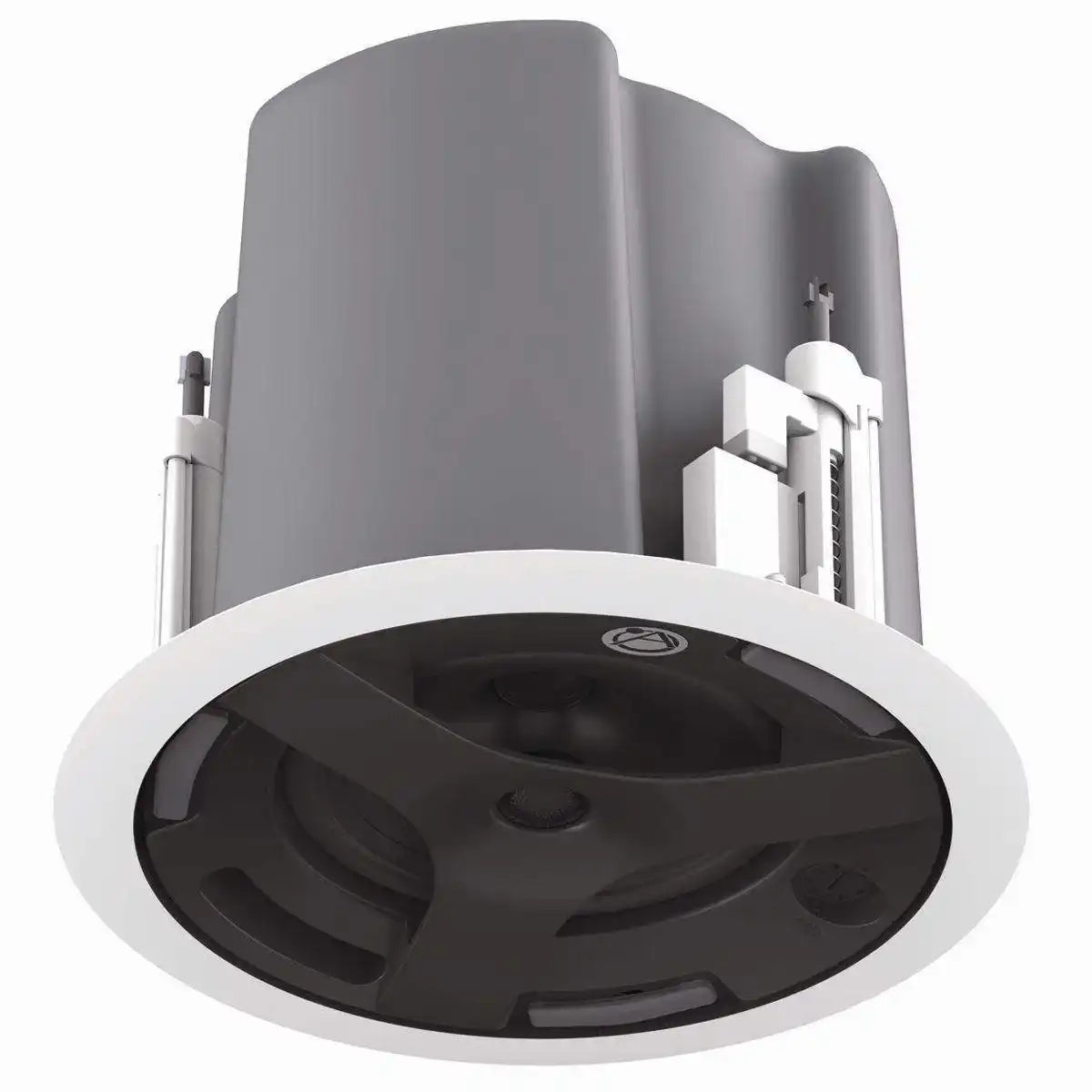

The FAP63T-WEGR is built on AtlasIED's Strategy III platform, which incorporates next-generation installation technology at an accessible price point for large-scale commercial deployments. The patented Safety First Mounting System uses T-handles integrated into the front baffle to secure mounting tabs in ceiling materials ranging from sheet metal to 3/4" drywall without the use of separate tools. This approach reduces installation time by up to 60% compared to conventional dog-leg mounting systems and eliminates the over-torque failure mode that can cause mounting tabs to fracture over time. The ported enclosure optimizes low-frequency tuning for the 6.5" driver, providing deeper bass definition in the 50 Hz–20 kHz response range. The improved waveguide design achieves 110-degree dispersion, enabling wider coverage with fewer speakers per zone. The edgeless round white grille attaches via press fit, leaving no visible fasteners and producing a clean flush-ceiling appearance suited to high-end retail, hotel, and convention center environments. High-quality 70.7V/100V transformer components minimize insertion loss, preserving amplifier headroom across long distributed runs. A front-mounted tap selector switch provides access to 4, 8, 16, and 32-watt power taps along with an 8Ω transformer bypass setting. The 4-pole detachable Phoenix connector enables pre-wiring before the speaker is installed and supports daisy-chaining. In-ceiling humidity and climate variation is addressed by the corrosion-free mounting hardware, which contains no metal screws in the dog-leg mechanism. Certified to UL1480 and UL2043. Sold in pairs. 60-month warranty.

Key Features

• SFMS Patented Mounting System — Tool-free T-handle installation reduces mounting time by up to 60% and prevents tab damage from over-torquing.

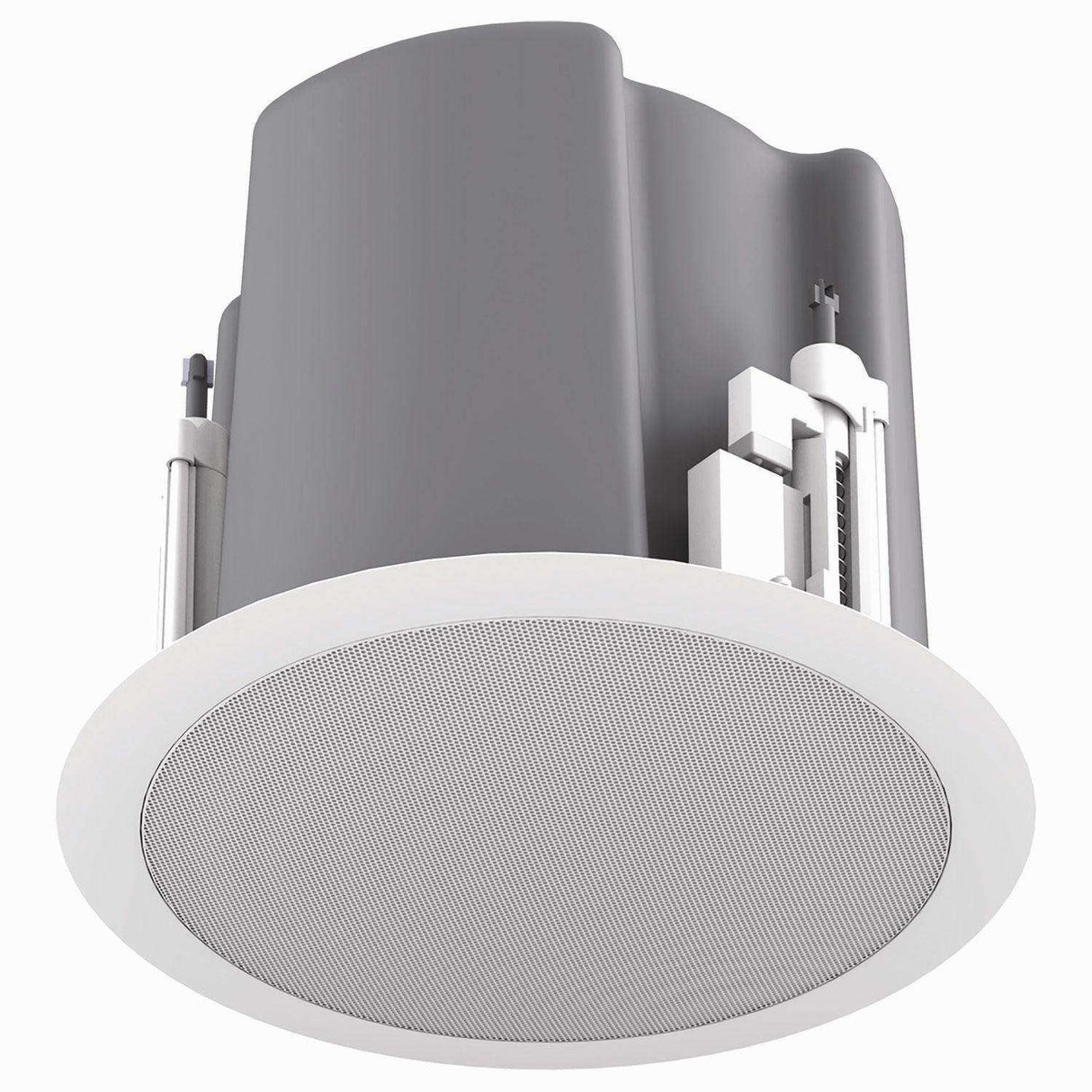

• Edgeless Round Grille — Press-fit, frameless white grille provides a clean architectural flush-ceiling finish with no visible fasteners.
• Ported Enclosure — Optimized low-frequency tuning port improves bass definition and extends frequency response.
• 110-Degree Dispersion — Wide coverage pattern from improved waveguide design reduces the number of speakers needed per zone.
• Low Insertion Loss 70.7V/100V Transformer — Enhanced transformer minimizes signal loss on distributed speaker runs up to 32 watts.
• Front-Mounted Tap Selector — Provides access to 4, 8, 16, 32-watt taps and 8Ω bypass without baffle removal.
• 4-Pole Phoenix Connector — Detachable for pre-wiring and daisy-chaining additional speakers.
• Trap-Door Input Section — Supports through-conduit wiring runs with rigid or flexible conduit.
• Corrosion-Free Mounting Hardware — No metal screws in the dog-leg mechanism prevents rust-related mounting failures in humid environments.
• UL1480 & UL2043 Listed — Safety certified for general signaling and plenum ceiling installations.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Multi-purpose room
• Training room
• House of worship
• All-hands room

Technical Specifications

Frequently Asked Questions

Q: What is the Safety First Mounting System (SFMS) and why does it matter?

A: SFMS is a patented mounting technology that uses T-handles integrated into the speaker baffle to tighten the mounting tabs without separate tools. It prevents over-torquing that can fracture conventional dog-leg mounting tabs, and it reduces installation time by up to 60%. The mounting hardware also uses no metal screws, preventing corrosion failures in humid ceiling environments.

Q: What makes the grille "edgeless"?

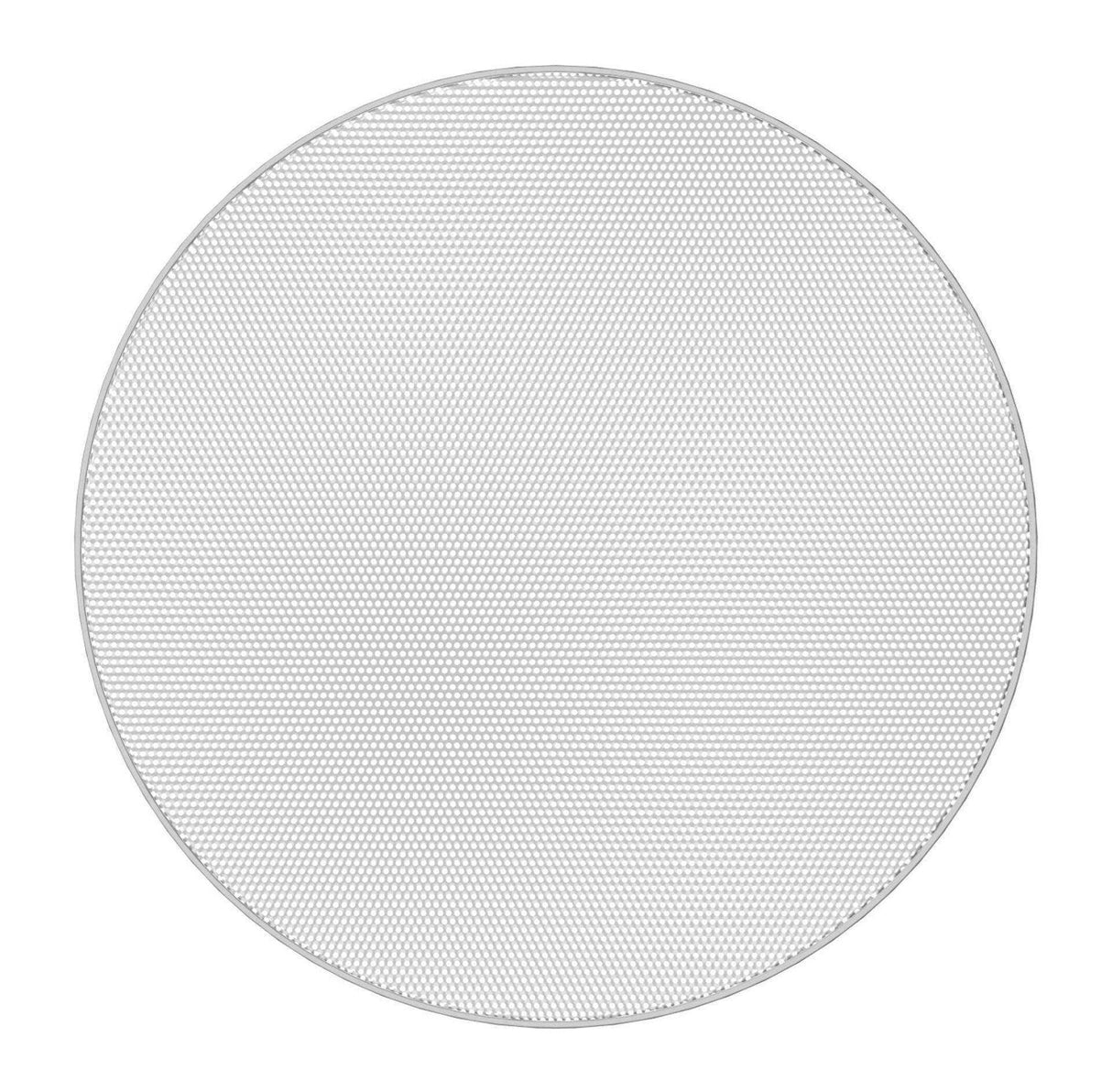

A: The edgeless grille is a round, frameless press-fit grille that attaches without visible fasteners or a stepped lip around its perimeter. This produces a cleaner, more flush finish compared to standard grilles, which is particularly valued in premium retail and hospitality installations.

Q: What does the ported enclosure add to performance?

A: The ported enclosure includes a low-frequency tuning port that extends bass response and improves the definition of low frequencies below the driver’s natural roll-off point, compared to an unported (sealed) design.

Q: Is the FAP63T-WEGR suitable for plenum ceiling installations?

A: Yes. The FAP63T-WEGR is certified to UL1480 and UL2043, which includes plenum ceiling applications.

Q: Can the FAP63T-WEGR operate without the 70V transformer?

A: Yes. The tap selector includes an 8Ω transformer bypass setting for direct-coupled operation with a conventional low-impedance amplifier.

Q: How many speakers are included per purchase?

A: The FAP63T-WEGR is sold in pairs. Each purchase includes two matched speakers.
