Atlas Sound FAP62T-USA – Strategy I 6" In-Ceiling Speaker Package Buy America

Product Overview

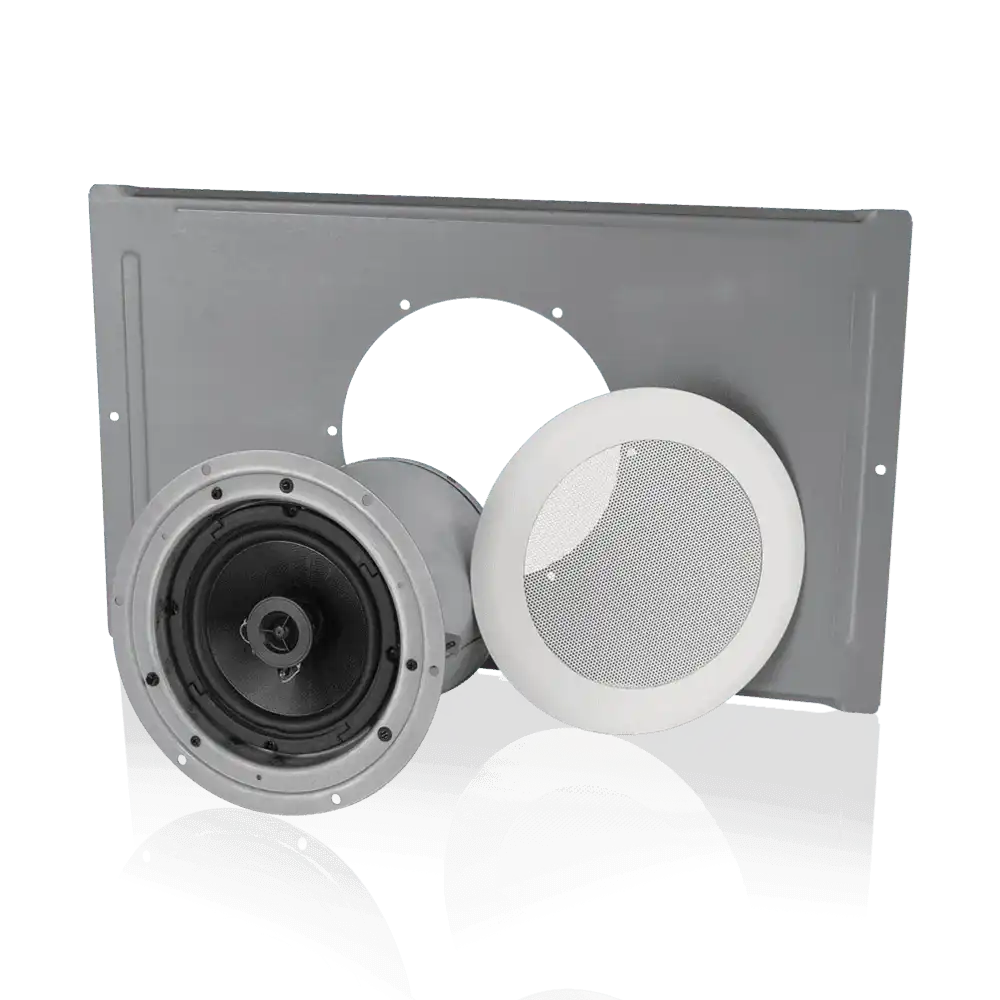

The Atlas Sound FAP62T-USA is a pre-assembled Strategy I Series 6-inch in-ceiling speaker package that meets Buy American Act requirements, making it the standard choice for government, institutional, and federally funded commercial AV projects requiring domestic content compliance. Sold and priced in pairs, each package includes the FA136T87 loudspeaker with integrated 70.7V transformer, FA97-6 enclosure, FA720-6 baffle, and FA81-6 tile bridge—everything needed for a complete ceiling speaker installation. Assembled in AtlasIED's manufacturing facility in Ennis, Texas, the FAP62T-USA delivers UL1480 and UL2043 listed performance for general signaling and plenum ceiling applications.

Product Description

The FAP62T-USA combines a coaxial 6-inch loudspeaker with even dispersion characteristics and a low-profile enclosure, making it well-suited for low-ceiling commercial spaces. The integrated 70.7V transformer with power taps at 1, 2, 4, and 8 watts accommodates a wide range of distributed audio system designs. Power handling is rated at 35 watts RMS with a 50-watt peak capacity, and frequency response extends from 80 Hz to 20 kHz with 88 dB average sensitivity. The UL1480 and UL2043 listings confirm suitability for fire signal and plenum ceiling environments—critical requirements for commercial, institutional, and educational facility installations. The pre-assembled format reduces on-site installation labor by eliminating the need to source and assemble individual speaker components separately. The FA97-6 enclosure depth of 7-5/8 inches (194mm) and a 7-inch (178mm) baffle diameter make the package compatible with standard ceiling tile grids. This package meets the Buy America Act requirements for federally funded projects and is assembled in the United States from domestic and foreign parts at one of AtlasIED's ten U.S. facilities operated by the Mitek Communications Group.

Key Features

• Buy America Act Compliant — Assembled in Ennis, TX, satisfying BAA requirements for federal, government, and publicly funded AV installations.
• Pre-Assembled Package — Includes loudspeaker, enclosure, baffle, and tile bridge in a single order, reducing installation labor and procurement complexity.
• UL1480 and UL2043 Listed — Certified for general signaling and plenum ceiling installations in commercial and institutional environments.
• Integrated 70.7V Transformer — Power taps at 1, 2, 4, and 8 watts support flexible system design in 70V distributed audio networks.
• Coaxial 6" Loudspeaker — Provides even dispersion and high-fidelity sound reproduction across voice and music frequency ranges.
• Low-Profile Enclosure — The FA97-6 enclosure suits low-ceiling applications where minimal above-ceiling clearance is available.
• 35W RMS / 50W Peak Power Handling — Adequate headroom for voice, music, and signal applications in commercial and institutional spaces.
• Sold in Pairs — Priced per pair for efficient procurement in multi-zone or multi-room deployments.

Typical Applications

• Government space
• Commercial meeting space
• Conference room
• Training room
• Multi-purpose room
• All-hands room
• House of worship

Technical Specifications

Frequently Asked Questions

Q: Does this package meet Buy American Act requirements?

A: Yes. The FAP62T-USA is assembled in AtlasIED's Ennis, TX manufacturing facility from domestic and foreign parts, satisfying Buy American Act requirements for federally funded projects.

Q: Is this package sold as a single unit or a pair?

A: The FAP62T-USA is sold and priced in pairs. Each order includes two complete speaker packages.

Q: What is included in each speaker package?

A: Each package includes the FA136T87 6" Strategy I loudspeaker with integrated 70.7V transformer, the FA97-6 enclosure, FA720-6 baffle, and FA81-6 tile bridge. No additional components are required for a standard installation.

Q: Is the FAP62T-USA suitable for plenum ceiling installations?

A: Yes. The package is UL2043 listed for plenum ceiling installations, satisfying code requirements for commercial HVAC plenum spaces.

Q: What power tap options are available on the integrated transformer?

A: The integrated 70.7V transformer provides power taps at 1, 2, 4, and 8 watts, allowing flexible system design and individual speaker level adjustment.

Q: What ceiling tile grid is this package compatible with?

A: The FA81-6 tile bridge supports standard ceiling tile grid installations. The 7" baffle diameter is sized for typical commercial ceiling tile applications.
