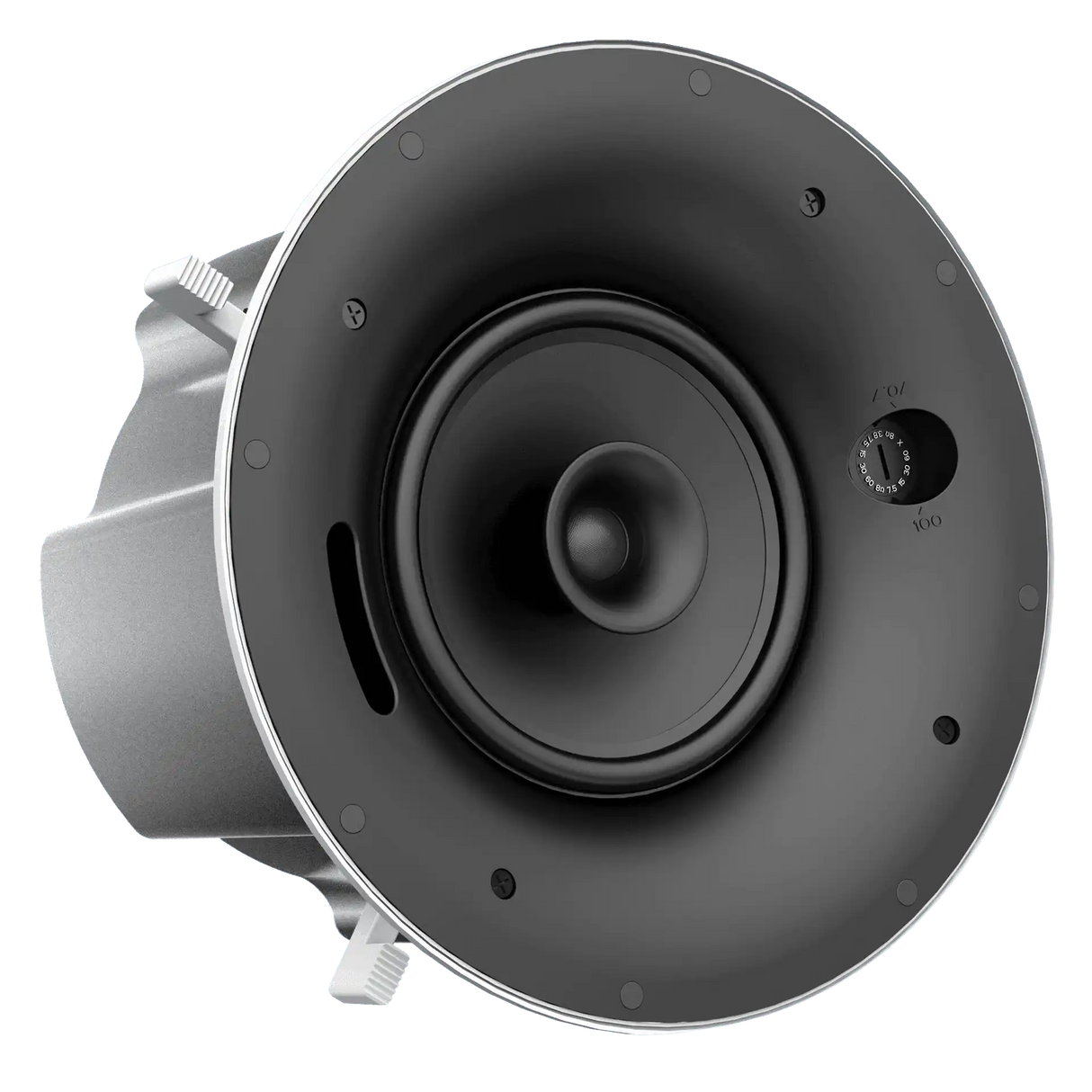

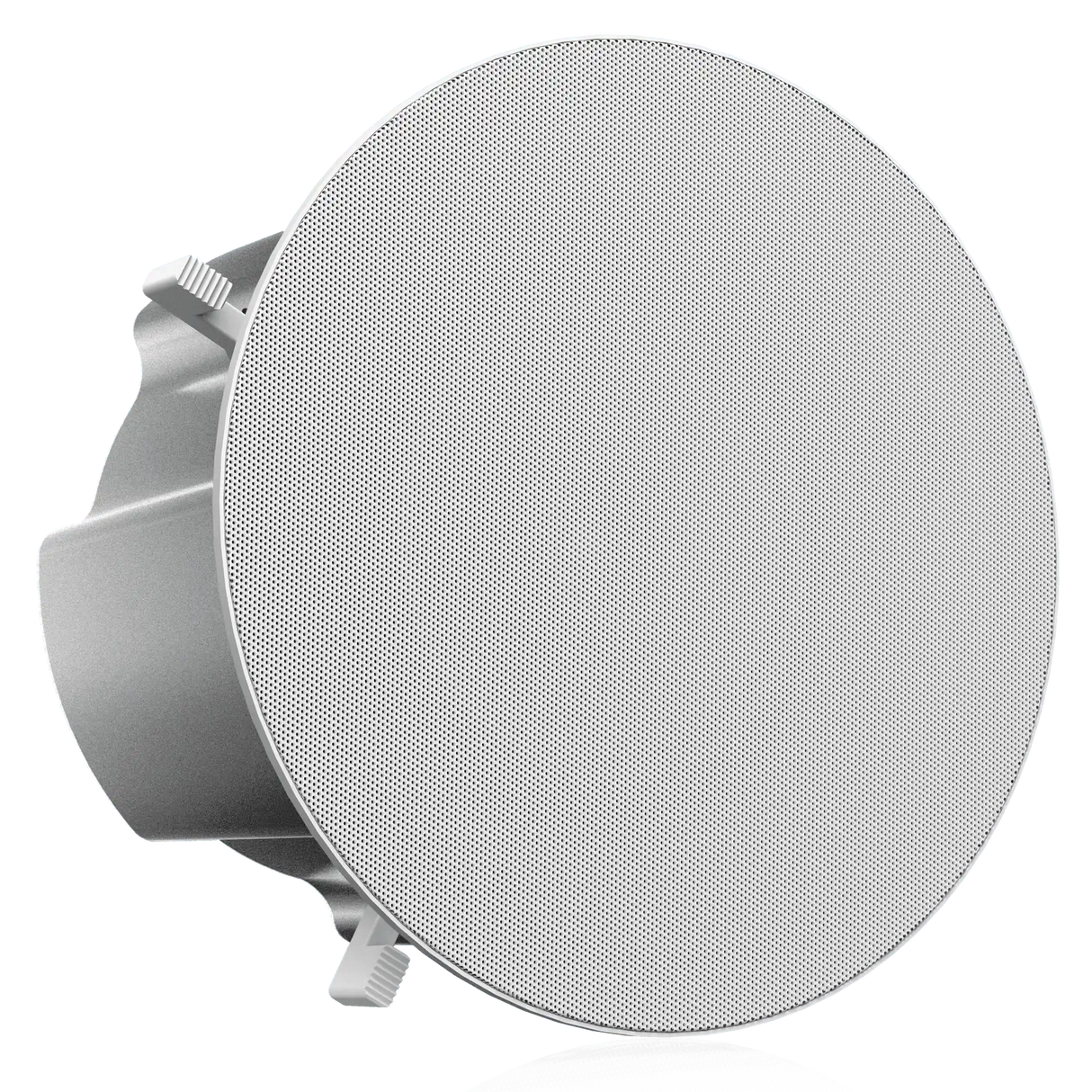

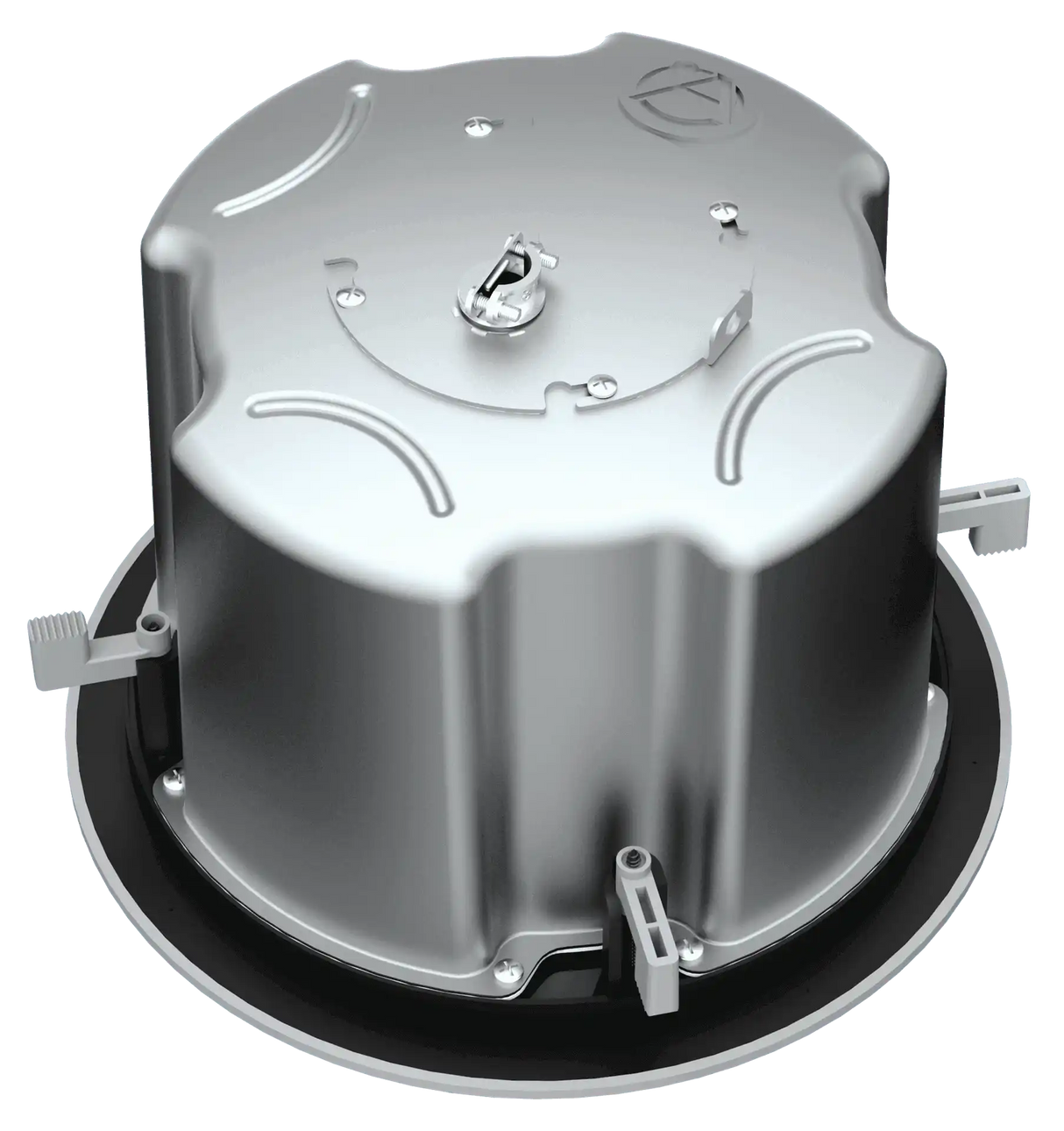

Atlas Sound FAP6260T – 6" 60W 70V Ported In-Ceiling Speaker Pair USA

Product Overview

The AtlasIED FAP6260T is a 6" coaxial in-ceiling speaker package from the Strategy Series, featuring a 60-watt 70V/100V transformer and a ported enclosure. Assembled at AtlasIED's commercial manufacturing facility in Ennis, Texas, it meets Buy American Act requirements for federally funded projects. Sold as a pair, it is suited to commercial, institutional, and government applications requiring high-intelligibility voice and music distribution with UL1480 and UL2043 certification. Long-tail search applications include Buy American Act compliant 70V in-ceiling speaker, USA-made ceiling speaker for government installations, and 60-watt in-ceiling speaker for commercial paging.

Product Description

The FAP6260T package integrates the FA136T87 Strategy I Series loudspeaker with integrated 70.7V transformer, the FA97-6 loudspeaker enclosure, the FA720-6 baffle, and the FA81-6 tile bridge into a single easy-to-order, easy-to-install unit. Every component in the package carries UL1480 and UL2043 listing, covering both general signaling and plenum ceiling applications. The 60-watt transformer rating provides additional headroom compared to typical 30-watt transformer packages, supporting higher drive levels in larger zones or louder commercial environments. Frequency response of 80 Hz–20 kHz and an average sensitivity of 88 dB make the FAP6260T well-suited to both music reproduction and speech intelligibility in typical commercial installations. The low-profile ported enclosure is engineered for low ceiling applications, and the wide coverage of the 6" coaxial driver suits areas where a smaller cutout diameter is preferred. Assembly in the United States from domestic and foreign parts qualifies the FAP6260T for projects requiring Buy American Act (BAA) or Trade Agreements Act (TAA) compliance, which is a meaningful consideration for government, healthcare, and institutional AV projects. The pre-assembled package reduces labor time at the installation site compared to sourcing and assembling individual components separately.

Key Features

• 60-Watt 70V/100V Transformer — Higher power handling than standard 30W packages provides headroom for larger zones or elevated drive requirements.
• Complete Pre-Assembled Package — Includes speaker, enclosure, baffle, and tile bridge for reduced ordering complexity and faster installation.
• UL1480 & UL2043 Listed — Certified for general signaling and plenum ceiling installations.
• Made and Assembled in the USA — Qualifies for Buy American Act and Trade Agreements Act compliance requirements.
• Ported Low-Profile Enclosure — Optimized for low ceiling installations; wider bass extension than sealed designs.
• 80 Hz – 20 kHz Frequency Response — Suitable for both music and voice applications in commercial environments.
• 88 dB Sensitivity — Efficient operation across distributed 70V speaker runs.
• Power Taps: 1, 2, 4, 8W — Multiple wattage tap selections for flexible zone design.
• Sold in Pairs — Each purchase includes two matched speaker packages.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Government space
• Training room
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Q: Does the FAP6260T qualify for Buy American Act compliance?

A: Yes. The FAP6260T is made and assembled in AtlasIED's commercial manufacturing facility in Ennis, TX, from domestic and foreign parts, qualifying it for BAA compliance requirements applicable to federally funded projects.

Q: Why does this model have a 60-watt transformer instead of the standard 30-watt?

A: The 60-watt transformer provides additional headroom compared to typical 32-watt transformer packages, making it suitable for louder commercial environments, larger speaker zones, or applications where higher average drive levels are expected.

Q: What components are included in the package?

A: Each package includes the FA136T87 loudspeaker with integrated transformer, FA97-6 enclosure, FA720-6 baffle, and FA81-6 tile bridge — everything needed for a complete ceiling installation.

Q: Is the FAP6260T rated for plenum ceiling use?

A: Yes. All components in the package carry UL1480 and UL2043 listings, which include plenum ceiling applications.

Q: What ceiling depth is required for installation?

A: The package requires a minimum depth of 7 5/8" (194 mm) based on the included enclosure dimensions.

Q: How many speakers are included per order?

A: The FAP6260T is sold in pairs. Each order includes two complete speaker packages.
