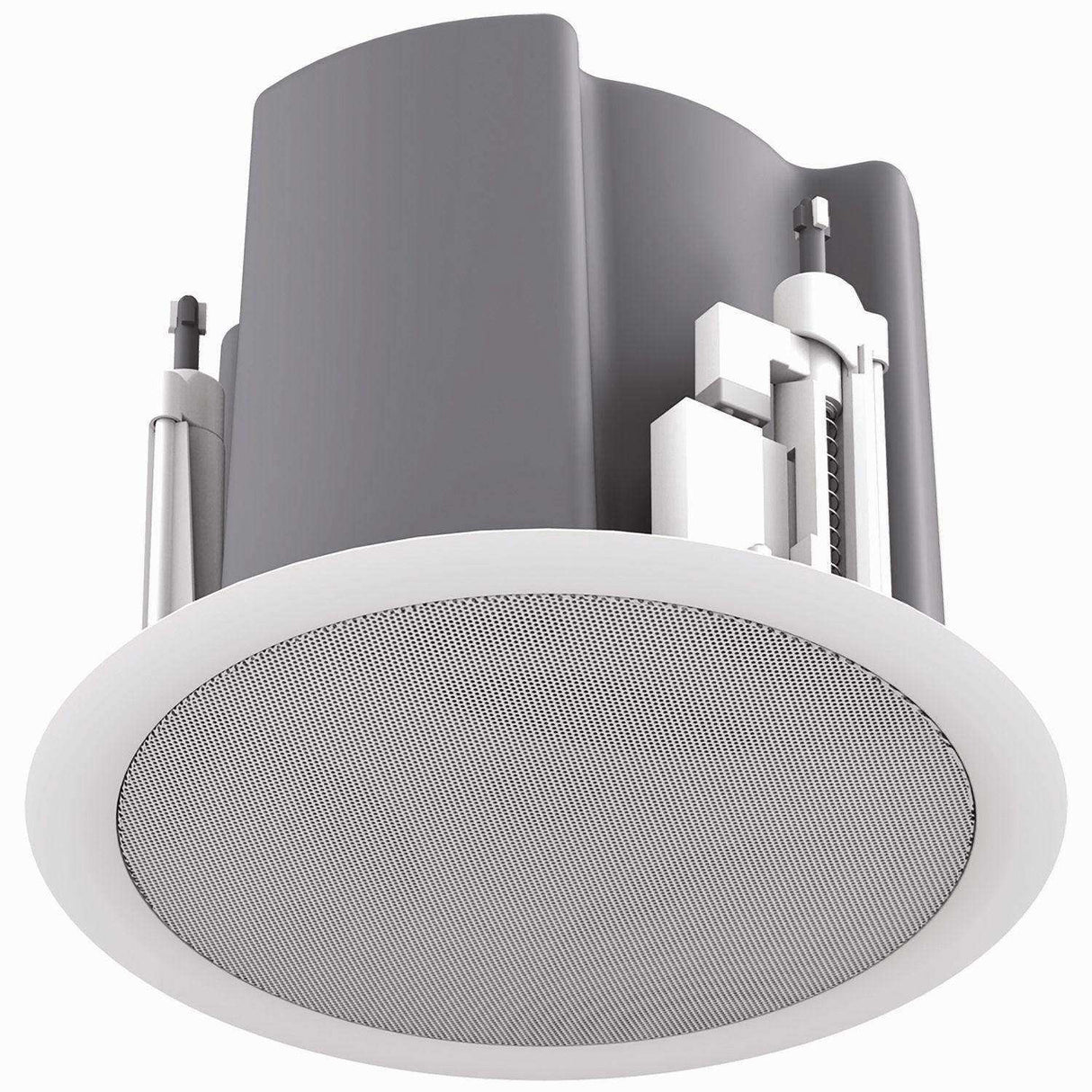

Atlas Sound FAP43T-WEGS – 4.5" Coaxial In-Ceiling Speaker Edgeless Grille Pair

Product Overview

The Atlas Sound FAP43T-WEGS is a 4.5" coaxial in-ceiling speaker designed for commercial audio installations requiring high speech intelligibility and wide audience coverage. Part of the Strategy III Series, this 70V/100V commercial in-ceiling speaker ships as a pair with a square white edgeless grille, making it ideal for modern retail, restaurant, hospitality, and corporate environments where aesthetics and performance both matter. Long-tail applications include 70-volt distributed audio systems, UL2043 listed in-ceiling speakers for plenum spaces, and safety-first mounting system ceiling speakers.

Product Description

The FAP43T-WEGS combines a coaxial driver design with AtlasIED's Safety First Mounting System (SFMS), which uses integrated t-handles to prevent over-torque damage during installation — reducing installation time by up to 60% compared to conventional mounting methods. The improved waveguide delivers 110° dispersion, allowing fewer speakers to cover a given area while maintaining uniform sound throughout the space. A tuned and ported enclosure enhances low-frequency response, and the front-mounted 70V tap selector (covering 4, 8, 16, and 32-watt taps plus 8Ω bypass) is accessible without removing the speaker from the ceiling. A removable 4-pole euro-style (phoenix) connector supports easy pre-wiring and daisy chaining to additional speakers or subwoofers. The grille and baffle are paintable and constructed without metal screws in the dogleg assembly, eliminating corrosion risk in humid environments. This product is UL1480 and UL2043 listed, CE marked, IP 21 rated, and carries a 60-month warranty. It is sold in pairs; each pair includes two speakers and associated hardware. The square white edgeless grille (the WEGS variant) blends cleanly into flush ceiling surfaces compared to the standard round-edged alternative.

Key Features

• Safety First Mounting System (SFMS) — Tool-free t-handle installation reduces install time by up to 60% and prevents mounting tab damage from over-torquing.
• 110° Dispersion Coaxial Driver — Improved waveguide provides wide, uniform coverage, reducing the number of speakers required per installation.
• 32-Watt 70V/100V Transformer — Front-mounted tap selector covers 4, 8, 16, and 32-watt taps plus 8Ω direct bypass without ceiling removal.
• Tuned Ported Enclosure — Optimized low-frequency port delivers deeper bass definition down to 90Hz.
• 4-Pole Detachable Phoenix Connector — Supports pre-wiring and daisy chaining of multiple speakers and subwoofers on a single run.
• Corrosion-Free Construction — No metal screws in the dogleg mounting assembly; suitable for humid or high-moisture environments.
• UL1480 & UL2043 Listed — Safety listed for use in air handling spaces (plenum) and fire alarm applications.

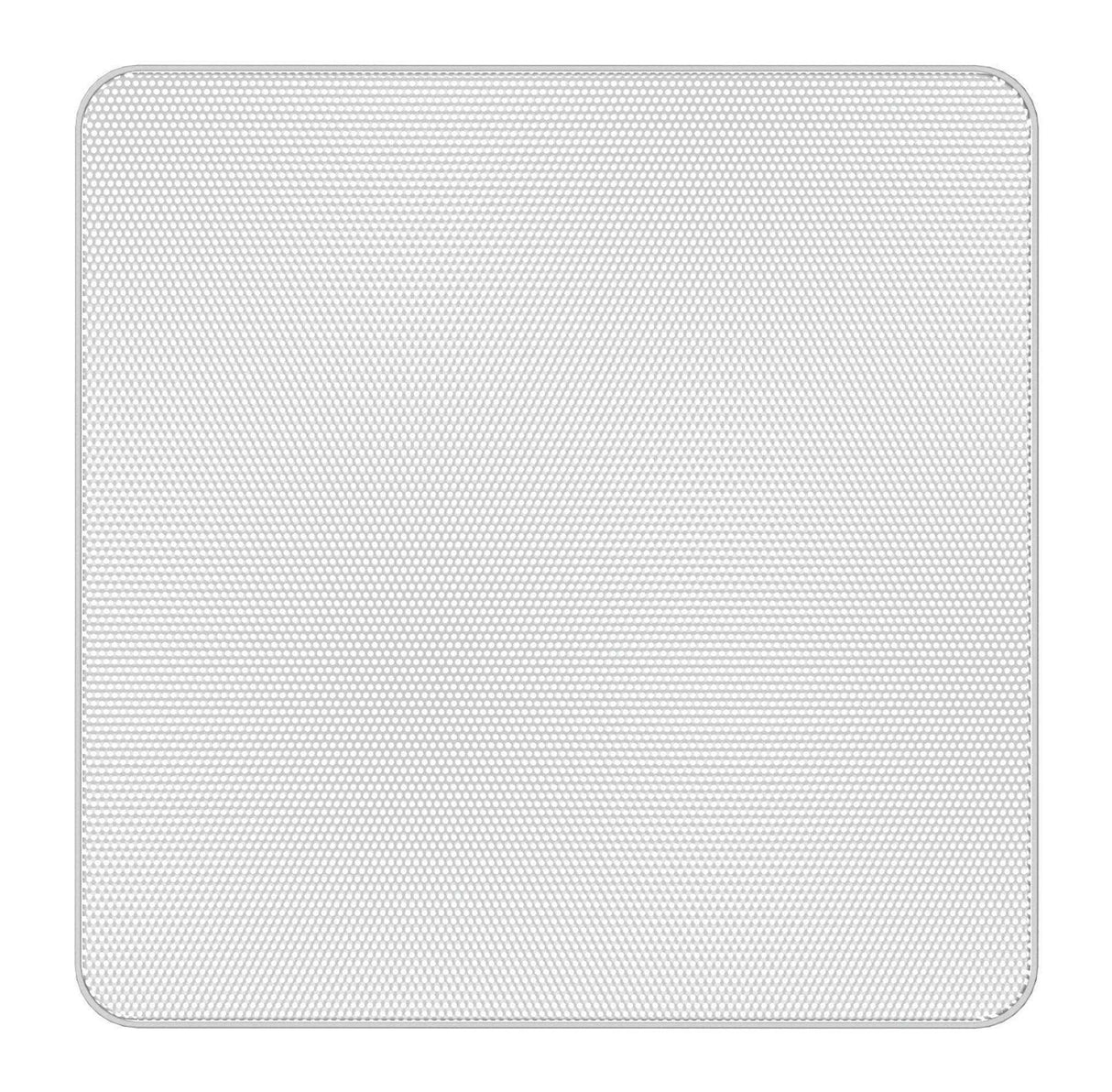

• Square White Edgeless Grille — Flush profile integrates cleanly with contemporary ceiling surfaces; grille and baffle are paintable.
• IP 21 Rated — Protected against vertically dripping water, suitable for areas with occasional moisture exposure.
• Sold as a Pair — Each order includes two complete speaker assemblies with all mounting hardware.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Multi-purpose room
• Training room
• House of worship
• All-hands room

Technical Specifications

Frequently Asked Questions

Q: Is this speaker compatible with 70V and 100V distributed audio systems?

A: Yes. The FAP43T-WEGS includes an internal transformer with selectable taps for 70V/100V operation at 4, 8, 16, and 32 watts, plus an 8Ω bypass for direct-coupled amplifier connections.

Q: Can this speaker be installed in a plenum or air-handling ceiling space?

A: Yes. The FAP43T-WEGS is UL2043 listed, which qualifies it for use in air-handling spaces (plenum ceilings) as required by the National Electrical Code.

Q: What ceiling materials and thicknesses does the Safety First Mounting System support?

A: The SFMS t-handle design accommodates ceiling materials from thin sheet metal up to 3/4" thick, including standard drop-tile and drywall ceilings.

Q: How do I set the transformer tap during installation?

A: The front-mounted tap selector is accessible from below the ceiling. No removal of the speaker is required to change tap settings.

Q: What connector type is used for wiring?

A: A removable 4-pole euro-style (phoenix) connector is used. This allows pre-wiring before speaker installation and supports daisy chaining to additional speakers and subwoofers.

Q: What is the difference between the FAP43T-W and the FAP43T-WEGS?

A: The FAP43T-W includes a standard round-edge grille. The FAP43T-WEGS includes a square white edgeless grille for a cleaner flush appearance in contemporary ceilings.

Q: What warranty does this product carry?

A: AtlasIED provides a 60-month (5-year) warranty from the date of purchase.
