Atlas Sound FAP43T-W – 4.5" Coaxial In-Ceiling Speaker 70V/100V Pair White

Product Overview

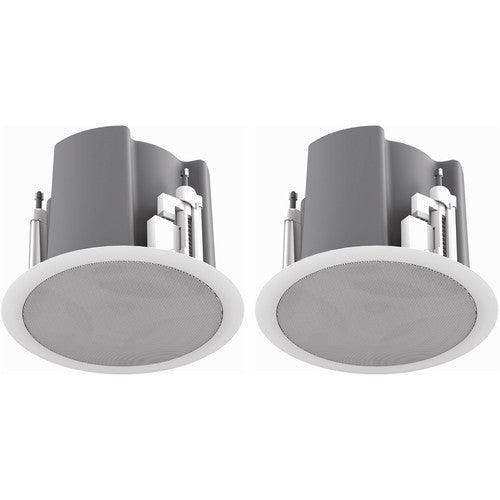

The Atlas Sound FAP43T-W is a 4.5" coaxial in-ceiling speaker with a 32-watt 70V/100V transformer, tuned ported enclosure, and Safety First Mounting System, sold as a pair with white round-edge grilles. Part of the AtlasIED Strategy III Series, this 70-volt commercial in-ceiling speaker is designed for retail stores, restaurants, hotels, convention centers, and corporate spaces where high speech intelligibility, wide coverage, and fast installation are required. Long-tail applications include 70-volt in-ceiling speakers for commercial distributed audio, UL1480A and UL2043 listed in-ceiling speakers for plenum ceilings, and Strategy III Series ceiling speakers for background music and paging systems.

Product Description

The FAP43T-W uses a coaxial driver design with an improved waveguide that delivers 130° dispersion, providing wider coverage per speaker than previous models. The wider coverage reduces the total number of speakers needed in a given space while maintaining uniform sound. The Safety First Mounting System (SFMS) uses integrated t-handles to tighten mounting tabs without tools, reducing installation time by up to 60% and eliminating the risk of over-torque damage to mounting tabs. A 4-pole detachable phoenix-style (euro) connector simplifies pre-wiring and supports daisy chaining to adjacent speakers and subwoofers. A front-mounted 70V tap selector provides access to 4, 8, 16, and 32-watt taps plus an 8Ω bypass for direct-coupled amplifier connections, without ceiling removal. A low-frequency tuning port enhances bass definition down to 90Hz. Grilles are press-fit for a clean look in contemporary ceilings and are paintable. The FAP43T-W ships without metal screws in the dogleg assembly, preventing corrosion in humid environments. UL1480A and UL2043 listed; CE marked; IP 21 rated; 60-month warranty. Sold as a pair (2 speakers per order).

Key Features

• 130° Dispersion — Wider coverage than previous models reduces speaker count per installation while maintaining even sound distribution.
• Safety First Mounting System (SFMS) — Tool-free t-handle installation reduces install time by up to 60%; prevents over-torque damage to mounting tabs.

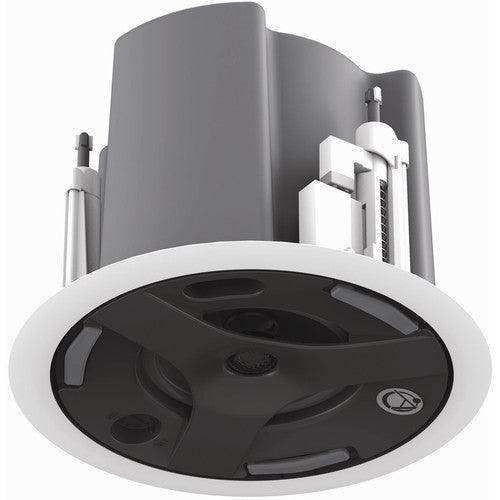

• 32-Watt 70V/100V Transformer — Front-accessible tap selector for 4, 8, 16, 32W taps and 8Ω bypass without ceiling removal.
• Tuned Ported Enclosure — Optimized low-frequency port delivers bass response down to 90Hz.
• 4-Pole Detachable Phoenix Connector — Supports pre-wiring and daisy chaining of multiple speakers and subwoofers on a single run.
• Low Insertion Loss Transformer — Enhanced 70.7V/100V internal transformer minimizes signal insertion loss across taps.
• Corrosion-Free Dogleg Assembly — No metal screws in mounting tab hardware; suitable for humid and high-moisture environments.
• Press-Fit Grille — Clean, low-profile grille fit; paintable for custom finishes.
• UL1480A & UL2043 Listed — Certified for fire alarm applications and air-handling space (plenum) installations.
• IP 21 Rated — Protected against vertically dripping water; suitable for areas with incidental moisture.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Multi-purpose room
• Training room
• House of worship
• All-hands room

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the FAP43T-W and the FAP43T-WEGS?

A: Both speakers are identical in performance. The FAP43T-W includes a standard round-edge white grille (press-fit). The FAP43T-WEGS includes a square white edgeless grille for a flatter, more contemporary look in modern ceilings.

Q: Is the FAP43T-W listed for plenum ceiling installations?

A: Yes. The FAP43T-W carries UL2043 listing, qualifying it for installation in air-handling spaces (plenum ceilings) as required by applicable electrical codes.

Q: How does the Safety First Mounting System work?

A: The SFMS uses t-handles integrated into the front of the speaker baffle to tighten the mounting tabs. No tools are required. The design accommodates ceiling materials from thin sheet metal to 3/4" thick drywall or tile, and it prevents over-torque damage that can occur with conventional screw-based dogleg systems.

Q: Does the FAP43T-W work with 100V systems in addition to 70V?

A: Yes. The internal transformer supports both 70.7V and 100V distributed audio systems.

Q: How do I access the tap selector after installation?

A: The front-mounted tap selector is accessible from below the ceiling tile without removing the speaker from the ceiling.

Q: What connector does this speaker use?

A: The FAP43T-W uses a removable 4-pole euro-style (phoenix) connector, which supports pre-wiring before ceiling installation and allows daisy chaining to adjacent speakers or subwoofers.

Q: What warranty applies?

A: AtlasIED covers the FAP43T-W with a 60-month (5-year) warranty from the date of purchase.
