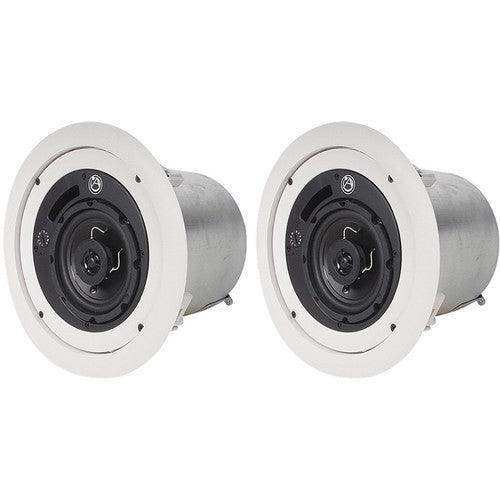

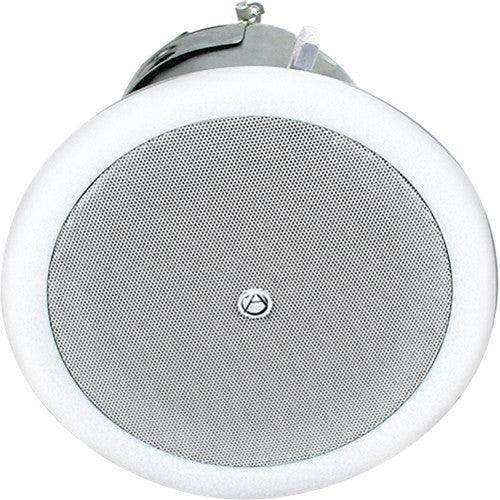

Atlas Sound FAP42T-UL2043 – 4" Shallow In-Ceiling Speaker 70V UL2043 (Pair, White)

Product Overview

The Atlas Sound FAP42T-UL2043 is a 4-inch shallow-mount coaxial in-ceiling speaker rated for true plenum (UL2043) air-handling spaces, sold and priced in pairs. With an overall depth of only 4 inches and a 130-degree dispersion pattern, this shallow-mount ceiling speaker is the preferred solution for plenum installations where vertical clearance is limited — including drop tile ceilings with minimal above-ceiling depth and stud wall applications for tanning salons or surround sound systems. A 16-watt 70.7V/100V transformer with front-mounted tap selector and 8-ohm bypass provides full system configuration flexibility.

Product Description

The FAP42T-UL2043 is part of AtlasIED's FAP Strategy series and meets the requirements of UL 2043 for plenum air-handling space use, in addition to UL 1480. The 4-inch polypropylene cone driver is paired with a 3/4-inch PEI tweeter and precision crossover for smooth, even frequency response from 75 Hz to 20 kHz. The 130-degree dispersion ensures wide, uniform audience coverage even with a compact 4-inch driver, making it appropriate for low-ceiling environments or spaces where larger speakers cannot be accommodated. The driver assembly reaches only 4 inches deep above the ceiling plane, fitting in most stud-wall cavities for flush wall installations. Input wiring uses a simplified 4-pole Phoenix connector for easy daisy-chaining between speakers. A combination 1/2" and 3/4" knockout cover simplifies conduit runs. The AtlasIED C-ring/V-rail mounting system is included, supporting both drop tile and existing construction drywall installation without special tools; for new construction drywall, the optional FAP42-TR rough-in bracket is recommended. Press-fit grilles provide a clean finished appearance consistent with contemporary architecture. The 70.7V/100V transformer is enhanced quality to minimize insertion loss and maintain low-frequency response, with available taps via the front-mounted selector switch. A transformer bypass is accessible at the front for 8-ohm direct operation. Backed by AtlasIED with UL1480 and UL2043 dual certification.

Key Features

• UL2043 Plenum Rated — Dual UL1480/UL2043 certification qualifies for true plenum air-handling space deployment.
• 4" Shallow Mount Design — 100mm (4") depth fits in limited above-ceiling and stud wall spaces where standard-depth speakers cannot be used.
• 130° Dispersion — Wide coverage angle delivers uniform SPL across the listening area from a compact 4" driver.
• 16W 70.7V/100V Transformer — Enhanced-quality transformer minimizes insertion loss; front-mounted tap selector for in-place system tuning.
• 8Ω Bypass — Front-accessible transformer bypass enables direct 8-ohm operation without removing the speaker.
• C-Ring/V-Rail Mounting — Included mounting hardware supports drop tile and existing construction drywall installations.
• 4-Pole Phoenix Connector — Simplifies daisy-chaining and pre-wiring during installation.
• Sold as Pair — Both speakers included; priced per pair.

Typical Applications

• Plenum-rated ceiling installations in conference rooms and huddle rooms
• Shallow ceiling spaces in commercial meeting rooms and boardrooms
• Multi-purpose rooms and training rooms with limited above-ceiling depth
• Stud wall installations in tanning salons, wellness facilities, and surround sound applications
• Government and institutional spaces requiring UL2043 compliance
• House of worship fill zones with height-restricted plenum cavities

Technical Specifications

Frequently Asked Questions

Q: Is the FAP42T-UL2043 approved for true plenum installations?

A: Yes. It carries both UL1480 and UL2043 certifications, qualifying it for installation in true plenum air-handling spaces.

Q: Are these sold individually or as a pair?

A: The FAP42T-UL2043 is sold and priced as a pair. Each package contains two speakers.

Q: Can this speaker fit in a standard stud wall cavity?

A: Yes. The 4" shallow depth is designed to fit in most standard stud wall cavities for flush wall installations in tanning salons and surround sound applications.

Q: How do I adjust the 70V tap on this speaker?

A: A front-mounted tap selector switch allows system tuning adjustments without removing the speaker from the ceiling.

Q: What mounting hardware is included?

A: The C-ring/V-rail tile bridge and dogleg mounting system are included. For new construction drywall, the optional FAP42-TR rough-in bracket is available separately.

Q: What transformer wattage taps are available?

A: The transformer provides 16W at full tap on 70.7V/100V, with stepped tap positions selectable via the front-mounted switch. The 8-ohm bypass is also front-accessible.
