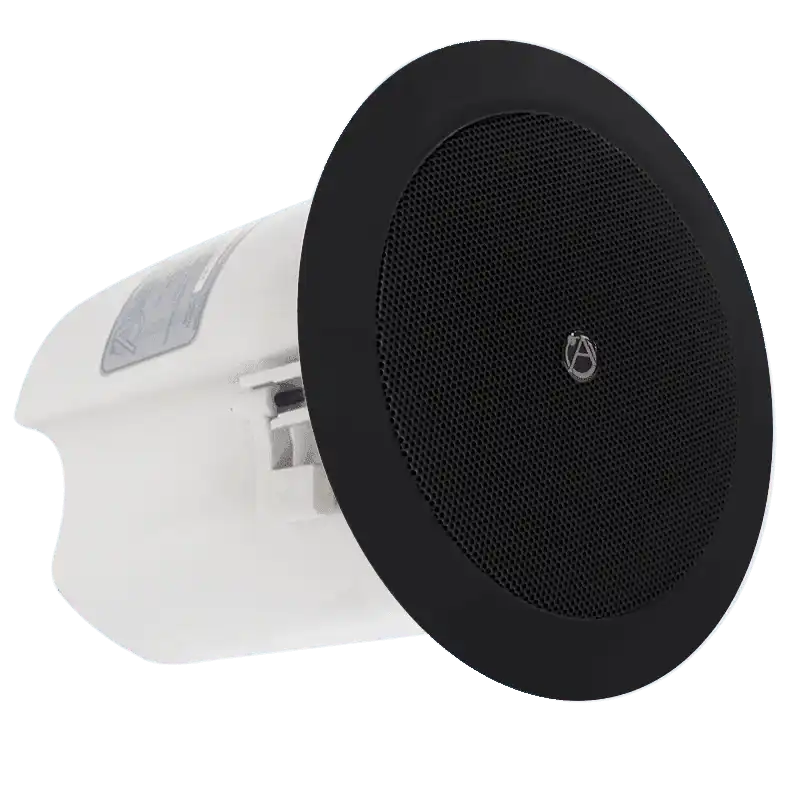

Atlas Sound FAP40T-B – 4" In-Ceiling Speaker with 70V/100V Transformer, Black Pair
Atlas Sound FAP40T-B – 4" In-Ceiling Speaker with 70V/100V Transformer, Black Pair is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound FAP40T-B – 4" In-Ceiling Speaker with 70V/100V Tra...
Product Overview
The Atlas Sound FAP40T-B is a 4-inch in-ceiling loudspeaker with an integrated 16-watt 70.7V/100V transformer, sold as a pair in black finish. Designed for commercial, institutional, and industrial distributed audio systems, it delivers high-intelligibility voice and music reproduction from a compact, low-profile enclosure. The FAP40T-B fits 70-volt paging and background music systems and meets UL 1480 safety standards.
Product Description

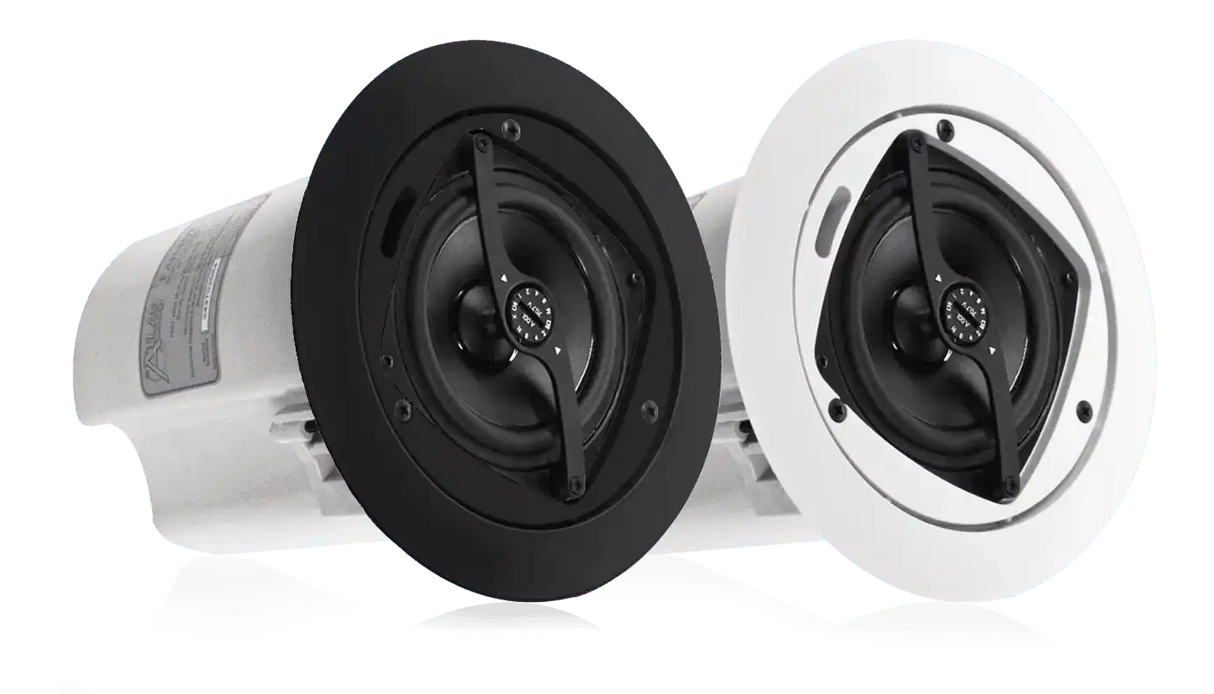

The FAP40T-B uses a 4-inch polypropylene single-cone driver paired with a unique tap selector switch that also functions as a diffuser cone, smoothing high-frequency dispersion across a 130-degree coverage angle. This design produces a natural high-frequency response that rivals coaxial drivers without the added complexity. A tuned, ported enclosure extends low-frequency response below what a sealed back-box design can achieve. The 16-watt internal transformer offers taps at 1, 2, 4, 8, and 16 watts, plus an 8-ohm bypass for direct amplifier connections. A two-pole terminal strip with removable metal cover simplifies field wiring and supports daisy-chain runs to additional FAP40T units or FASUB70 subwoofers. The press-fit grille integrates cleanly into contemporary drywall or tile ceilings. A tile bridge is included for suspended ceiling grid installations. Lightweight construction eliminates the need for supplemental drywall support hardware.
Key Features
- 16-Watt Internal 70.7V/100V Transformer — Five power taps (1, 2, 4, 8, 16W) plus 8-ohm bypass for system flexibility.
- Tap Selector / Diffuser Cone Design — The tap knob doubles as a diffuser for smooth, wide-coverage high-frequency dispersion.
- Tuned & Ported Enclosure — Extended low-frequency response compared to sealed designs; pairs with FASUB70 subwoofers.
- 130° Dispersion — Wide coverage angle reduces the number of units required per room.

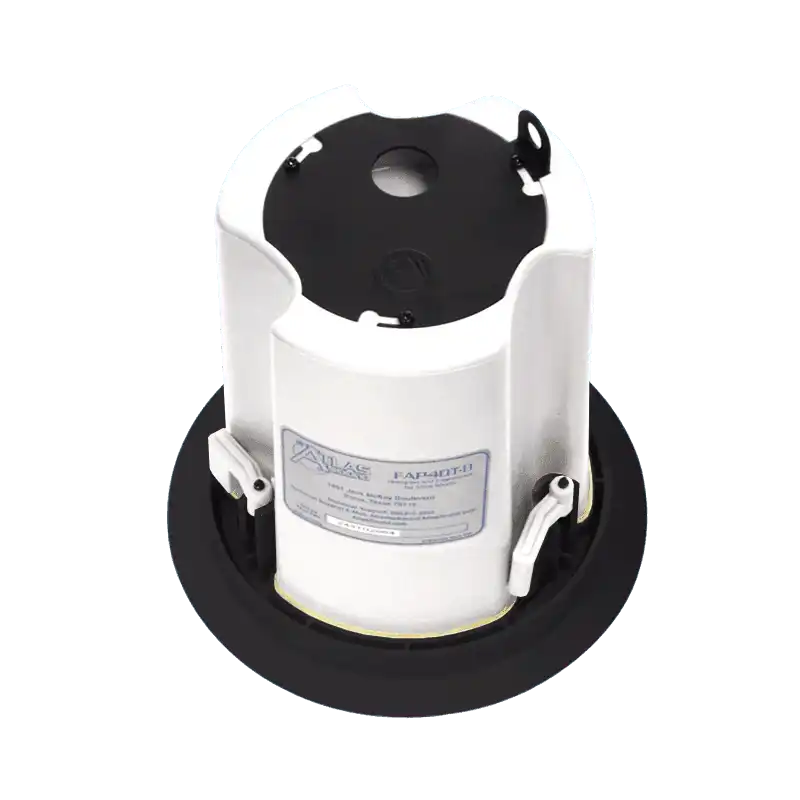

- Low-Profile Injection-Molded Enclosure — Lightweight construction; no supplemental ceiling support required.
- Press-Fit Grille — Tool-free installation; blends with contemporary ceiling aesthetics.
- Tile Bridge Included — Supports installation in suspended ceiling grid systems.
- UL 1480 Listed, CE Marked — Meets commercial and institutional safety listing requirements.
- Daisy-Chain Wiring Support — Two-pole terminal strip allows in/out wiring to multiple speakers on one run.
- Sold as a Pair, Black Finish — Matched pair for symmetrical installations in commercial spaces.
Technical Specifications
| Specification | Value |
|---|---|
| Speaker Type | Single Cone |
| Power Taps | 1, 2, 4, 8, 16 Watts & 8Ω |
| Sensitivity | 87 dB Average |
| Frequency Response | 100 Hz – 12 kHz |
| Dispersion | 130° |
| Depth | 7 1/8" (18.10 cm) |
| Diameter | 7 3/8" (18.73 cm) |
| Shipping Weight (pair) | 8.50 lbs (3.86 kg) |
| Safety Listing | UL 1480 |
| Finish | Black |
| Warranty | 60 months from date of purchase |
