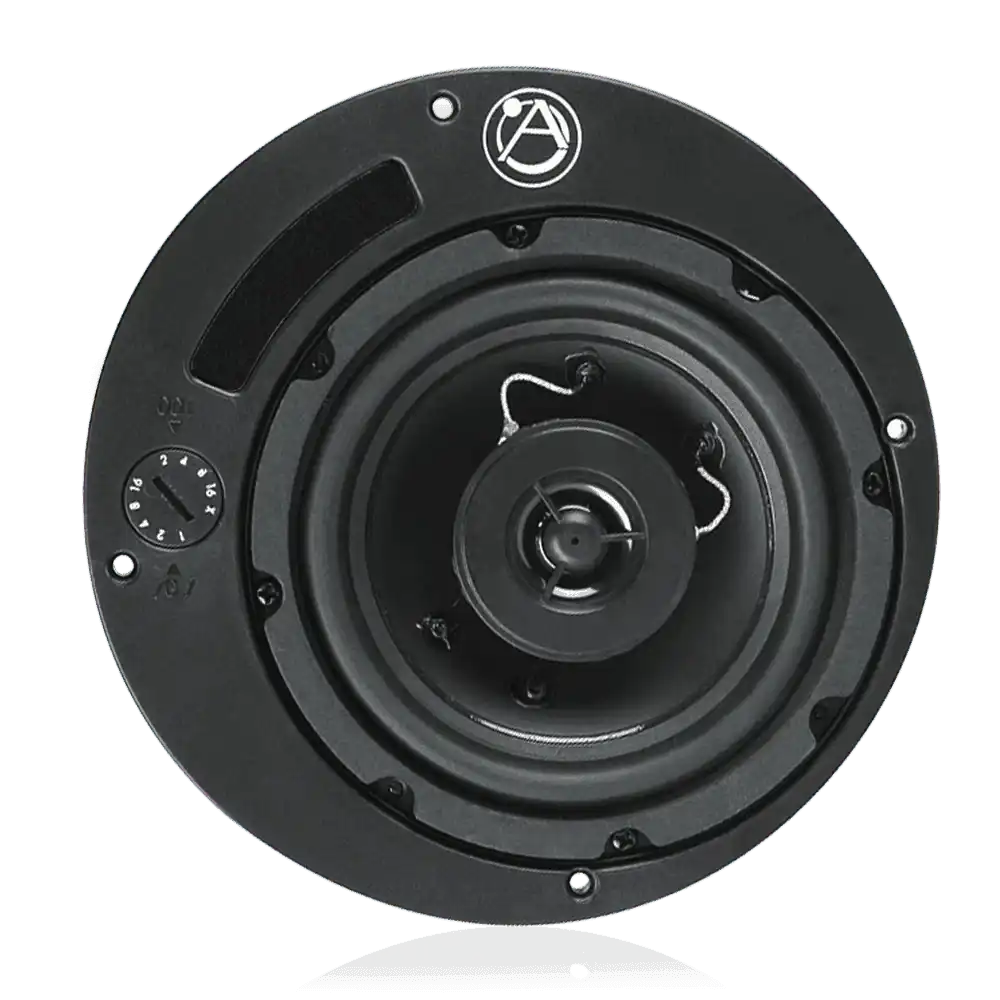

Atlas Sound FA42T-6MB – 4" In-Ceiling Coaxial Speaker Motorboard 16W 70V

Product Overview

The Atlas Sound FA42T-6MB is a 4-inch coaxial in-ceiling speaker motorboard assembly with a 16-watt 70.7V/100V transformer, engineered to install into standard Atlas Strategy Series 6-inch enclosures. This motorboard format is specifically designed for division-of-labor installations where enclosures are set in place during rough construction before speakers and transformers are wired in a later phase. The FA42T-6MB carries a UL1480 listing for general signaling applications.

Product Description

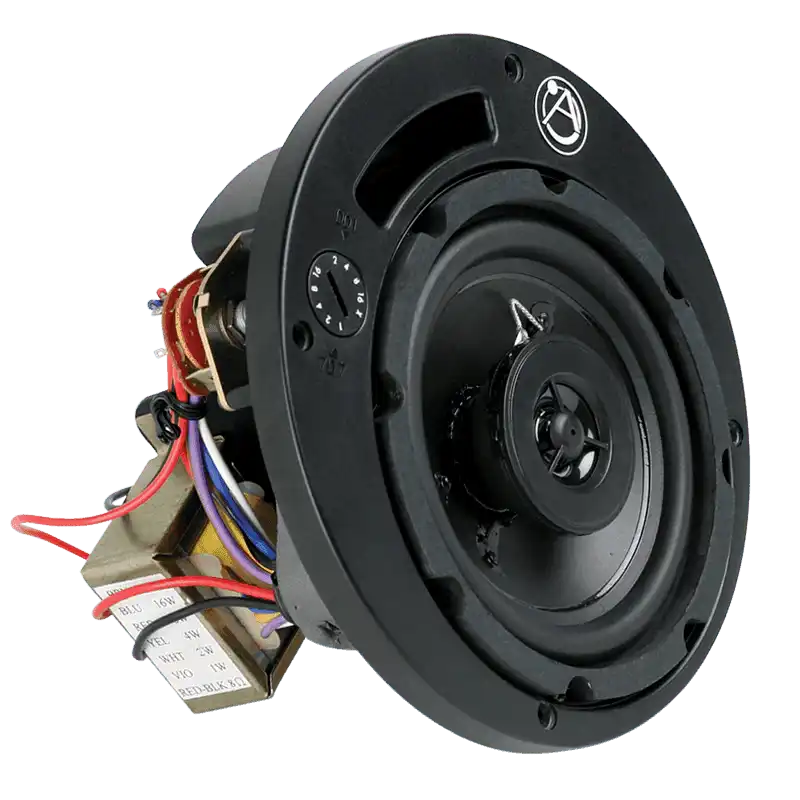

The FA42T-6MB uses the same bolt-hole pattern and footprint as a standard 6-inch FA series speaker component, allowing the 4-inch coaxial driver assembly to drop directly into FA97-6 and FA95-6 Strategy Series back boxes without modification. A tuned port in the motorboard assembly maximizes low-frequency output from these enclosures, compensating for the smaller driver diameter. The onboard 70.7V/100V transformer is designed to minimize insertion loss and maintain low-frequency response, particularly at higher power tap settings where inferior transformers typically compress bass reproduction. A front-mounted tap selector switch provides access to five power taps (1W, 2W, 4W, 8W, and 16W) without requiring access to the back of the enclosure, making system tuning straightforward after installation. Sensitivity is rated at 88dB average, and the 130-degree dispersion pattern provides wide coverage from each ceiling position. The coaxial driver configuration delivers voice and music reproduction from a single cone and tweeter assembly, keeping the ceiling cutout consistent with other 6-inch Strategy Series installations. UL1480 file UEAY.S1824 certifies the assembly for general signaling use.

Key Features

• Fits 6" Strategy Series Enclosures — Same footprint and bolt-hole pattern as standard FA136T components for drop-in compatibility.
• Division-of-Labor Design — Enclosures install during rough-in; speakers and transformers wire in during trim-out phase.
• 16W 70.7V/100V Transformer — Low-insertion-loss design preserves low-frequency response at all tap settings.
• Front-Mounted Tap Selector — Five power taps (1W–16W) accessible from the front without disturbing the ceiling or enclosure.
• Tuned Port — Optimizes bass output from FA97-6 and FA95-6 enclosures.
• 130° Dispersion — Wide coverage reduces the number of ceiling positions needed per zone.
• UL1480 Listed — Certified for general signaling, file UEAY.S1824.
• 4Ω/8Ω Capable — Supports both low-impedance and 70V distributed wiring configurations.
