Product Overview

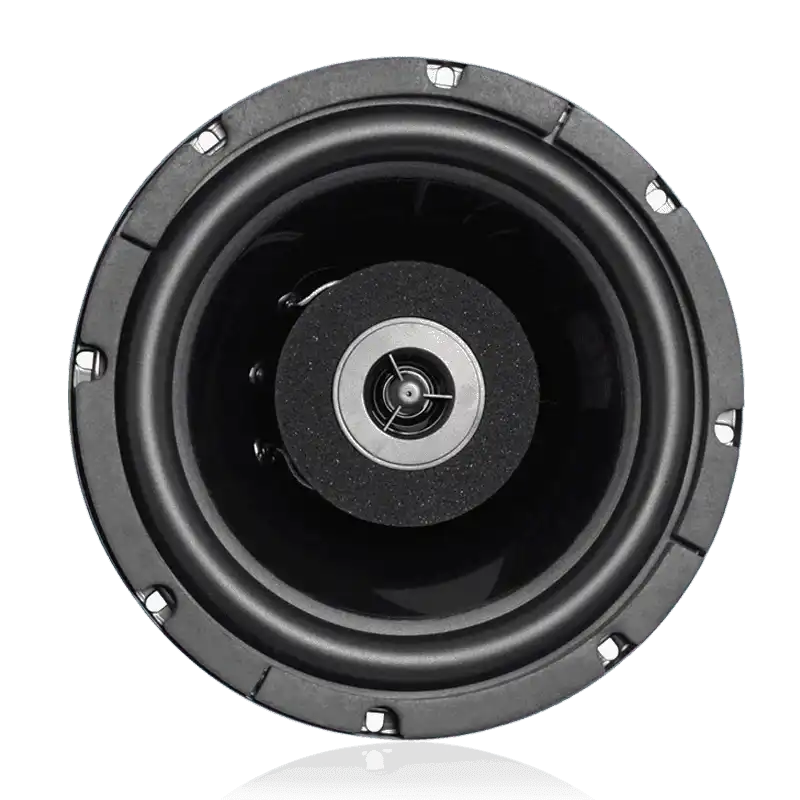

The Atlas Sound FA138T327 is a premium 8" coaxial in-ceiling loudspeaker with a factory-installed 32-watt 70.7V line-matching transformer, designed for distributed audio and commercial paging systems. It delivers a frequency response of 75 Hz to 20 kHz with a 110° dispersion pattern and 89.5 dB average sensitivity, making it well-suited for retail spaces, hospitality venues, and corporate installations. The FA138 series is noted for its Kevlar-reinforced cone woofer, built-in crossover, and front-loading installation that simplifies service access in suspended ceiling systems.
Product Description
The FA138T327 combines Atlas Sound’s FA138 premium coaxial driver with a 32-watt 70.7V transformer, offering three power tap settings (8W, 16W, and 32W) for flexible 70-volt system zoning. The speaker utilizes a Kevlar fiber-reinforced polypropylene cone woofer mated to a custom butyl rubber surround and a 1-1/2" vented Kapton voice coil, providing clean, controlled bass response. A tapered backplate increases magnetic circuit efficiency, while a 21 oz. magnet assembly and 1.2" mylar dome ferro-fluid tweeter deliver extended high-frequency reproduction up to 20 kHz. An onboard circuit board-mounted high-pass/low-pass crossover network optimizes driver integration. The coaxial architecture provides a 110° wide dispersion pattern, reducing the number of speakers required for even coverage in open-plan ceilings. The unit front-loads into Atlas Sound acoustically matched enclosures, plaster rings, or trim rings, and the patented installation system eliminates the need for separate mounting hardware in many applications. Optional system components include acoustic enclosures, tile bridges, plaster rings, and hardware-free grilles. Weather-resistant driver materials extend the FA138’s serviceable life in high-humidity environments such as natatoriums or commercial kitchens when used with appropriate enclosures.
Key Features
- 32-Watt 70.7V Transformer — Three power taps (8, 16, 32W) for flexible 70V system design.
- Kevlar Fiber-Reinforced Cone — Polypropylene woofer with butyl rubber surround for durable, accurate bass response.
- 1.2" Mylar Dome Ferro-Fluid Tweeter — Extended high-frequency reproduction up to 20 kHz with thermal protection.
- Built-In Crossover Network — Circuit board-mounted high-pass/low-pass crossover for optimized driver integration.
- Tapered Backplate — Increases magnetic circuit efficiency for improved sensitivity.
- 110° Dispersion Pattern — Wide coverage reduces fixture count in open-plan installations.
- Front-Loading Patented Design — Simplified access for service and replacement without ceiling demolition.
- 75 Hz – 20 kHz Frequency Response — Full-range performance suitable for music and voice reproduction.
- Weather-Resistant Components — Suitable for high-humidity commercial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Model | FA138T327 |
| Speaker Type | Coaxial (8" woofer + 1.2" dome tweeter) |
| Sensitivity | 89.5 dB Average, 93 dB Peak |
| Frequency Response | 75 Hz – 20 kHz |
| Transformer Voltage | 70.7V |
| Power Taps | 8, 16, and 32 Watts |
| Dispersion | 110° |
| Depth | 5 1/2" (13.97 cm) |
| Diameter | 8 1/4" (20.955 cm) |
| Shipping Weight | 8.00 lbs (3.63 kg) |
| Safety Listed | UL 1480 |
| Warranty | 60 months from date of purchase |
