Product Overview

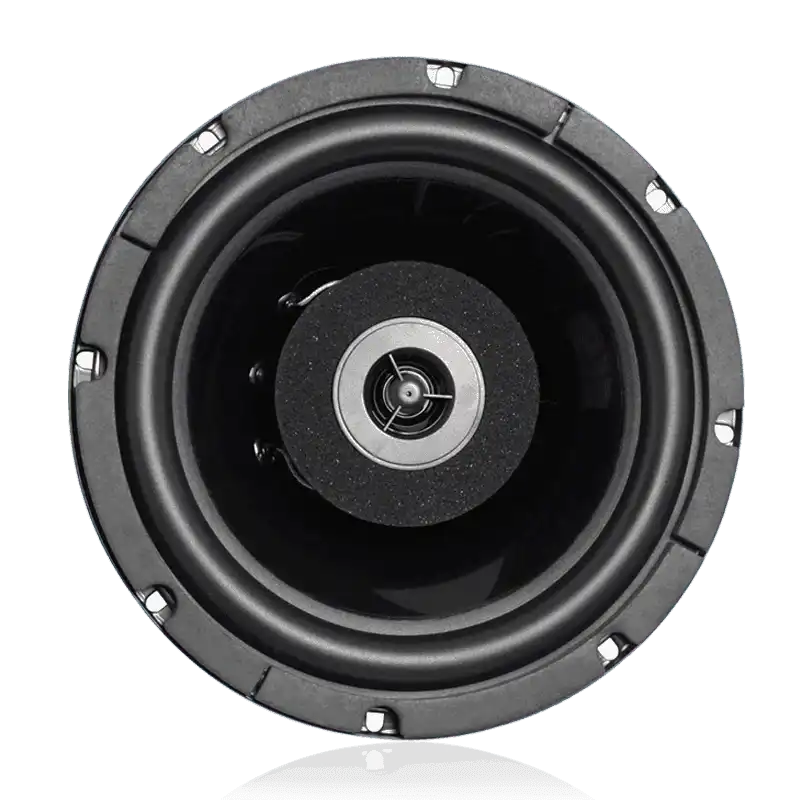

The Atlas Sound FA138T167 is a premium 8" coaxial in-ceiling loudspeaker with a factory-installed 16-watt 70.7V transformer, designed for commercial distributed audio installations requiring full-frequency response and high-fidelity reproduction. Part of the Strategy Series I system, it is engineered for use with Atlas Sound’s FA97-8 and FA95-8 series enclosures or the FAPR-8 plaster ring in limited-depth applications. The FA138T167 is UL1480 listed for general signaling applications.
Product Description
The FA138T167 features a reinforced polypropylene cone woofer with a custom butyl rubber surround, a 1 1/2" vented Kapton voice coil, a 21 oz. magnet, and a 1/2" mylar-dome ferrofluid-cooled tweeter for clean high-frequency reproduction. A circuit board-mounted high-pass/low-pass crossover network is included for proper driver integration without external crossover components. The integral 16-watt 70.7V transformer delivers a 40 Hz to 15 kHz frequency response (±1 dB) with selectable 4, 8, and 16-watt primary taps for zone-level adjustment in 70V distributed systems. The speaker’s 110° dispersion provides broad coverage for open ceiling plans. Average sensitivity is 89.5 dB with a 93 dB peak, suitable for voice and music reproduction in commercial spaces. The FA138T167 front-loads into Strategy Series enclosures using only a screwdriver to operate rotating clamps, simplifying ceiling installation. The baffle attachment uses three serrated push-on studs for tool-free grille installation. At 8 1/4" diameter and 5 3/4" depth, it fits standard commercial ceiling openings. Shipping weight is 7.42 lbs and the product carries a 60-month warranty.
Key Features
- 8" Coaxial Driver with Circuit Board Crossover — Integrated high-pass/low-pass crossover for optimized two-way performance.
- 16W 70.7V Transformer with 4, 8, 16W Taps — Flexible power selection for 70V distributed audio zone management.
- 40 Hz – 15 kHz Transformer Response (±1 dB) — Full-range coverage for both music and voice applications.
- 75 Hz – 20 kHz Speaker Response — Extended high-frequency performance from the ferrofluid-cooled tweeter.
- 110° Dispersion — Wide coverage for open-plan commercial ceiling installations.
- Reinforced Polypropylene Cone with Butyl Rubber Surround — Weather-resistant and durable for long-term installed service.
- 21 oz. Magnet — High motor strength for extended SPL capability in high-ceiling applications.
- Front-Loading Strategy Series Enclosure Compatibility — Installs with a screwdriver into FA97-8 or FA95-8 enclosures.
- UL1480 Listed — Safety listed for general signaling in commercial and institutional projects.
- 60-Month Warranty — Five-year coverage from date of purchase.
Technical Specifications
| Specification | Value |
|---|---|
| Speaker Type | Coaxial |
| Speaker Frequency Response | 75 Hz – 20 kHz |
| Transformer Frequency Response | 40 Hz – 15 kHz (±1 dB) |
| Sensitivity | 89.5 dB Average, 93 dB Peak |
| Power Taps | 4, 8, 16 Watts @ 70.7V |
| Dispersion | 110° |
| Diameter | 8 1/4" (20.955 cm) |
| Depth | 5 3/4" (14.605 cm) |
| Shipping Weight | 7.42 lbs (3.37 kgs) |
| Safety Listed | UL1480 |
| Warranty Period | 60 months from date of purchase |
