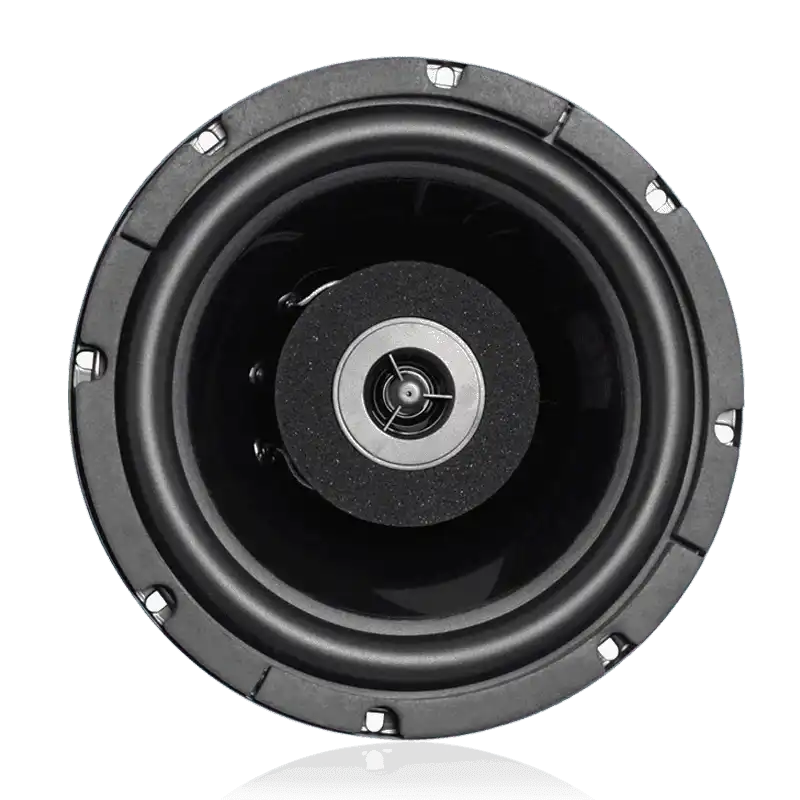

Atlas Sound FA138 – 8" Coaxial 100W 8-Ohm In-Ceiling Speaker

Product Overview

The Atlas Sound FA138 is a premium 8-inch coaxial in-ceiling speaker rated at 100 watts into 8 ohms, designed for commercial distributed audio applications requiring extended sound pressure levels. Its coaxial driver configuration delivers full-frequency response from a single ceiling cutout, making it well-suited for high-ceiling retail, hospitality, and institutional environments. The FA138 is UL listed to UL1480 and 2043 standards for general signaling and air handling applications.

Product Description

The FA138 employs a reinforced polypropylene cone woofer with a custom butyl rubber surround for long-term reliability in variable-humidity environments. The 1.5-inch vented Kapton voice coil handles 100 watts of continuous program material, while the 21-ounce ceramic magnet provides high magnetic flux for efficient conversion. High-frequency reproduction is handled by a 0.5-inch mylar-dome tweeter with ferrofluid cooling, which also contributes to weather resistance. An onboard circuit board-mounted crossover divides the signal between the woofer and tweeter for clean, balanced full-range output. Sensitivity is rated at 89.5dB average with a 93dB peak, and the 110-degree dispersion pattern provides broad coverage for high or vaulted ceiling installations. The FA138 front-loads into Atlas Strategy Series acoustically matched enclosures (FA97-8 at 0.22 ft³ with acoustic batting, or economy FA95-8 at 0.17 ft³), which install using rotating clamps without the need for a drill. Baffle options include push-on grilles with serrated studs for hardware-free attachment. For installations without enclosures, the FAPR-8 plaster ring provides a clean mounting solution in minimum-depth ceilings.

Key Features

• 100-Watt, 8-Ohm Coaxial Driver — Handles high-output applications in vaulted or high-ceiling spaces.
• Full-Frequency Coaxial Design — Woofer and tweeter aligned on the same axis for accurate stereo imaging and consistent coverage.
• Onboard Crossover Network — Circuit board-mounted high-pass/low-pass crossover for clean frequency separation.
• Butyl Rubber Surround — Maintains low-frequency compliance over time in variable-humidity environments.
• Ferrofluid-Cooled Tweeter — Improves thermal handling and adds moisture resistance to the high-frequency driver.
• 110° Dispersion — Broad coverage pattern reduces the number of speakers needed per zone.
• UL Listed UL1480/2043 — Certified for general signaling and air-handling space installations.
• Strategy Series Enclosure Compatible — Front-loads into FA97-8 and FA95-8 back boxes with screwdriver-only installation.

Technical Specifications
