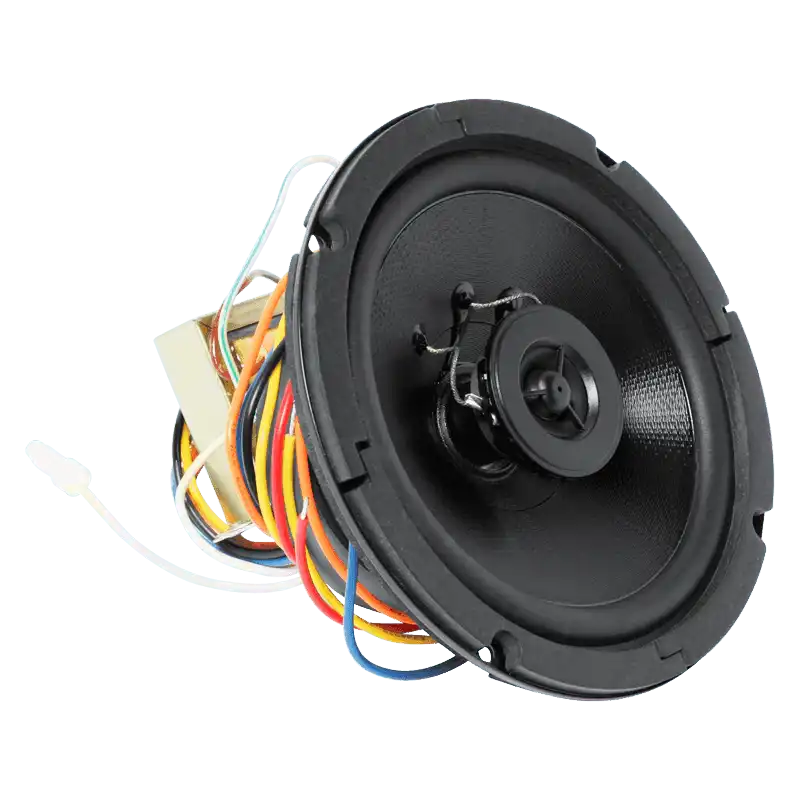

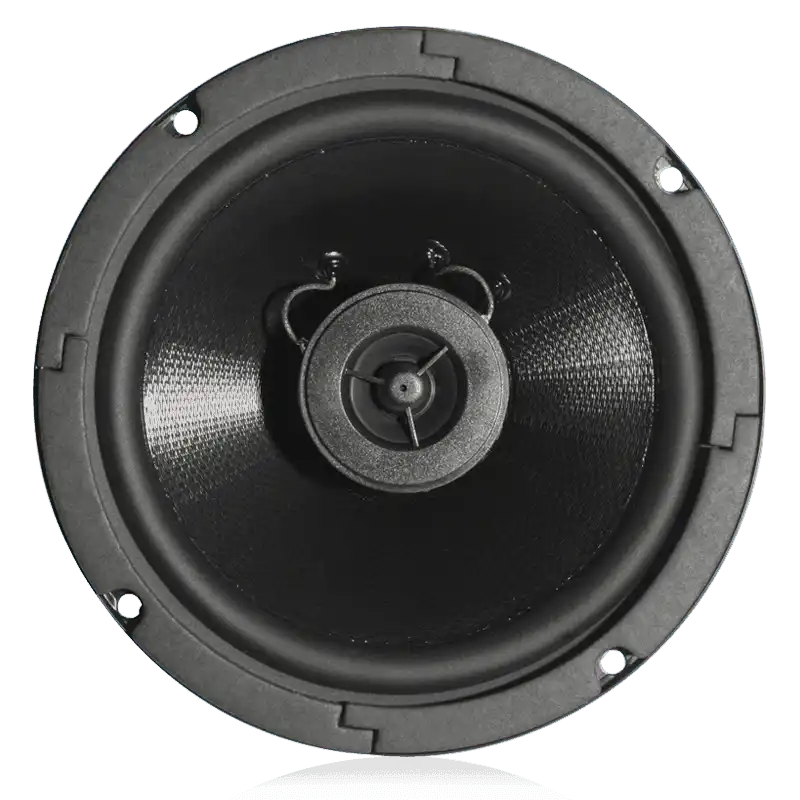

Atlas Sound FA136T87 – 6-Inch Coaxial In-Ceiling Speaker with 8W 70V Transformer

Product Overview

The Atlas Sound FA136T87 is a 6-inch coaxial in-ceiling loudspeaker with a factory-mounted 8-watt 70V transformer, part of the AtlasIED Strategy I Series. Rated at 50 watts with a frequency response of 80Hz to 20kHz and 130-degree dispersion, this UL Listed speaker delivers high-fidelity audio performance comparable to an 8-inch system from a compact 6-inch footprint. Featuring a polypropylene woofer, synthetic rubber surround, and post-mounted dome tweeter with ferrofluid-cooled voice coil, the FA136T87 is engineered for commercial background music, paging, and distributed audio installations.

Product Description

The FA136T87 (U.S. Patent #5206464) is a high-fidelity coaxial in-ceiling speaker engineered to deliver the acoustic output of a larger driver in a space-efficient 6-inch format. The patented coaxial design positions a post-mounted dome tweeter at the acoustic center of the woofer, producing a coherent, wide-dispersion sound field at 130 degrees for consistent coverage across conference rooms, classrooms, retail spaces, and open-plan offices. The reinforced polypropylene woofer cone and synthetic rubber surround provide structural integrity, effective damping, and moisture resistance for long-term reliability in variable climate environments. The mylar diaphragm dome tweeter uses a ferrofluid-cooled voice coil to maintain smooth high-frequency response and consistent power handling during extended operation. The 8-watt 70V transformer supports power tap settings at 1, 2, 4, and 8 watts for load management in multi-speaker 70V distribution systems. At 88dB average and 91dB peak sensitivity, the FA136T87 produces clear, audible output with standard commercial amplification. The Strategy I Series enclosure system supports installation with the FA97-6 high-performance back box (0.17 ft3 with acoustic batting) or the economy FA95-6 back box (0.14 ft3) for ceiling applications, with a rotating clamp system that requires only a screwdriver. The FAPR-6 plaster ring is available for shallow-depth installations without an enclosure. New construction ring model FA-TR6 serves as a pattern cut-out and marker for drywall applications. Grilles attach with push-on serrated studs. UL Listed to UL1480. CUL certified. A 60-month warranty applies from the date of purchase.

Key Features

• Coaxial Design (U.S. Patent #5206464) — Post-mounted dome tweeter at acoustic center for coherent, wide-dispersion sound.
• 130-Degree Dispersion — Broad coverage from a 6-inch driver, comparable to 8-inch system performance.
• 80Hz–20kHz Frequency Response — Full-range audio for background music and voice paging applications.
• Reinforced Polypropylene Woofer and Synthetic Rubber Surround — Moisture-resistant materials for reliable long-term performance.
• Ferrofluid-Cooled Tweeter Voice Coil — Consistent high-frequency response and power handling during extended operation.
• 8W 70V Transformer with Taps at 1, 2, 4, and 8W — Flexible load balancing for 70V distributed audio systems.
• Compatible with Strategy I Series Enclosures — Installs with FA97-6 or FA95-6 back boxes using a screwdriver-only rotating clamp.
• UL Listed to UL1480 / CUL Certified — Meets commercial fire safety requirements for in-ceiling installations.
