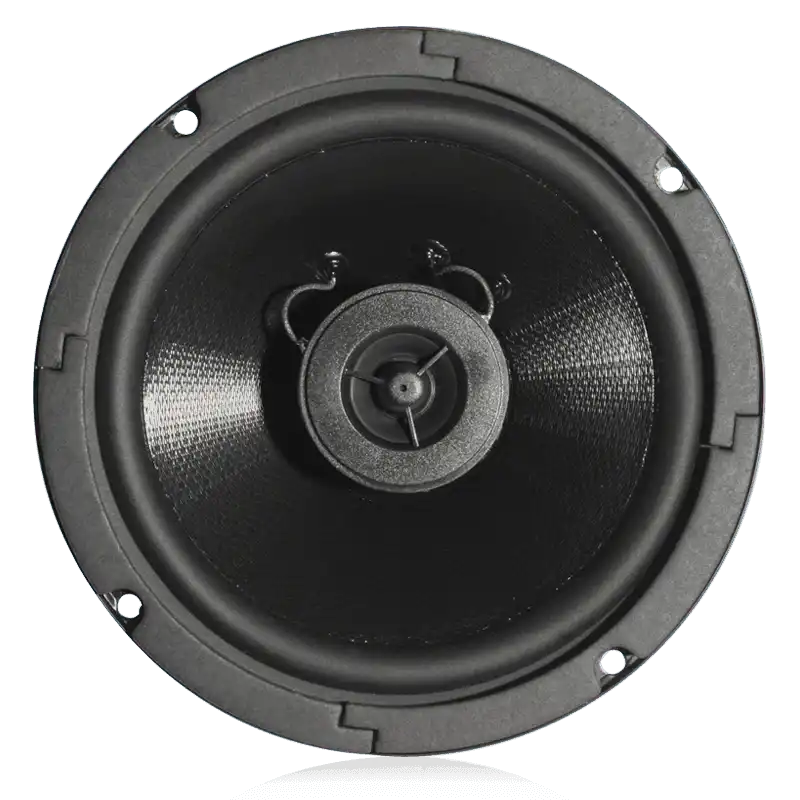

Atlas Sound FA136T47 – 6" Coaxial In-Ceiling Speaker with 4W 70V Transformer

Product Overview

The Atlas Sound FA136T47 is a UL-listed 6" coaxial in-ceiling loudspeaker with an integrated 4-watt 70V transformer, designed for commercial distributed audio systems in offices, retail spaces, healthcare facilities, and educational buildings. Delivering 50 watts of full-frequency audio with 130° dispersion, it achieves coverage comparable to an 8" system while maintaining a smaller footprint. The Kevlar-reinforced polypropylene woofer and mylar dome tweeter with ferro fluid cooling provide clear voice and music reproduction in 70V paging and background music applications.

Product Description

The FA136T47 is part of Atlas Sound's Strategy I Series and is engineered as a complete coaxial in-ceiling speaker system for 70V distributed audio installations. The 6" woofer cone is constructed from Kevlar fiber-reinforced polypropylene with a Norsorex synthetic rubber surround that provides structural integrity, effective damping, and weather resistance for installations in humid environments. A post-mounted dome tweeter with a mylar diaphragm and ferro fluid-cooled voice coil delivers smooth high-frequency response and capable power handling, reducing the risk of thermal distortion at higher volume levels. The coaxial design places the tweeter at the acoustic center of the woofer, producing 130° wide-angle dispersion that provides even coverage with fewer speakers than conventional systems require. The integrated 70V transformer includes power taps at 0.5, 1, 2, and 4 watts to allow precise volume level management across distributed zones. The FA136T47 is factory-engineered as a system with a matched acoustic enclosure, making it compatible with Atlas Sound transformer, tile bridge, plaster ring, and hardware-free grille accessories. The patented EZ-Mount loudspeaker mounting system reduces installation time. Safety listed to UL 1480 (UL Listed and cUL), the FA136T47 is appropriate for commercial and institutional construction projects that require verified fire and safety ratings. An optional hydrophobic treatment coating is available for installations in areas with elevated moisture exposure.

Key Features

• 50-Watt Coaxial 6" Driver — Delivers full-frequency audio from 80Hz to 20kHz with performance comparable to an 8" system.
• 130° Wide Dispersion — Broader coverage area allows fewer speaker placements per zone without sacrificing uniformity.
• Kevlar Fiber-Reinforced Woofer — Polypropylene cone with Norsorex rubber surround for structural durability and moisture resistance.
• Ferro Fluid-Cooled Dome Tweeter — Mylar diaphragm tweeter with ferro fluid voice coil cooling for smooth high-frequency response and extended power handling.
• Integrated 70V Transformer with Multi-Tap — Power taps at 0.5, 1, 2, and 4 watts for flexible zone-level control in distributed systems.
• UL 1480 Listed (UL and cUL) — Safety listed for commercial and institutional construction projects with code compliance requirements.
• Patented EZ-Mount System — Reduces installation time and effort compared to conventional mounting hardware.
• Acoustically Matched Enclosure Compatibility — Engineered as a system with Atlas Sound enclosures, tile bridges, plaster rings, and grilles.
• Optional Hydrophobic Coating — Available environmental treatment for installations in high-moisture environments.

Technical Specifications
