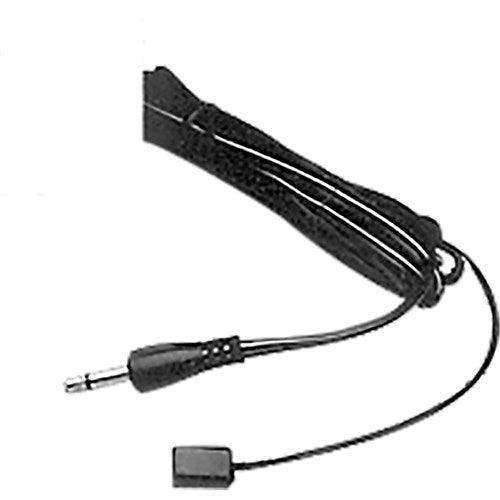

Atlas Sound F-1 – IR Flasher for Xantech Infrared Repeater Systems

Product Overview

The Atlas Sound F-1 is an infrared (IR) flasher designed for use with Xantech and compatible IR repeater systems in commercial AV installations. It delivers IR control signals to A/V components hidden inside cabinets, racks, or closets, extending remote control functionality to equipment that cannot receive a direct line-of-sight signal. The F-1 ships with an adhesive backing for surface mounting directly onto the IR receiver window of any controlled component. It connects to repeater distribution blocks via a standard 1/8" mini plug.

Product Description

The F-1 infrared flasher is the output emitter in an IR repeater system, translating electrical control signals back into infrared pulses that an A/V component's receiver can interpret. Each unit attaches directly to the IR sensor window of the target device using the included adhesive backing, providing reliable signal transfer without alignment concerns. Connection to the repeater system is made via a 1/8" (3.5mm) mini plug, compatible with the Atlas Sound M-1A repeater and similar distribution hardware. Up to four F-1 flashers can be connected to a single M-1A repeater using two M-1CB4B four-port connector blocks or equivalent adapters. In cases where an A/V component has a hardwired IR input port, the F-1 would not be required, as the control signal can be wired directly. The surface-mount style and 0.05 mA current draw make the F-1 unobtrusive and easy to integrate into any rack or cabinet IR distribution setup. The 60-month warranty reflects Atlas Sound's commitment to quality in infrastructure-level AV accessories.

Key Features

• IR Flasher Output Emitter — Converts repeater output signal into infrared pulses recognized by A/V component receivers.
• Adhesive Backing Included — Mounts directly onto the IR sensor window of the target device for reliable signal delivery.
• 1/8" Mini Plug Connection — Standard connector compatible with Atlas Sound M-1A repeaters and most IR distribution blocks.
• Multi-Zone Capability — Up to four F-1 units can be driven from a single M-1A repeater using M-1CB4B connector blocks.
• Ultra-Low Current Draw — 0.05 mA consumption has negligible impact on repeater system power budget.
• Surface Mount Style — Low-profile form factor installs discreetly inside cabinets or behind rack equipment.
• 60-Month Warranty — Extended warranty for long-term deployment in installed AV systems.
