Atlas Sound ECS-KSW6 – Remote Key-Switch Control Panel for ECS-6RM
Product Overview
The Atlas Sound ECS-KSW6 is a single-gang remote control panel designed for use with the ECS-6RM power sequencer system controller. It provides remote activation and per-channel status monitoring of the ECS-6RM from locations up to several hundred feet away, using standard CAT5 cable with an RJ45 connector. A keyed on/off switch limits access for security-sensitive installations. The ECS-KSW6 is suited for AV system control rooms, reception desks, and any location where remote rack power sequencing control is required.
Product Description

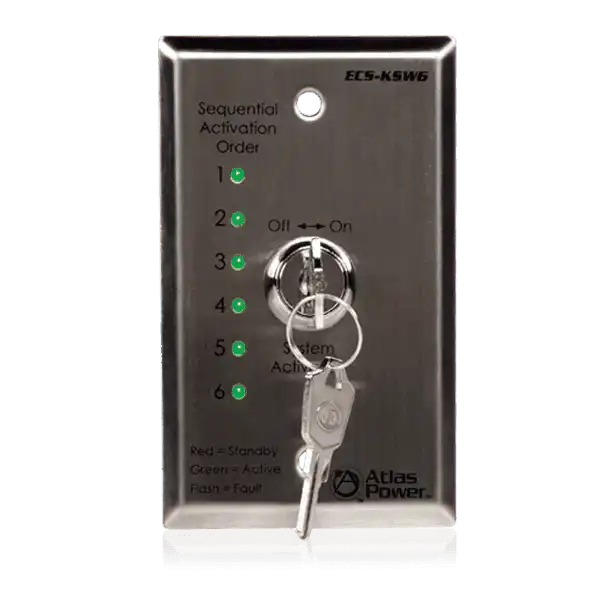

The ECS-KSW6 mounts in a standard single-gang electrical box and interfaces with the ECS-6RM via an 8-conductor RJ45 connection. Six bi-color LEDs on the panel correspond to each of the six sequenced power channels on the ECS-6RM, mirroring the channel activation LEDs on the front of the controller and providing real-time power status at the remote location. The keyed on/off switch allows facility managers or designated personnel to control system power without providing unrestricted access to the main rack. The brushed stainless steel silver finish integrates cleanly into commercial architectural environments. Wiring is straightforward: run a CAT5 cable from the ECS-KSW6 location back to the ECS-6RM controller. Dimensions are 4.5" H x 2.75" W, weighing 0.25 lbs. Warranted for 12 months from purchase.
Key Features
- 6 Bi-Color LEDs — One per ECS-6RM channel; mirrors the channel activation status displayed on the main controller.
- Keyed On/Off Switch — Restricts system control access to authorized personnel.
- Remote Operation up to Several Hundred Feet — CAT5 cable with RJ45 connector enables flexible placement away from the main rack.
- Single-Gang Form Factor — Mounts in a standard single-gang electrical box for clean wall installation.
- Brushed Stainless Steel Finish — Contemporary silver appearance compatible with commercial interiors.
- Standard CAT5 Wiring — Straightforward installation using common low-voltage cabling infrastructure.
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Controller | ECS-6RM |
| Connector Type | RJ45 (8-conductor) |
| Recommended Cable | CAT5 |
| LED Indicators | 6 Bi-Color LEDs (one per ECS-6RM channel) |
| Height | 4.5" (114.3mm) |
| Width | 2.75" (69.85mm) |
| Weight | 0.25 lbs (0.5kg) |
| Finish | Silver Brushed Stainless Steel |
| Warranty | 12 months from date of purchase |
