Atlas Sound ECS-6RM AC Sequence Controller and Monitor

Product Overview

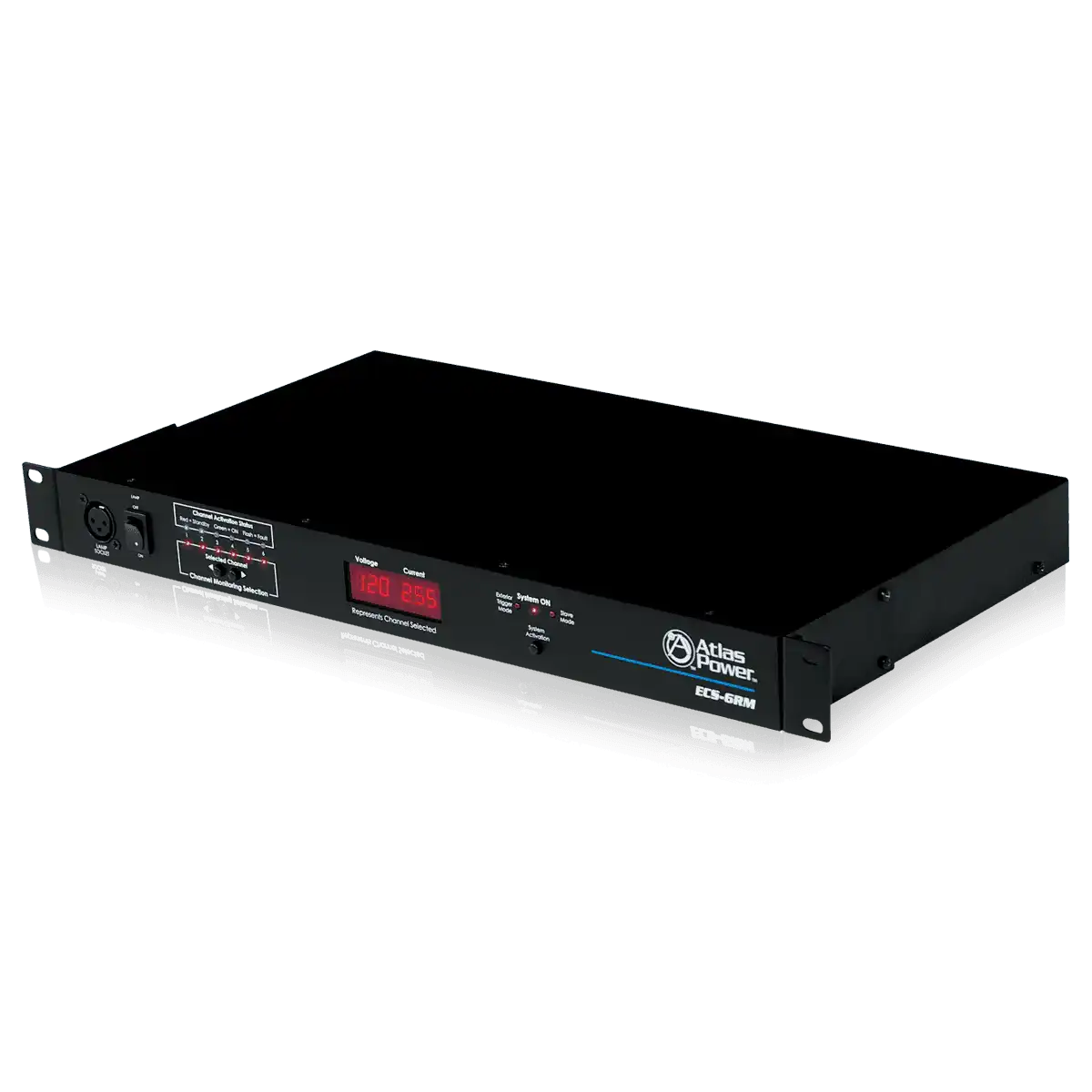

The Atlas Sound ECS-6RM is a rack-mounted AC power sequence controller and monitor that brings ordered power-up and power-down to commercial AV equipment racks. Sequenced activation protects amplifiers, DSPs, and source gear from inrush current and turn-on transients, a core requirement in professional AV system integration. The 1RU controller manages six independent sequential timing sections, monitors up to six 20A AC mains lines with front-panel voltage and current metering, and supports remote activation from up to 1,000 feet away. For integrators standardizing rack power management across houses of worship, government facilities, and auditoriums, the ECS-6RM is the control hub of the modular AtlasIED ECS power distribution system.

Product Description

The ECS-6RM modular system is designed to meet most installation requirements for AC power distribution, equipment power conditioning, and surge suppression protection in commercial AV deployments. Its six sequential timing sections fire at selectable 1, 3, or 6 second intervals and can be activated locally at the unit or remotely. Up to three ECS-6RM controllers can be daisy-chained with independent trigger timing, scaling the system to 18 sequence-triggered outlets across a large equipment rack installation. The ECS-6RM is the activation controller and monitor portion of the system; each triggered output requires a 120V AC mains ECM (Electrical Controlled Module), and a variety of remote ECM modules are available to match different rack power distribution requirements. On the monitoring side, the unit watches up to six independent 20A AC mains lines, displaying both voltage and current on laboratory-grade front-panel digital meters, and its built-in intelligence flags potentially damaging AC line voltages before they reach connected equipment.

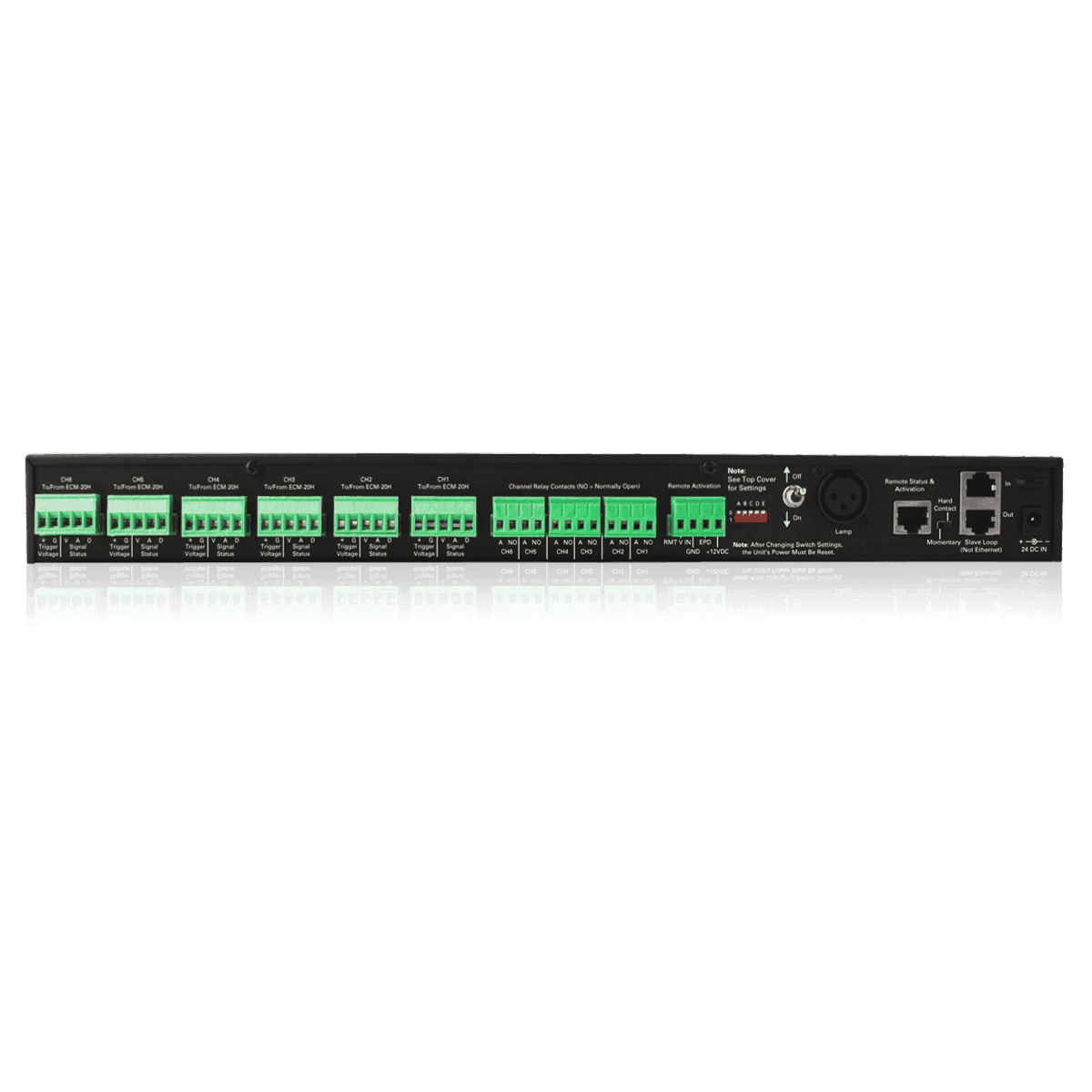

Six sequenced independent relay contacts operate in parallel with the corresponding ECM triggered outputs, giving system designers dry-contact integration points for control processors and third-party automation. Activation options include the front-panel momentary switch, a 5–24VDC remote voltage input, an external switch, or the optional ECS-KSW6 remote key switch, which can be located up to 1,000 feet from the controller and indicates ECM activation status and fault conditions on all six channels. Front and rear XLR connectors supply 12VDC for an optional AP-GNL18 gooseneck rack lamp. Pair the ECS-6RM with AtlasIED power conditioning and rack accessories available in our AtlasIED collection at Creation Networks.

Key Features

• Six Sequencer Timing Sections — Selectable 1, 3, or 6 second intervals stage equipment power-up to eliminate damaging inrush surges.
• Six Independent ECM Connections — Each channel triggers a remote 120V AC Electrical Controlled Module placed where power is needed in the rack.
• Six Independent Contact Closures — Sequenced dry relay contacts integrate with control systems and automation in parallel with ECM outputs.

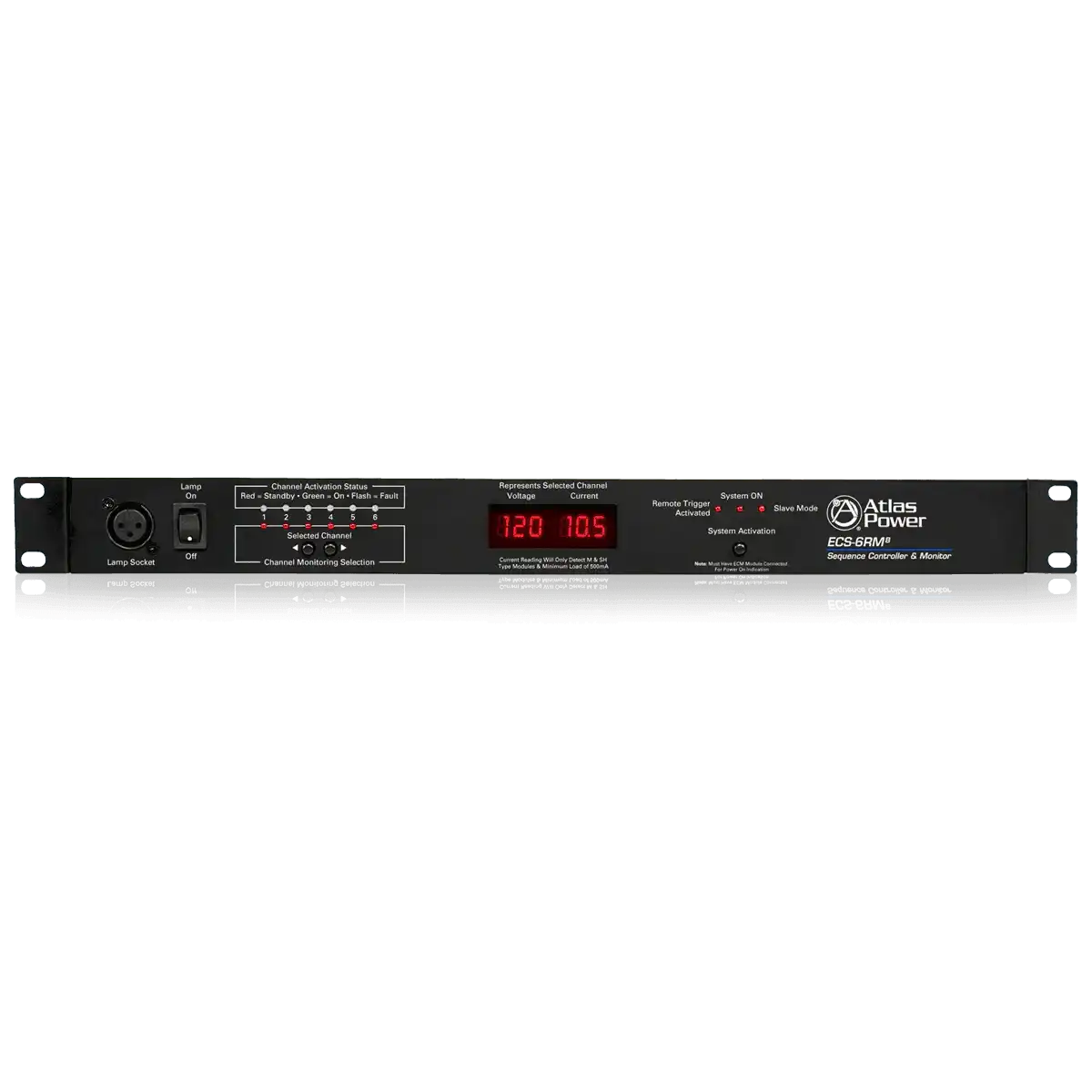

• AC Mains Monitoring — Laboratory-grade front-panel digital meters display voltage and current on up to six independent 20A AC lines.
• Abnormal Voltage Alerting — Built-in line intelligence warns of potentially damaging AC voltage conditions before equipment is affected.
• Multiple Activation Methods — Front-panel momentary switch, 5–24VDC remote trigger, external switch, or optional ECS-KSW6 key switch.
• Remote Key Switch up to 1,000 ft — The optional ECS-KSW6 provides remote activation with per-channel status and fault indication.
• Expandable to 18 Outlets — Daisy-chain up to three ECS-6RM units with independent timing for large rack power sequencing projects.
• Rack Lamp Support — Front and rear XLR sockets supply 12VDC for the optional AP-GNL18 gooseneck LED lamp.

Typical Applications

• House of worship amplifier rack power sequencing
• Auditorium and performance venue equipment racks
• Government space AV infrastructure power management
• Broadcast studio equipment power control
• Multi-purpose room and all-hands room AV racks
• Commercial meeting space centralized rack power

Technical Specifications

Frequently Asked Questions

Does the ECS-6RM switch AC power directly?

No. The ECS-6RM is the activation controller and monitor. Each triggered output requires a 120V AC mains ECM (Electrical Controlled Module), with several remote ECM module types available for different installation requirements.

How many outlets can one system sequence?

Each ECS-6RM controls six sequential timing sections, and up to three units can be daisy-chained with independent trigger timing for a total of 18 sequence-triggered outlets.

What activation methods are supported for AV system integration?

The sequence can be triggered from the front-panel momentary switch, a 5–24VDC remote voltage input, an external switch contact, or the optional ECS-KSW6 remote key switch located up to 1,000 feet away.

Can it monitor electrical conditions in the rack?

Yes. The ECS-6RM monitors up to six independent 20A AC mains lines, showing voltage and current on front-panel digital meters and indicating abnormal AC line voltage conditions.

Does it fit a standard equipment rack?

Yes. The unit is a compact 1RU chassis at 19" wide and 10" deep, designed for standard commercial AV rack installation.

What warranty applies, and where can I get help speccing the system?

AtlasIED covers the ECS-6RM with a 12-month warranty from date of purchase, and Creation Networks can assist with ECM module selection and full rack power design for your project.
