Atlas Sound ECM-20 – 20A AC Power Conditioner and Spike Suppressor
Product Overview

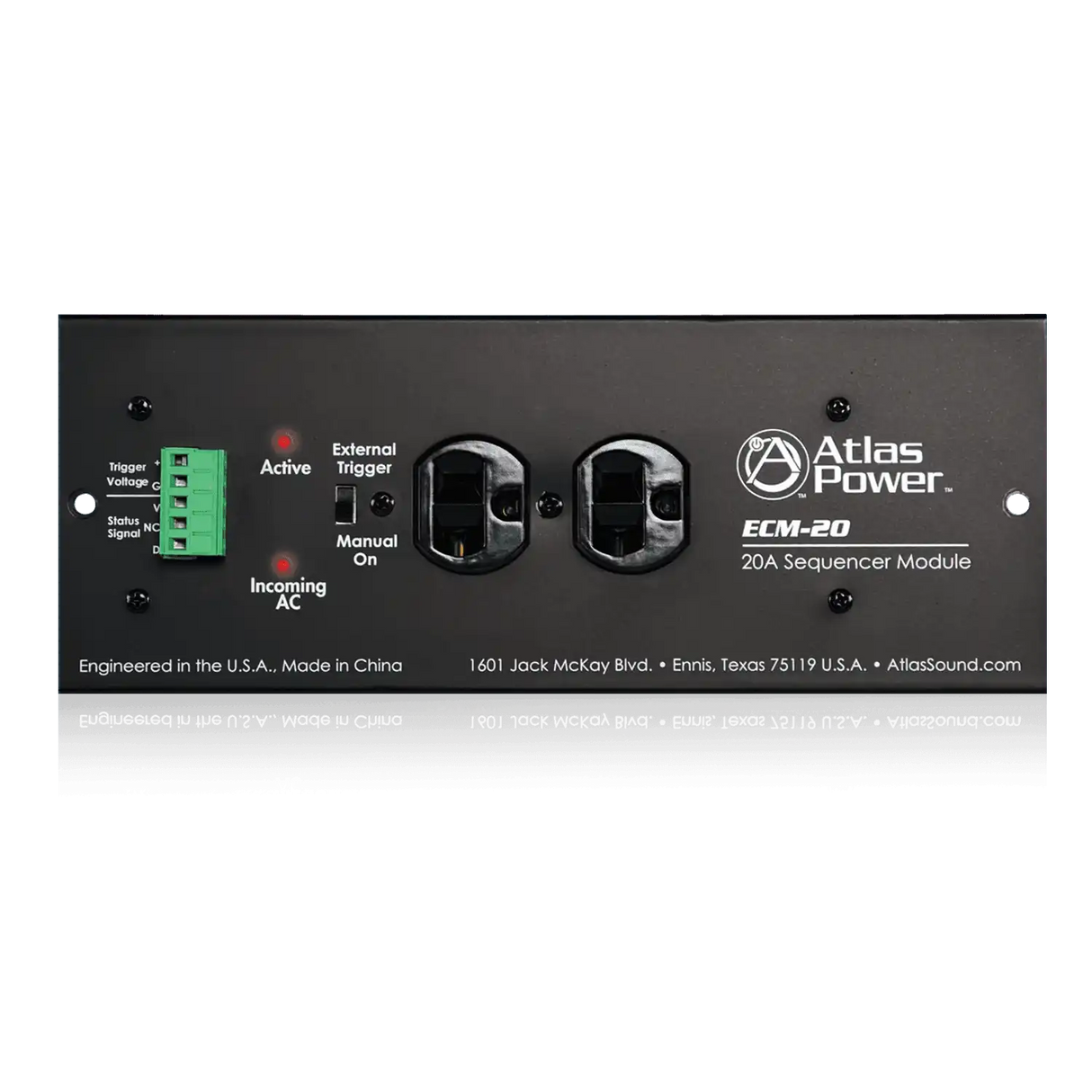

The Atlas Sound ECM-20 is a 20-amp AC power conditioner and spike suppressor designed for standalone operation or use alongside an ECS series sequence controller up to 1,000 feet away. It provides clamping spike and surge suppression, AC mains voltage monitoring, EVS circuitry, radio frequency interference filtering, and remote activation capability in a compact form factor. The ECM-20 is UL Listed, cUL, ETL, and cETL certified, and is intended for protecting AV equipment in rack installations, broadcast environments, and commercial AV systems.
Product Description
The ECM-20 protects connected AV equipment from voltage spikes, surges, and electrical noise that can degrade performance or cause premature component failure. Operating on 120V/60Hz mains at 102–132VAC, the unit clamps spike voltages starting at 460 VRMS at 3,000A and handles peak transients up to 6,000V, well above the thresholds that damage typical AV electronics. The onboard EVS (Enhanced Voltage Sensing) circuitry monitors AC mains voltage continuously and responds to out-of-range conditions. Radio frequency and electromagnetic interference (RFI/EMI) filtering reduces noise coupling that can introduce artifacts into audio or video signal chains. Two 20A outlets are provided, with manual/auto on/off switching for controlled power sequencing. An incoming AC present LED and an active LED give technicians immediate visual confirmation of power and operational status at a glance. The ECM-20 is designed to mount inside the Atlas Sound ECM-RACEWY6 raceway for clean, organized installation of multiple outlets directly fed from the electrical panel. It can also operate as a standalone conditioner or in a distributed system topology paired with an ECS sequence controller located up to 1,000 feet away via signal wiring. Power consumption of the unit itself is only 0.5 watts. The compact enclosure (8.5" W x 3.0" H x 3.5" D) fits in a variety of rack and custom enclosure configurations. Backed by a 12-month warranty.
Key Features
- 20A Clamping Spike and Surge Suppression — Clamps at 460 VRMS @ 3,000A; handles up to 6,000V peak transients.
- AC Mains Voltage Monitoring — EVS circuitry monitors incoming voltage continuously for out-of-range conditions.
- RFI/EMI Filtering — Reduces radio frequency and electromagnetic interference that degrades AV system performance.
- Remote Activation — Compatible with ECS series controllers up to 1,000 feet away for distributed system control.
- Manual/Auto On/Off Switch — Provides flexible power sequencing options for rack builds.
- Status LEDs — Incoming AC present and active indicators for quick field diagnostics.
- ECM-RACEWY6 Compatible — Designed for clean installation in Atlas Sound raceway systems.
- UL Listed / cUL / ETL / cETL Certified — Certified to MET (UL 1449) safety standard.
Technical Specifications
| Specification | Value |
|---|---|
| Model | ECM-20 |
| Current Rating | 20 Amps |
| Power Requirement | 120V, 60 Hz |
| Operating Voltage Range | 102–132 VAC |
| Min. Spike Clamping Voltage | 460 VRMS @ 3,000A |
| Max. Spike Clamping Voltage | 6,000V |
| Outlets | 2 (20A) |
| Power Consumption (unit) | 0.5 Watts |
| Safety Certification | MET (UL 1449); UL Listed, cUL, ETL, cETL |
| Height | 3.0" (76.2 mm) |
| Width | 8.5" (215.9 mm) |
| Depth | 3.5" (88.9 mm) |
| Weight | 1.25 lbs (0.68 kg) |
| Warranty | 12 months from date of purchase |
