Atlas Sound E408-250 – Plate Mounted 70.7V 250W Precision Attenuator
Product Overview

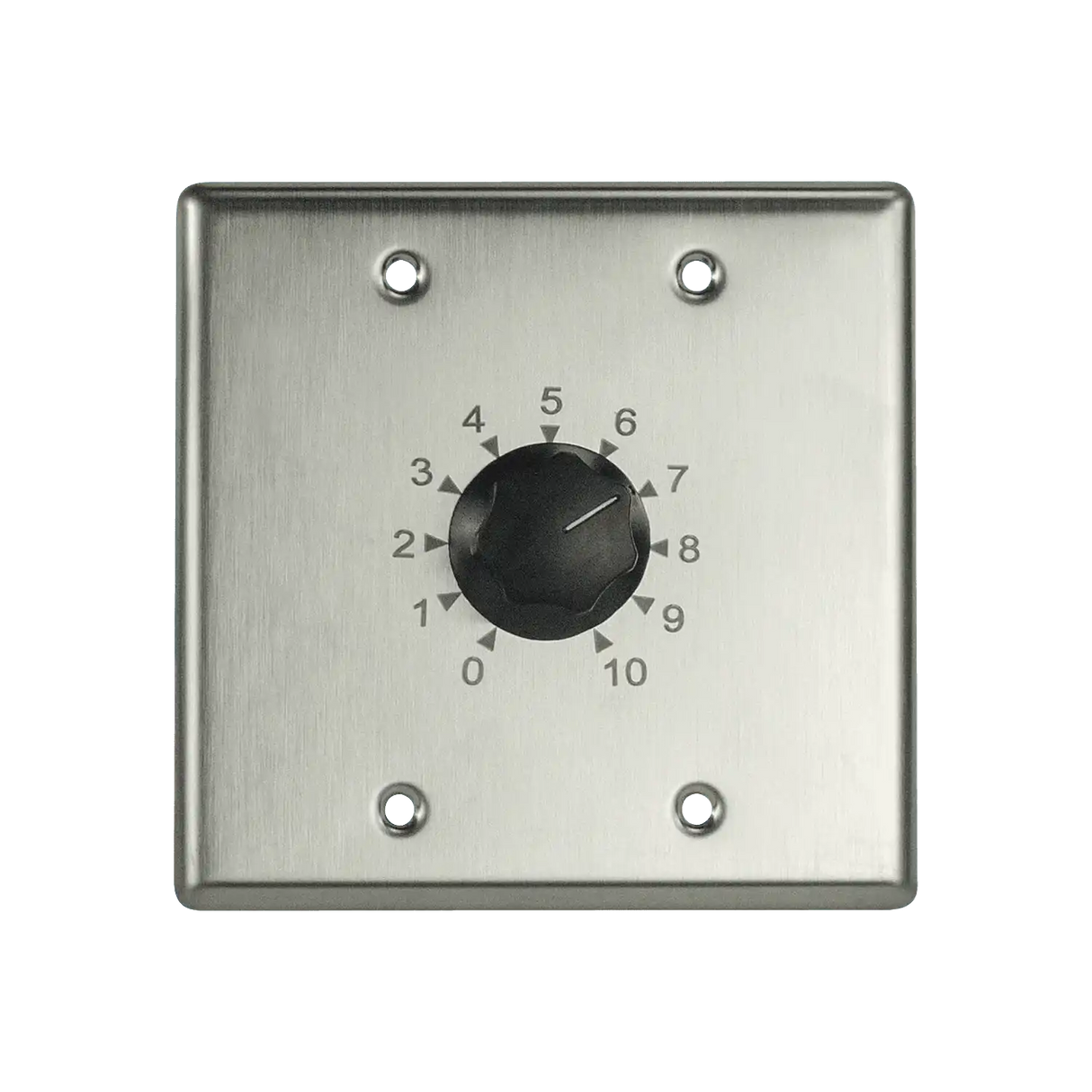

The Atlas Sound E408-250 is a precision plate-mounted 70.7V attenuator rated at 250 watts, designed for fine-level control in commercial sound masking and sound reinforcement systems. It uses a ten-position non-shorting rotary switch with 1.5 dB steps for accurate and repeatable attenuation adjustments. The 2-gang stainless steel plate mounts to a standard wall box, making it a professional-grade zone level control for 70V distributed audio systems.
Product Description

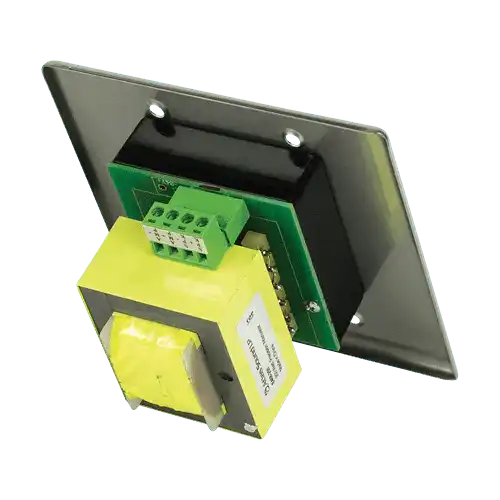

The E408-250 addresses the need for precision level adjustment in 70.7V audio systems where coarse volume steps are inadequate—particularly in sound masking applications where consistent signal levels directly affect system performance. The 1.5 dB step increment across ten positions provides 15 dB of total attenuation range, giving system integrators granular control over zone levels without the signal coloration of transformer-coupled alternatives. The non-shorting rotary switch design prevents signal interruption during adjustment, which is important in active systems. Constructed with a stainless steel plate and standard 2-gang footprint, the E408-250 installs in any standard 2-gang electrical box. It is UL 813 and UL 2043 listed, qualifying it for use in air-handling (plenum) spaces. For rack-mounted applications, the companion model E408-250-RM is available. The unit weighs 1.5 lbs and ships at 1.79 lbs. A 60-month warranty is included.
Key Features
- 1.5 dB Step Attenuation — Ten-position rotary switch provides precise 1.5 dB increments, ideal for sound masking and reinforcement tuning.
- 250W Power Rating — Handles high-power 70.7V distributed audio zones without signal degradation.
- Non-Shorting Rotary Switch — Prevents signal interruption during level adjustments in active systems.

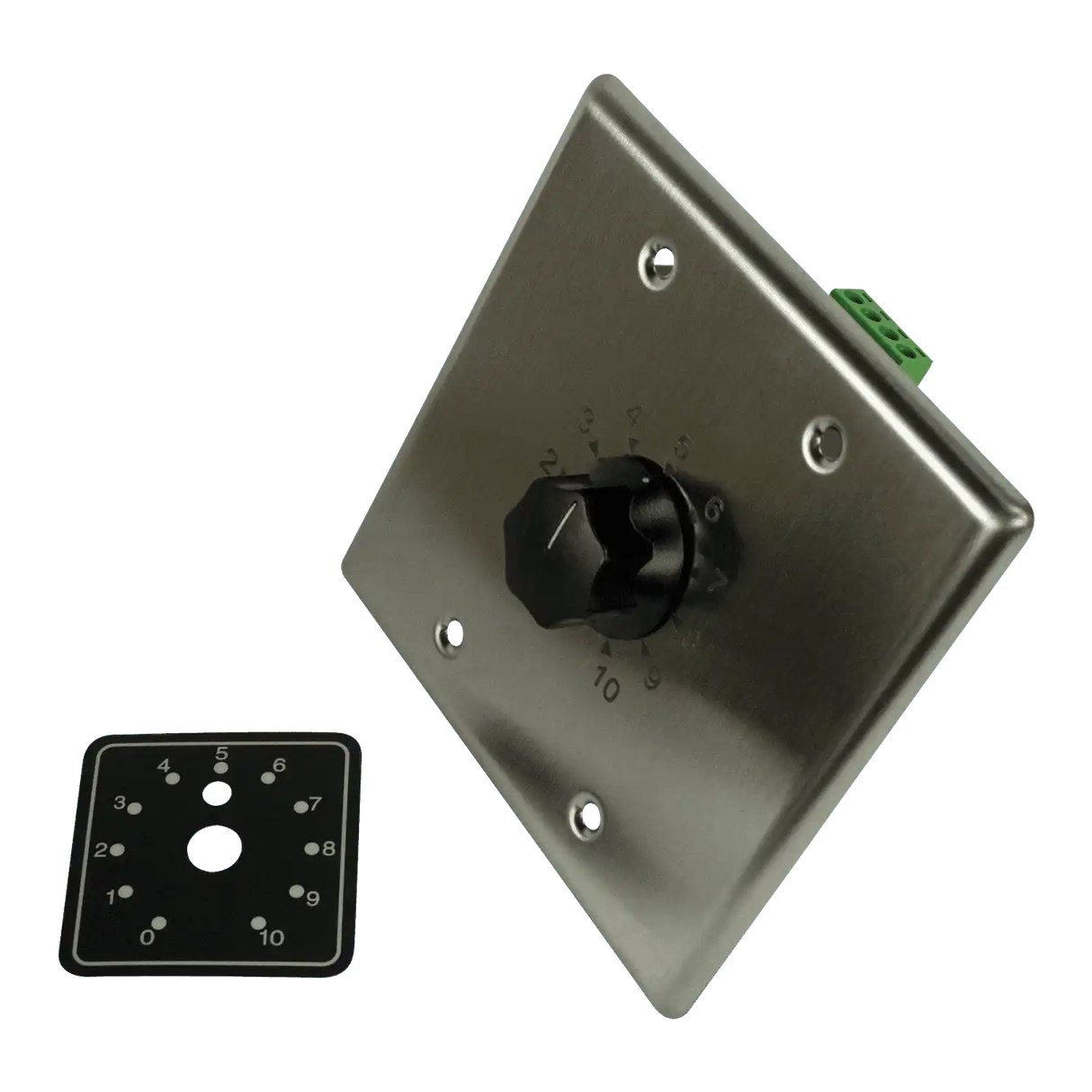

- 2-Gang Stainless Steel Plate — Installs in standard 2-gang electrical boxes for clean wall-mount deployment.
- UL 813 & UL 2043 Listed — Safety listed for plenum (air handling) space installation.
- 15 dB Total Attenuation Range — Provides adequate range for fine-tuning zone levels across distributed audio systems.
Technical Specifications
| Specification | Value |
|---|---|
| Model | E408-250 |
| System Voltage | 70.7V |
| Power Rating | 250W |
| Attenuation Steps | 1.5 dB per step, 10 positions |
| Total Attenuation | 15 dB |
| Plate Size | 2-Gang |
| Plate Material | Stainless Steel |
| Height | 4.56" (11.58 cm) |
| Width | 4.5" (11.43 cm) |
| Depth | 2.51" (6.38 cm) |
| Weight | 1.5 lb (0.68 kg) |
| Safety Listed | UL 813, UL 2043 |
| Warranty Period | 60 months from date of purchase |
