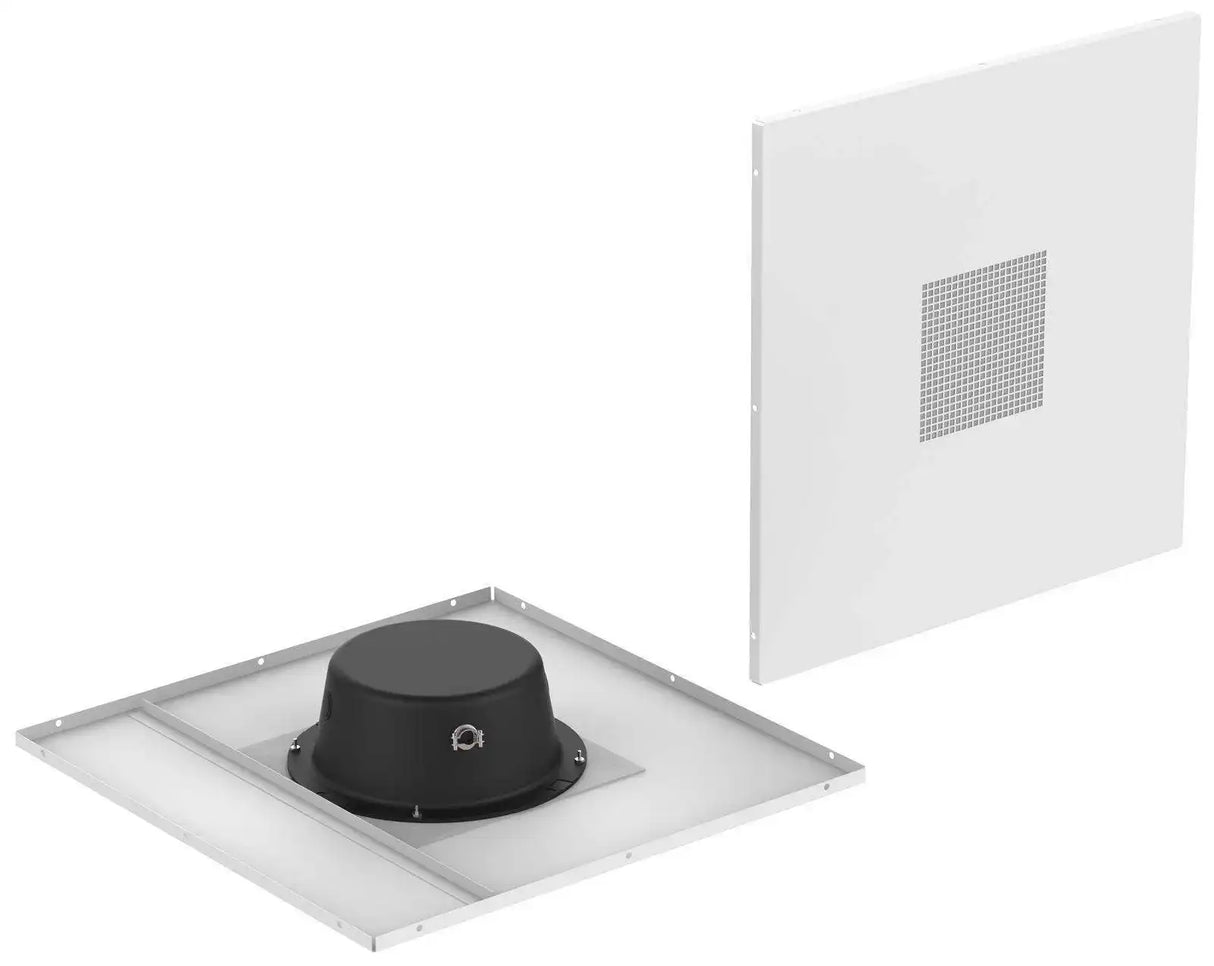

Atlas Sound DT22 – 2x2 Drop Tile Ceiling Speaker Package
Product Overview
The Atlas Sound DT22 is a 2’ x 2’ drop-in ceiling speaker package designed for commercial paging and background music in acoustic tile grid ceilings. The all-in-one assembly—speaker, transformer, enclosure, and white panel grille—drops directly into a standard ceiling grid, eliminating the need for separate back cans or additional hardware. It is well-suited for retail, shopping malls, department stores, and any commercial space where large quantities of speakers must be installed quickly and cost-effectively. UL 1480 and UL 2043 listed.
Product Description
The DT22 simplifies speaker installation by packaging an 8-inch dual-cone driver, built-in 25V/70.7V transformer, enclosure, and grille into a single pre-assembled unit that drops into a 2’ x 2’ acoustic ceiling grid. No separate back box is required, and the solid white panel with punched speaker grille blends with standard commercial acoustic ceiling tiles for an unobtrusive finish. The transformer includes power taps at 0.25, 0.5, 1, 2, and 4 watts, providing the flexibility needed to balance zone coverage in any 70V distributed audio system. The 8-inch dual-cone driver delivers a frequency response of 100 Hz to 5 kHz with 96 dB sensitivity—adequate for clear speech intelligibility and background music in retail and commercial environments. Dispersion at the 2 kHz octave band is 105 degrees at -6 dB, providing broad, even coverage from each mounting location. The DT22 ships at 11.3 lbs, and each unit is 23.9 inches in length and 4.53 inches in depth. A 60-month warranty is included.
Key Features
- All-in-One Pre-Assembled Package — Speaker, transformer, enclosure, and grille included; drops into ceiling grid.
- 2’ x 2’ Tile Grid Compatibility — Fits standard commercial acoustic ceiling systems.
- 8" Dual-Cone Driver — 96 dB sensitivity with 100 Hz–5 kHz frequency response.
- 25V/70.7V Transformer — Five wattage taps: 0.25, 0.5, 1, 2, and 4W for zone tuning.
- 105° Dispersion at 2 kHz — Broad coverage from each speaker location.
- White Panel Grille — Solid white punched panel blends with acoustic ceiling tiles.
- UL 1480 and UL 2043 Listed — Safety listed for commercial use.
- Reduces Installation Time — No separate back can required; designed for high-volume installations.
Technical Specifications
| Specification | Value |
|---|---|
| Model | DT22 |
| Speaker | 8" Dual Cone |
| Frequency Response | 100 Hz – 5 kHz |
| Sensitivity | 96 dB |
| 70.7V Power Taps | .25, .5, 1, 2, & 4 Watts |
| Dispersion | 105° at 2 kHz octave band (-6 dB) |
| Magnet Weight | 10 oz (283 g) |
| Length | 23.9" (607 mm) |
| Depth | 4.53" (115 mm) |
| Weight | 11.3 lbs (5.125 kg) |
| Color | White |
| Safety Listings | UL 1480, UL 2043 |
| Warranty Period | 60 months from date of purchase |
