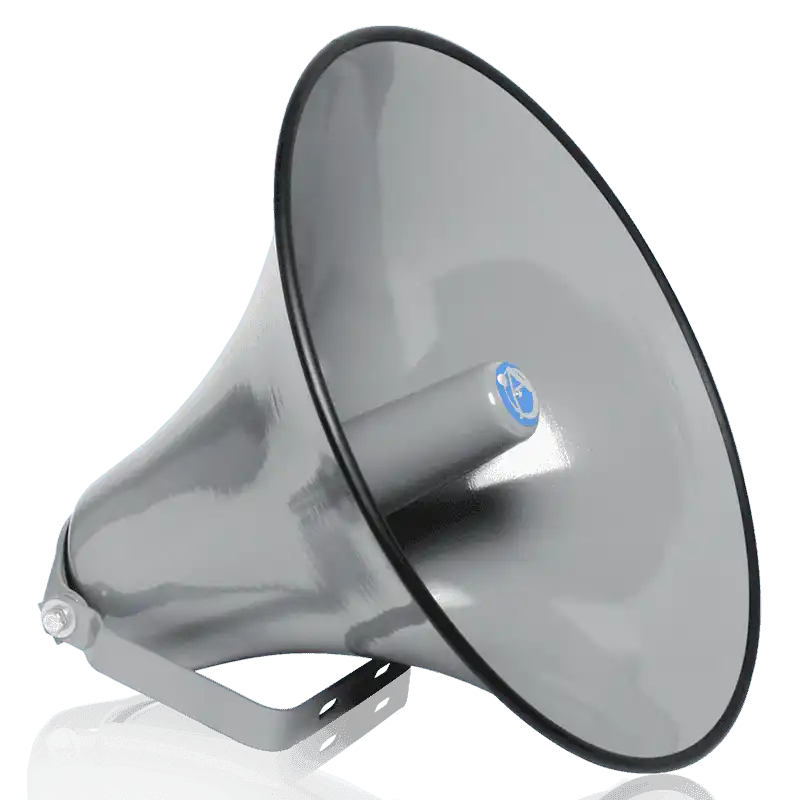

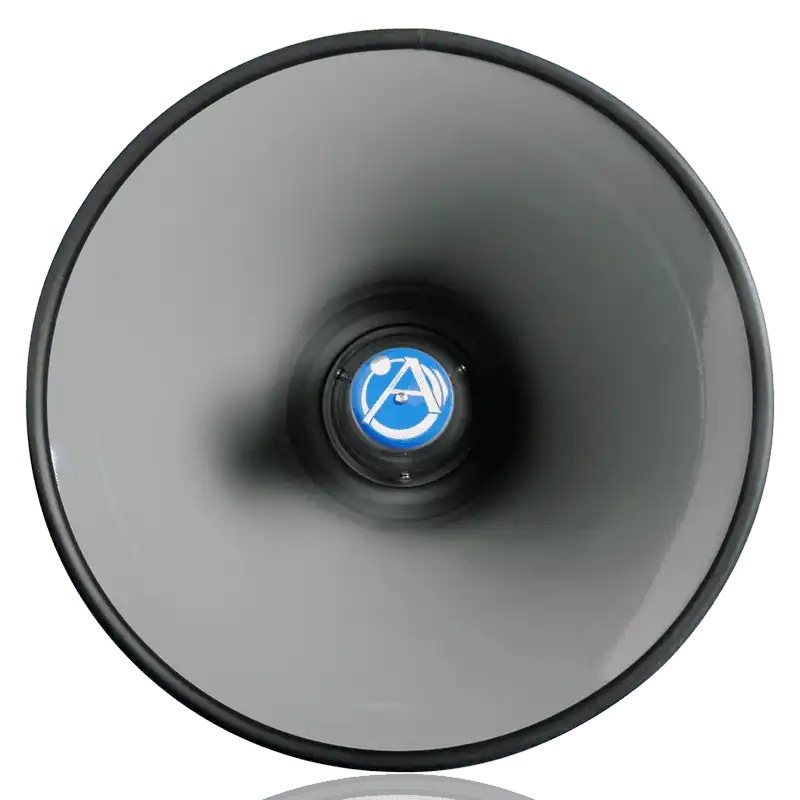

Atlas Sound DR-54 – 75° Uniform Coverage Double Re-Entrant Horn

Product Overview

The Atlas Sound DR-54 is a 75-degree uniform coverage double re-entrant horn designed for high-intelligibility voice and signal distribution in outdoor, industrial, and commercial PA applications. Its exponentially-flared metal construction accepts any standard compression driver with 1-3/8-inch -18 male thread coupling, including AtlasIED PD and SD Series drivers. The DR-54 delivers consistent wide-angle sound distribution in high-ambient-noise environments such as stadiums, industrial facilities, transportation terminals, and outdoor public address systems.

Product Description

The DR-54 double re-entrant horn provides 75-degree uniform sound coverage across its dispersion pattern, making it effective for wide-area PA applications where a single horn must cover large audiences or open spaces. The exponential horn flare is mathematically optimized for uniform sound distribution across the coverage angle, avoiding the hot-spots and drop-off zones common in simpler horn designs. A resonance damping ring is incorporated into the circular projector assembly, extending the usable frequency range by controlling reflective resonances within the horn body. The all-metal construction is weather-resistant, rated for year-round outdoor use in rain, humidity, and temperature extremes. The durable grey epoxy finish resists corrosion and UV degradation in permanent outdoor installations. An integral U-type steel mounting bracket is included, providing full directional aiming flexibility for precise coverage adjustment during installation. The 1-3/8-inch -18 thread coupling accepts AtlasIED PD and SD Series compression drivers as well as any third-party driver with standard thread coupling. At 26 inches in diameter and 19 inches deep, the DR-54 is a large-format horn appropriate for long-throw or wide-coverage applications. Shipping weight is 20 lbs.

Key Features

• 75° Uniform Coverage Pattern — Wide dispersion angle provides consistent sound distribution across large areas without hot-spots.
• Exponentially-Flared Horn Design — Mathematical horn flare optimizes frequency response and uniform sound distribution across the coverage angle.
• Resonance Damping Ring — Controls internal reflective resonances for extended, smooth frequency response through the horn.
• All-Metal Weatherproof Construction — Rated for year-round outdoor use in rain, humidity, and temperature extremes.
• Grey Epoxy Finish — Durable finish resists corrosion and UV degradation in permanent outdoor installations.
• Standard 1-3/8"-18 Thread Coupling — Accepts all standard compression drivers including AtlasIED PD and SD Series.
• U-Type Steel Mounting Bracket — Integral bracket provides full directional aiming flexibility for precise coverage alignment during installation.
• Double Re-Entrant Design — Multi-path reflex horn geometry for high intelligibility and efficient sound projection over distance.

Technical Specifications
