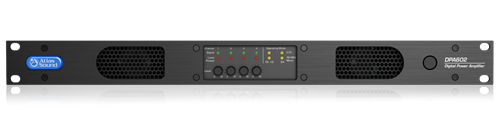

Atlas Sound DPA602 – 600-Watt Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio
Atlas Sound DPA602 – 600-Watt Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound DPA602 – 600-Watt Networkable Multi-Channel Power Ampli...
What is the Atlas Sound DPA602?
The DPA602 is a network-enabled, DSP-controlled amplifier delivering 600 watts total, factory-configured as a traditional two-channel 70.7V/100V commercial power amplifier with no programming or network connectivity required.
How does the Atlas Sound DPA602 work?
When web-enabled, the DPA602 can be reconfigured into four-channel mode with 4Ω or 8Ω load impedances for two stereo zones, or a single 70.7V/100V paging channel paired with two 4Ω/8Ω stereo channels. Four balanced line inputs are standard, with an accessory slot for an optional Dante or analog input card for up to eight total inputs. Every channel carries level controls, EQ, limiters, high/low-pass filters, and delay, accessible from a computer, tablet, or mobile browser with password-protected settings.
What are the key features of the Atlas Sound DPA602?
- 600W total — 2 x 300W @ 70.7V/100V, or 4-channel 4Ω/8Ω configurations.
- Works with zero configuration — Factory default is a traditional 70.7V/100V amplifier.
- Optional Dante or analog expansion — Accessory card doubles inputs to eight.
- Web browser control — PC, iOS, and Android compatible.
Where is the Atlas Sound DPA602 typically used?
- Conference room
- Multi-purpose room
- Commercial meeting space
Technical Specifications
| Power Output | 2 x 300W @ 70.7V/100V; 4 x 150W @ 4Ω; 4 x 75W @ 8Ω |
| Amplifier Topology | Class AB Switching Hybrid – BASH |
| Frequency Response | -3dB 20Hz–20kHz |
| THD | 1% @ Rated Output |
| Voltage | 110–120V & 220–240V Auto Switch Over |
| Rack Units | 1 RU |
| Dimensions | 19" W x 1.72" H x 14.5" D |
| Weight | 13 lbs (5.92kg) |
| Warranty | 36 months |
Specifications sourced from AtlasIED. Also available as DPA804 (800W), DPA1202 (1200W), and DPA2402 (2400W). See the Atlas Sound collection.
Frequently Asked Questions
Do I need to configure this to use it?
No, it runs out of the box as a two-channel 70.7V/100V amplifier with no programming needed.
Can I add Dante later?
Yes, an accessory slot accepts an optional Dante receiver card, sold separately.
What warranty applies?
36 months from date of purchase.
