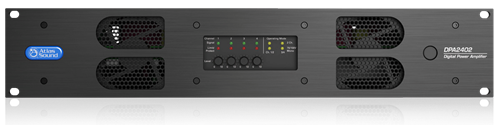

Atlas Sound DPA2402 – 2400-Watt Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio
Atlas Sound DPA2402 – 2400-Watt Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound DPA2402 – 2400-Watt Networkable Multi-Channel Power Amp...
What is the Atlas Sound DPA2402?
The DPA2402 is the top of the DPA line — a network-based, DSP-controlled 4-channel amplifier delivering 2400 watts total, factory-preconfigured as a two-channel 70V amplifier for large distributed paging and stereo installations.
How does the Atlas Sound DPA2402 work?
If a design requires four channels of low-impedance amplification, the DPA2402 can be reconfigured with 4Ω or 8Ω load impedances, or a mixed arrangement with 70V/100V paging on one channel and two 4Ω/8Ω stereo channels. Four balanced line inputs are standard, with an accessory slot for an optional Dante or analog input card for up to eight total inputs, mixable and routable to any channel. Every channel includes level controls, EQ, limiters, high/low-pass filters, and delay, controllable via computer, tablet, or mobile browser with password-protected settings.
What are the key features of the Atlas Sound DPA2402?
- 2400W total, 4-channel — The highest-power model in the DPA line.
- Factory-preconfigured 70V mode — Ready to use with no network setup.
- Optional Dante expansion — DPA-DAC4 accessory card adds four Dante inputs.
- Web browser control — PC, iOS, and Android compatible.
Where is the Atlas Sound DPA2402 typically used?
- Boardroom
- Multi-purpose room
- Auditorium
- Broadcast studio
Technical Specifications
| Power Output | 1 x 1200W @ 100V; 2 x 600W @ 4Ω (factory default 2CH 70V) |
| Amplifier Topology | Class AB Switching Hybrid – BASH |
| Crosstalk | 73dB @ 1kHz |
| Voltage | 110–120V & 220–240V Auto Switch Over |
| Rack Units | 2 RU |
| Dimensions | 19" W x 3.47" H x 14.5" D |
| Weight | 20.8 lbs (9.53kg) |
| Warranty | 36 months |
Specifications sourced from AtlasIED. Also available as DPA602 (600W), DPA804 (800W), and DPA1202 (1200W). See the Atlas Sound collection.
Frequently Asked Questions
What's the largest zone this can drive?
1200W at 100V on a single channel, or 600W each across two 4Ω channels — the highest-capacity model in the DPA series.
Does it need network setup to operate?
No, it ships preconfigured as a two-channel 70V amplifier ready for immediate use.
What warranty applies?
36 months from date of purchase.
