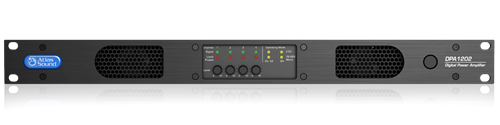

Atlas Sound DPA1202 – 1200-Watt Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio
Atlas Sound DPA1202 – 1200-Watt Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound DPA1202 – 1200-Watt Networkable Multi-Channel Power Amp...
What is the Atlas Sound DPA1202?
The DPA1202 is a network-based, DSP-controlled 4-channel amplifier delivering 1200 watts total, factory-preconfigured as a two-channel 70V amplifier and reconfigurable into other amplification arrangements to meet installation requirements.
How does the Atlas Sound DPA1202 work?
If the design calls for four channels of low-impedance amplification, the DPA1202 can be reconfigured as a 4-channel model with 4Ω or 8Ω load impedances, or a single 70V/100V paging channel paired with two additional 4Ω/8Ω foreground stereo channels. It comes standard with four balanced line inputs plus an accessory slot for an optional DPA-DAC4 Dante receiver card or DPA-AMIX mic/line input card, for a total of eight inputs, all mixable and routable to any channel. Every channel carries level controls, EQ, limiters, high/low-pass filters, and delay; output levels can be set from front-panel potentiometers or the onboard GUI, with wired remote level control available for end users.
What are the key features of the Atlas Sound DPA1202?
- 1200W total, 4-channel — Configurable 70V/100V paging plus 4Ω/8Ω stereo in one chassis.
- Factory-preconfigured, no network required — Ships ready as a two-channel 70V amplifier.
- Optional Dante or analog expansion — DPA-DAC4 or DPA-AMIX accessory card doubles inputs to eight.
- Full DSP per channel — EQ, limiters, high/low-pass filters, and delay.
- Web browser configuration — Computer, tablet, or mobile access with password protection.
Where is the Atlas Sound DPA1202 typically used?
- Boardroom
- Multi-purpose room
- Commercial meeting space
- Auditorium
Technical Specifications
| Power Output | 2 x 600W @ 70V/100V (factory default); 4Ω/8Ω configurable |
| Amplifier Topology | Class AB Switching Hybrid – BASH |
| Network Audio | Optional Dante via DPA-DAC4 accessory card |
| Inputs | 4 balanced line, expandable to 8 |
| Voltage | 110–120V & 220–240V Auto Switch Over |
| Warranty | 36 months |
Specifications sourced from AtlasIED. Also available as DPA602 (600W), DPA804 (800W), and DPA2402 (2400W). See the Atlas Sound collection.
Frequently Asked Questions
Do I need to network this amplifier to use it?
No, it ships factory-preconfigured as a two-channel 70V amplifier ready to use.
Can it handle both paging and stereo zones?
Yes, one channel can run 70V/100V paging while the other two run 4Ω/8Ω foreground stereo.
What warranty applies?
36 months from date of purchase.
