Product Overview
The Atlas Sound D161-8 is a factory-assembled 8" in-ceiling speaker package that includes a dual-cone speaker, 25V/70.7V transformer, and square 161-8 white epoxy baffle, ready for installation in commercial paging and background music systems. Designed to save installation time and reduce field wiring errors, the D161-8 ships as a complete, pre-wired assembly suited for offices, retail environments, healthcare facilities, and educational spaces. BAA and TAA compliant, the package meets government and institutional procurement requirements.
Product Description
The D161-8 is part of the Atlas Sound D Series in-ceiling speaker packages, combining all essential components into a single factory-wired assembly for efficient commercial audio deployment. The 8" dual-cone speaker (model C10A) uses a 10-ounce ceramic magnet for reliable low-to-mid frequency performance with a 97dB sensitivity rating and 105° dispersion angle, providing broad coverage in open-plan spaces with minimal speaker count. The speaker's treated paper cone is engineered for general-purpose paging and background music applications with a frequency response of 100Hz to 10kHz. The dual-voltage 25V/70.7V transformer includes pre-wired secondary leads with color-coded, stripped, and tinned primary connections for straightforward field wiring. Power taps at 0.5, 1, 2, and 4 watts allow zone-level management in distributed 70V audio systems. The included 161-8 square recessed grille features an attractive white epoxy finish that blends with standard commercial ceiling tile installations. To meet code requirements and accommodate a variety of ceiling constructions, optional recessed and surface-mounting enclosures, mounting rings, and tile bridge accessories are available separately. The cUL certification supports use in projects requiring safety-listed components. BAA and TAA compliant for government and institutionally funded construction projects. Optional hydrophobic environmental treatment is available for installations in humid environments.
Key Features
- Factory-Assembled Package — Speaker, transformer, and baffle shipped pre-wired to reduce installation time and field wiring errors.
- 8" Dual-Cone Speaker with Ceramic Magnet — 10-oz ceramic magnet driver with treated paper cone provides 97dB sensitivity for general paging and BGM applications.
- 25V/70.7V Dual-Voltage Transformer — Pre-wired with color-coded, stripped, and tinned primary leads for straightforward field connection.
- Multi-Tap Power Selection — Taps at 0.5, 1, 2, and 4 watts allow flexible zone-level control in distributed audio systems.
- 105° Dispersion — Wide coverage angle reduces the number of speakers needed for uniform sound distribution.

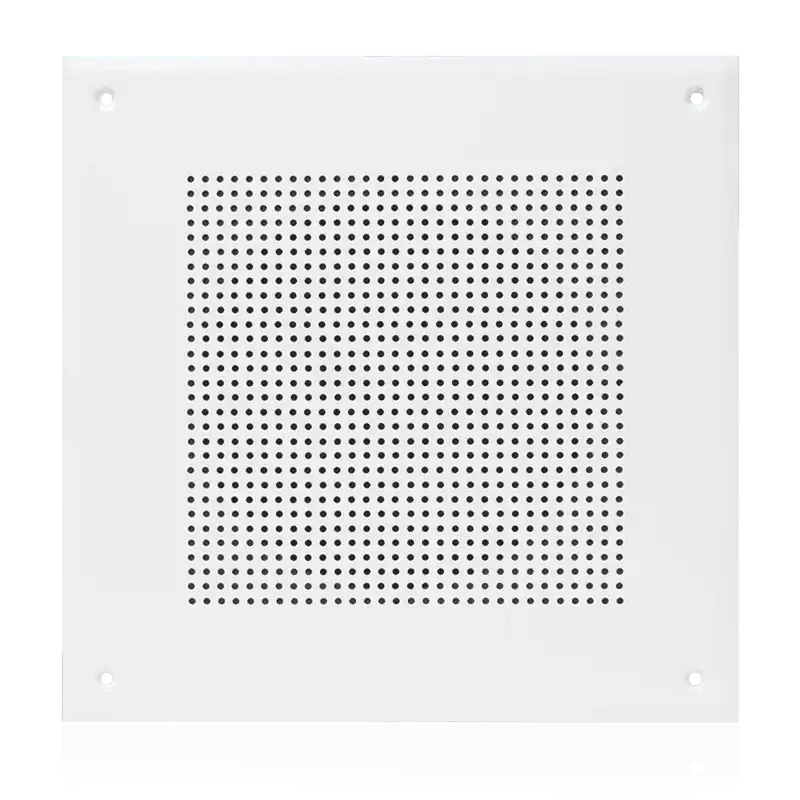

- Square White Epoxy Baffle — Recessed grille with attractive white finish blends with commercial ceiling tile installations.
- cUL Certified — Safety listing supports use in projects with code compliance requirements.
- BAA and TAA Compliant — Qualified for government and federally funded construction procurement.
- Optional Mounting Accessories — Compatible with Atlas Sound enclosures, mounting rings, and tile bridge accessories for varied ceiling types.
Technical Specifications
| Specification | Value |
|---|---|
| Model | D161-8 |
| Speaker Type | Treated Paper Dual-Cone |
| Sensitivity | 97dB |
| Frequency Response | 100Hz – 10kHz |
| Power Taps | 0.5, 1, 2, 4 Watts |
| Dispersion | 105° |
| Diameter | 8" (20.32 cm) |
| Depth | 2 7/8" (7.30 cm) |
| Transformer Voltage | 25V / 70.7V |
| Shipping Weight | 5.33 lbs (2.42 kg) |
| Safety Listing | cUL Certified |
| Compliance | BAA, TAA |
| Warranty Period | 60 months from date of purchase |
