Atlas Sound CR2CK – CR Series Ceiling Rack Cable Suspension Kit
Product Overview
The Atlas Sound CR2CK is an optional cable suspension kit for the CR Series ceiling-mount rack systems, providing aircraft cable support as an alternative or supplement to hard structural mounting. The kit is designed for use with all CR Series versions and allows precise cable length adjustment and rack leveling after installation. It is an essential accessory for AV integrators installing ceiling racks in plenum or tile grid environments where structural access is limited.
Product Description

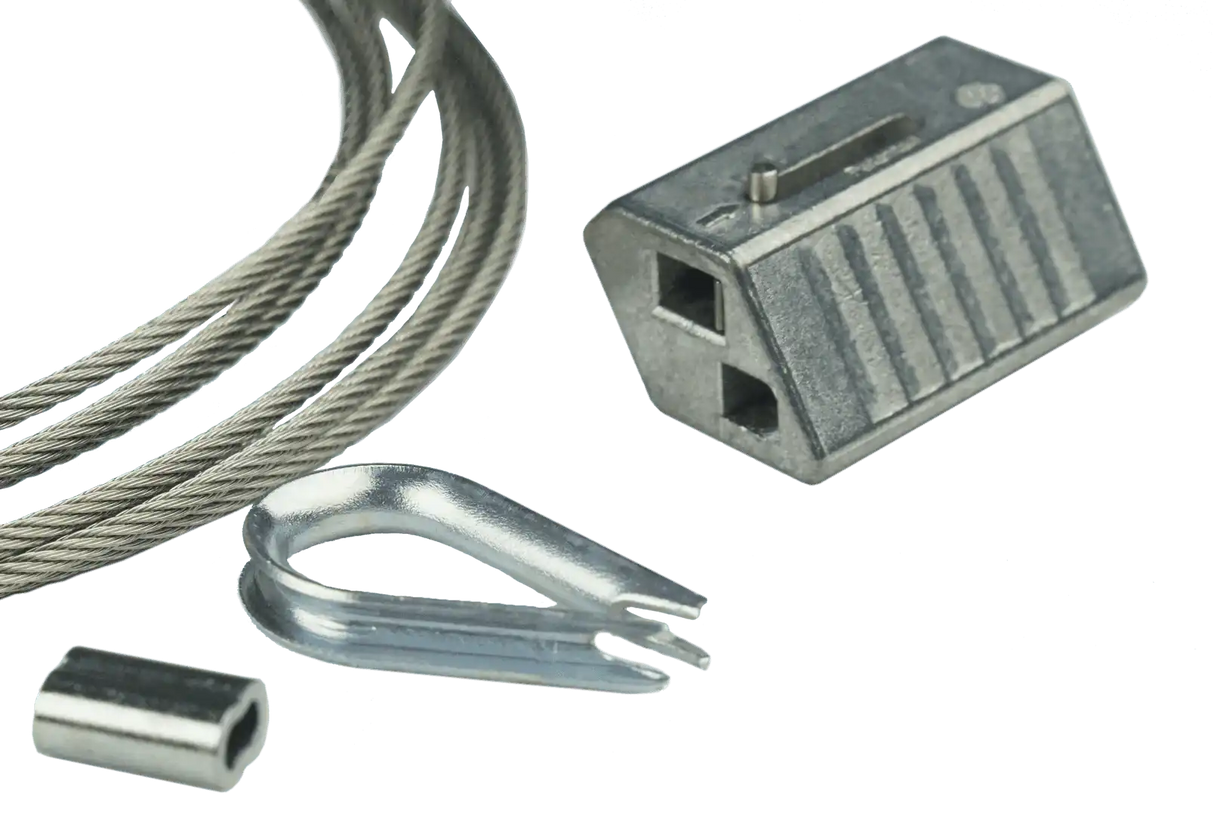

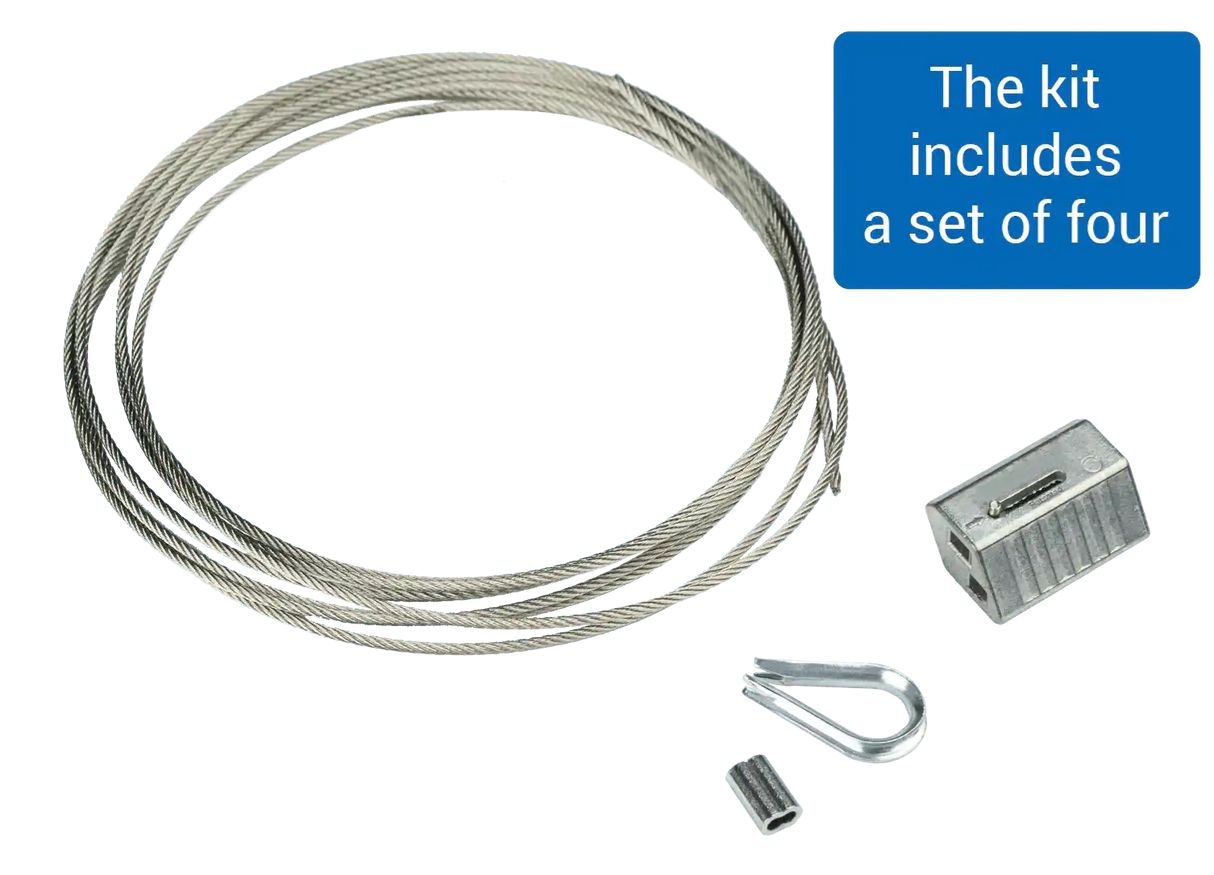

The CR2CK includes four aircraft-grade suspension cables, each 96 inches (8 feet) in length, providing ample span to reach ceiling structure above tile grids or drop ceilings. Four thimbles protect the cable at anchor points, while four crimp sleeves secure the final cable terminations for a clean, permanent connection. Four quick-adjustment cable locks allow the installer to fine-tune cable length at each corner independently, enabling the rack to be leveled precisely after initial suspension without requiring tools to re-terminate the cables. This adjustment mechanism is particularly valuable when working in uneven ceiling structures or when equipment weight distribution shifts the rack's balance. The kit is compatible with all CR Series ceiling rack configurations including CR212, CR222, and their variants, making it a universal accessory across the Atlas CR product line. The 60-month warranty covers the hardware components for the life of a typical commercial AV installation.
Key Features
- Four 96" Aircraft Cables — 8-foot length provides reach to ceiling structure above drop tile grids.
- Quick-Adjustment Cable Locks — Fine-tune cable length per corner for precise rack leveling after installation.

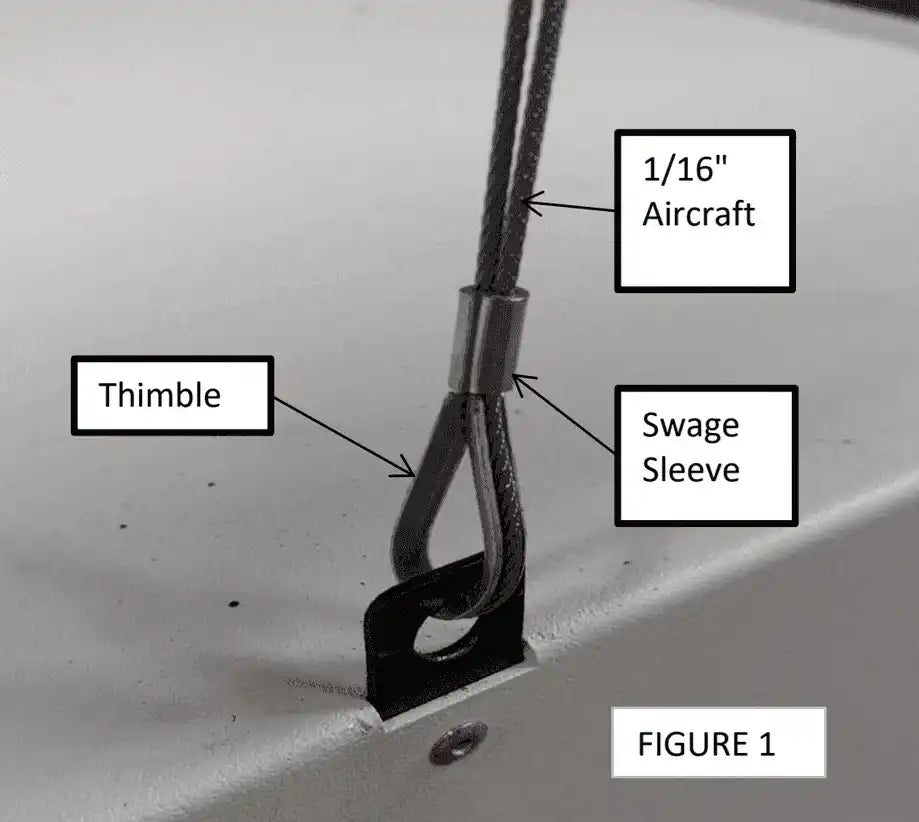

- Thimbles Included — Protect cables at structural anchor points from wear and deformation.
- Crimp Sleeves Included — Secure cable terminations permanently without knots or clamps.
- Compatible with All CR Versions — Works with CR212, CR222, and all variants in the Atlas CR ceiling rack series.
- Supports Phased Leveling — Adjust each cable independently after the rack is loaded with equipment.
Technical Specifications
| Specification | Value |
|---|---|
| Cable Length | 96" (8 ft) per cable |
| Cable Quantity | 4 aircraft cables |
| Thimbles | 4 included |
| Crimp Sleeves | 4 included |
| Cable Locks | 4 quick-adjustment locks included |
| Compatible Systems | All Atlas CR Series ceiling racks |
| Warranty | 60 months from date of purchase |
