Atlas Sound CR222TRK – CR Series Threaded Rod Installation Kit for CR222

Product Overview

The Atlas Sound CR222TRK is an optional installation kit that enables the CR222 series ceiling-mount rack enclosure to be suspended via threaded rod from overhead structural elements. The kit provides two brackets with pre-drilled holes for threaded rod and fasteners, allowing the CR enclosure to be hung from the ceiling structure rather than relying solely on the tile grid. This approach is recommended in installations where additional support is required or where local codes mandate structural attachment independent of the ceiling grid.

Product Description

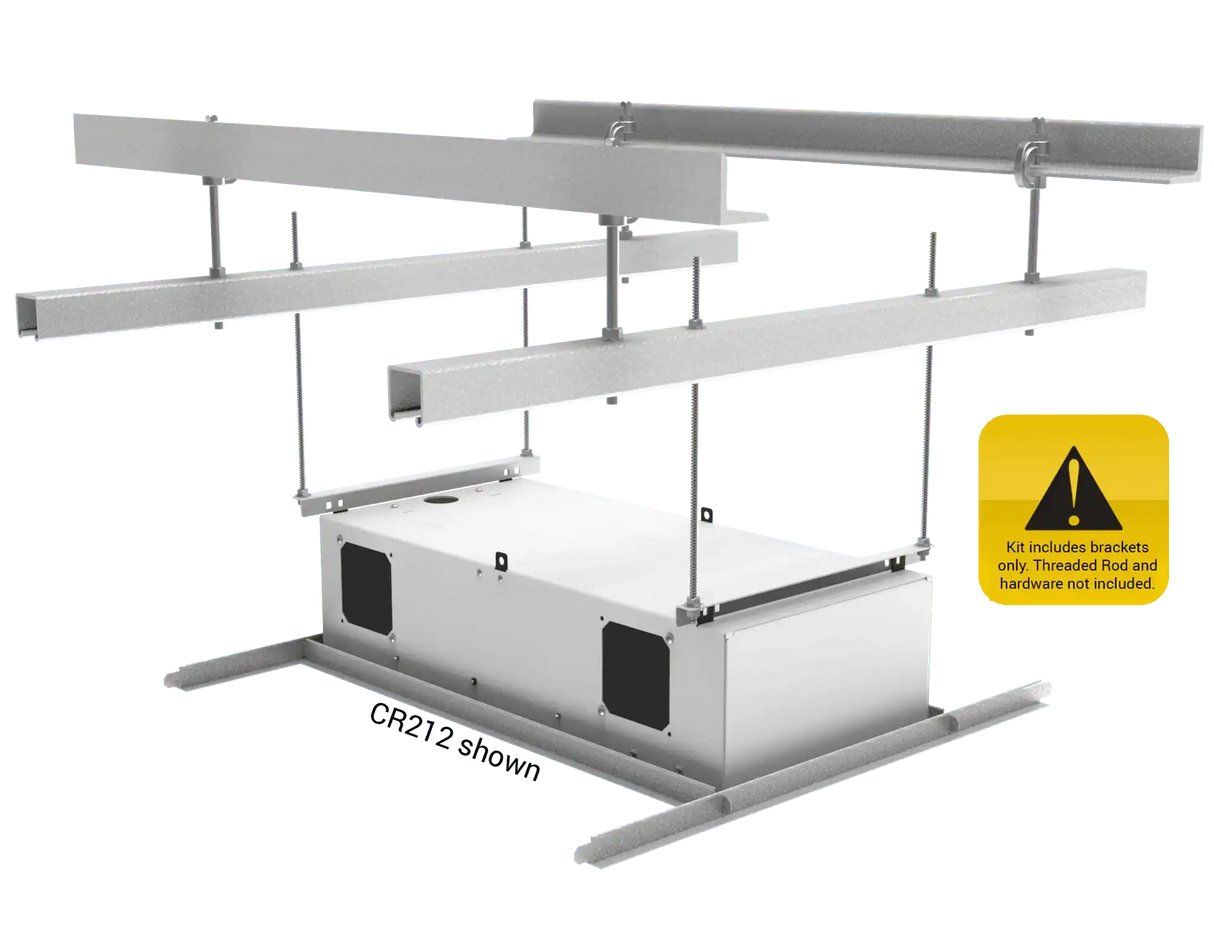

The CR222TRK is a purpose-designed accessory for the Atlas Sound CR222 family of 2'x2' ceiling-mount rack systems, including the CR222, CR222P, CR222-NR, and CR222P-NR models. Standard CR222 installations rest in or attach to a suspended ceiling grid; the CR222TRK provides a supplemental or alternative support method by connecting the enclosure directly to the building structure via threaded rod. The kit includes two steel brackets, each with holes sized and positioned to receive threaded rod and nuts. Installers run threaded rod from the overhead structure down through the bracket holes, securing the CR enclosure at the desired height with nuts above and below the bracket. This method distributes the load of the rack enclosure—and its equipment—to the structural ceiling rather than the tile grid, which is critical when the combined weight of the rack and AV equipment approaches or exceeds grid capacity. The CR222TRK is also useful in open-plenum or exposed ceiling environments where grid-based support is not available. Compatibility is confirmed with all four CR222 variants. Brackets are designed to work with standard threaded rod diameters commonly available from mechanical suppliers.

Key Features

• Structural Threaded Rod Support — Enables the CR222 enclosure to be suspended from the building structure via threaded rod, independent of the ceiling grid.

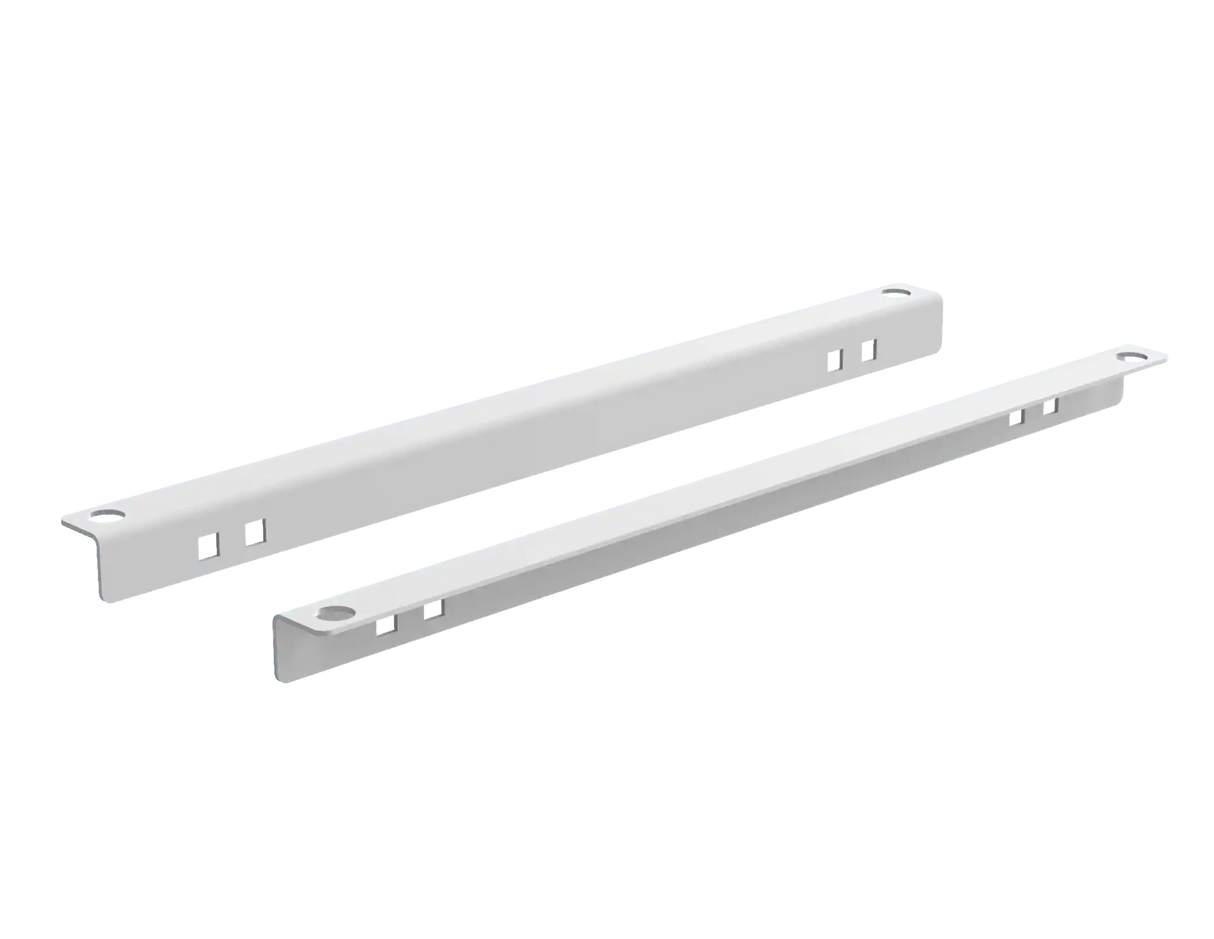

• Two-Bracket Kit — Includes two steel mounting brackets with pre-drilled holes for threaded rod and nut installation.
• Compatible with All CR222 Variants — Works with CR222, CR222P, CR222-NR, and CR222P-NR ceiling-mount rack models.
• Load Distribution — Transfers rack and equipment weight directly to structural members, reducing stress on the suspended ceiling grid.
• Open-Plenum Ready — Suitable for exposed ceiling environments where grid-based support is unavailable.
• 5-Year Warranty — Backed by Atlas IED's 60-month warranty from date of purchase.
