Atlas Sound CR222-NR 2' x 2' Ceiling-Mount Rack with 2RU, Standard-Width, AmbiTILT™ Shelf and Integrated AC Power Pack - Without Projector Pole Adapter

Product Overview

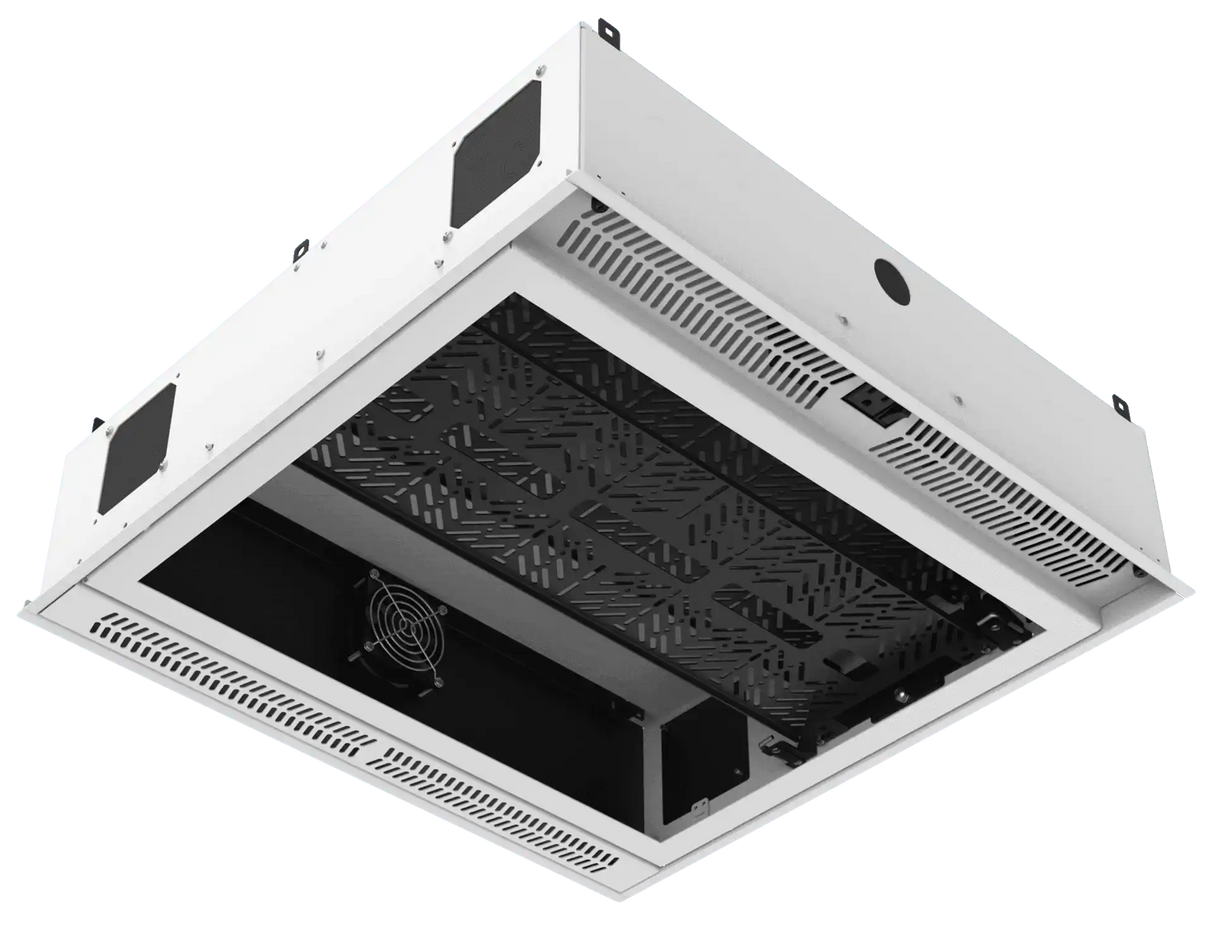

The AtlasIED CR222-NR is a plenum-rated ceiling-mount equipment rack that conceals AV electronics above a standard 2' x 2' suspended ceiling grid. Built for classroom and conference room AV installations, it pairs a 2RU standard-width AmbiTILT shelf with an integrated UL-listed AC power pack, putting switchers, amplifiers, and control processors directly above the projector or display they serve. The open-frame access door accepts a ceiling tile insert so the entire rack disappears into the ceiling plane. This model ships without the projector pole adapter for installations that do not require one.

Product Description

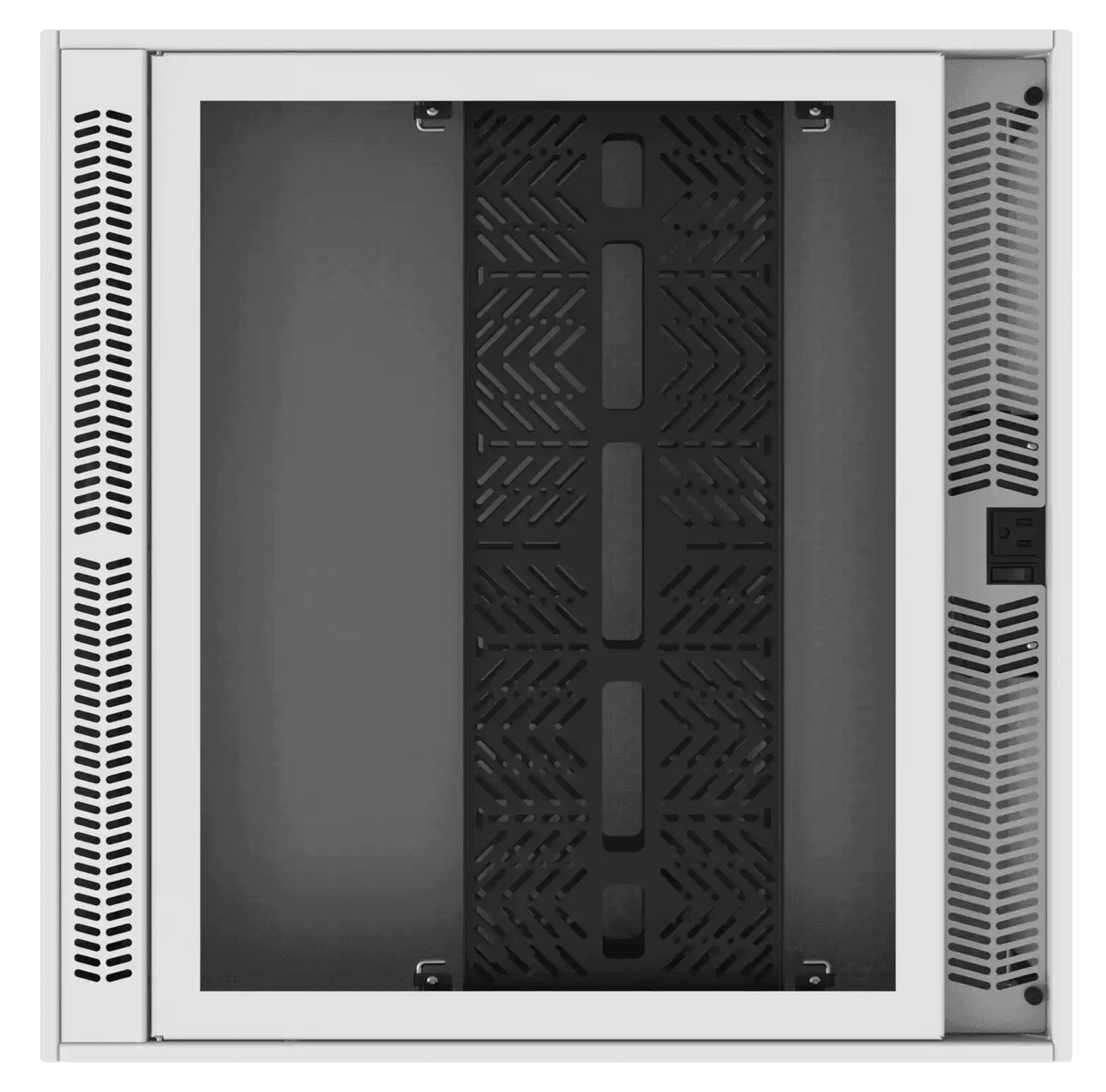

The CR222-NR plenum rack mounts AV equipment securely in the ceiling plenum inside a sealed, UL plenum-rated cabinet, freeing wall and credenza space in commercial meeting spaces. The hinged access door uses an open-frame design: the installer drops a ceiling tile cut-out into the frame, held by retainer tabs, so the rack blends into the reflected ceiling grid. Two retention thumb screws release the door, and attached safety cables protect against injury during service.

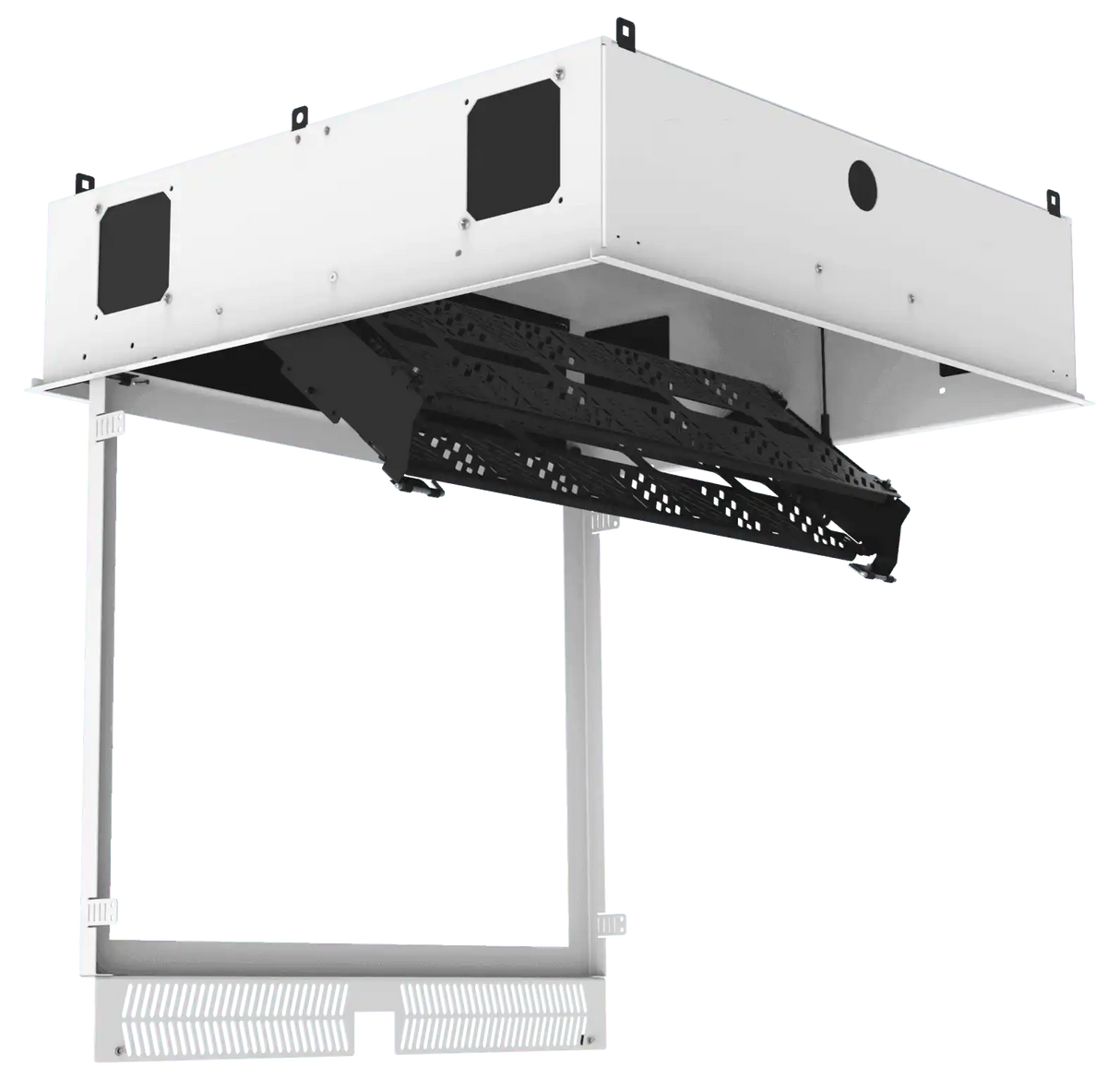

The AmbiTILT shelf mechanism is the standout for integrators who service ceiling AV equipment after commissioning. Quick-release cane bolts let the shelf tilt down from the front for loading, tilt down from the rear for access to rear-panel connectors, or release entirely from both ends and the safety cables for full shelf removal. The shelf provides universal mounting holes for bolting or tying down devices, and the optional CR222RR rack rail kit adds true 19-inch 2RU rack mounting.

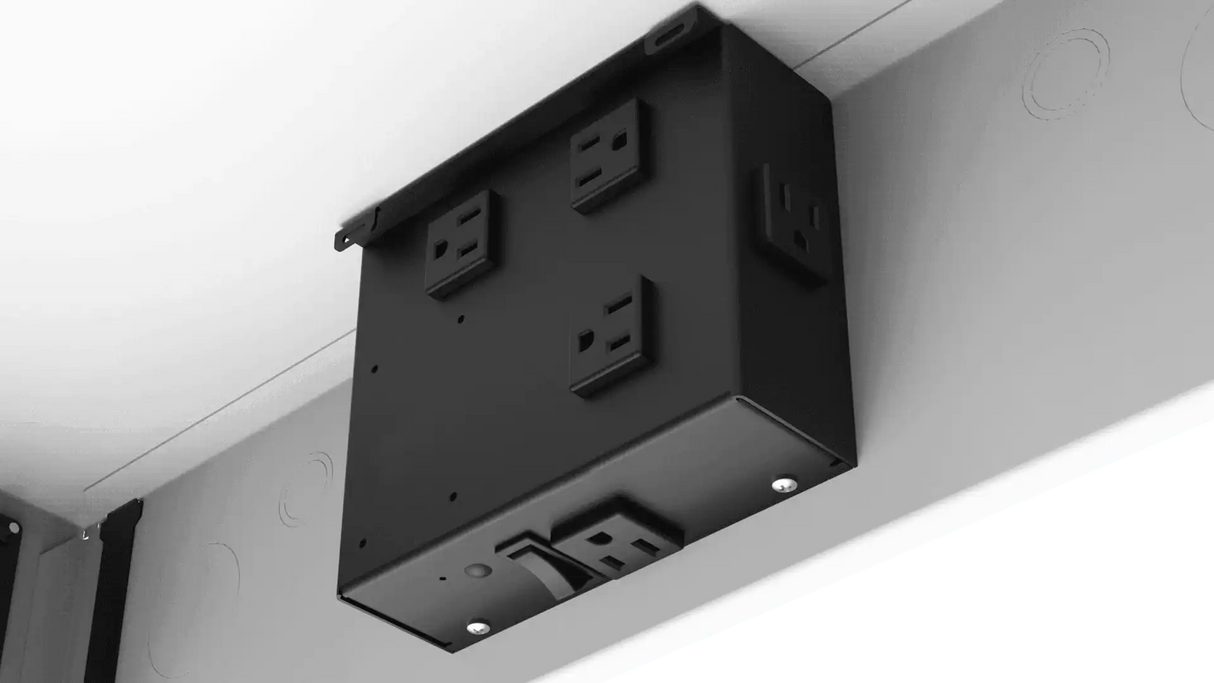

The integrated UL-listed power pack supplies five 15 A Edison outlets: four inside the cabinet for rack-mounted gear and one facing down and exposed when the door is shut, ideal for powering a data projector below. All outlets switch from a single exposed on/off control, and a whisper-quiet 24 dB SPL fan assembly cools the enclosure. Cabinet side panels carry four removable 4-inch cover plates with 1-1/2", 1/2", and 3/4" conduit knockouts, and installers can substitute custom plates with HDMI, Ethernet, XLR, NL4, or RCA connectors for clean AV system integration. Built from 18 AWG powder-coated steel at AtlasIED's Texas manufacturing facility, the CR222-NR supports threaded-rod suspension (optional CR222TRK kit), aircraft-cable suspension (optional CR2CK kit), or third-party mounts via extruded mounting ears.

Key Features

• 2RU Plenum-Rated Ceiling Rack — Sealed UL plenum-rated cabinet mounts AV equipment safely above a standard 2' x 2' drop-ceiling grid.
• AmbiTILT Shelf Mechanism — Shelf tilts down from the front or rear, or removes completely, so one technician can load and service equipment from a ladder.
• Integrated AC Power Pack — UL-listed power pack provides five 15 A outlets, including one downward-facing exposed outlet for projector power.
• Ceiling Tile Concealment Door — Open-frame door accepts a ceiling tile cut-out with retainer tabs, hiding the rack within the ceiling design.
• Whisper-Quiet Cooling — 24 dB SPL A-weighted fan assembly keeps equipment cool without audible noise in the room below.
• Conduit and Connector Punch-Outs — Four removable side cover plates with 1/2", 3/4", and 1-1/2" knockouts accept conduit or custom connector plates.
• Three Mounting Methods — Supports threaded rod (CR222TRK), aircraft cable (CR2CK), or third-party hardware via extruded mounting ears.
• Made in USA Construction — 18 AWG powder-coated steel built in AtlasIED's Texas facility for long service life.
• Optional Rack Rail Kit — The CR222RR kit converts the shelf to standard 19-inch 2RU rack rail mounting.

Typical Applications

• Conference rooms and boardrooms concealing switchers and amplifiers above the table
• Training rooms with ceiling-mounted projectors needing local power and signal gear
• Multi-purpose rooms and commercial meeting spaces with clean-ceiling requirements
• Huddle rooms where wall and furniture space is unavailable for equipment
• Government spaces requiring secure, out-of-sight equipment enclosures

Technical Specifications

Frequently Asked Questions

Does the CR222-NR include a projector pole adapter?
No. The -NR designation indicates this model ships without the projector pole adapter, for installations that mount the projector separately or do not need pole pass-through.

Can I mount standard 19-inch rack equipment?
Yes, with the optional CR222RR rack rail kit, which provides two rack units of standard 19-inch rail mounting. The included shelf also has universal holes for bolting down non-rack devices.

Is it safe to install in a ceiling plenum?
Yes. The sealed cabinet is UL plenum rated for installation above standard ceiling-tile grids, and the integrated power pack is UL listed.

How is the rack suspended?
Three methods are supported: threaded rod with the optional CR222TRK rail kit (preferred for stability), aircraft cable with the optional CR2CK kit, or third-party mounts attached to the extruded mounting ears. Rod, bolts, and clamps are installer-supplied.

How does a projector get power?
One of the five 15 A outlets faces downward and remains exposed when the door is closed, so a ceiling projector plugs in directly below the rack.

Does this model include PowerAWAKE?
No. The CR222-NR does not include PowerAWAKE technology; all five outlets switch together via the exposed on/off switch.

What warranty applies?
AtlasIED warrants the CR222-NR for 60 months from the date of purchase, and Creation Networks supports your order before and after the sale.
