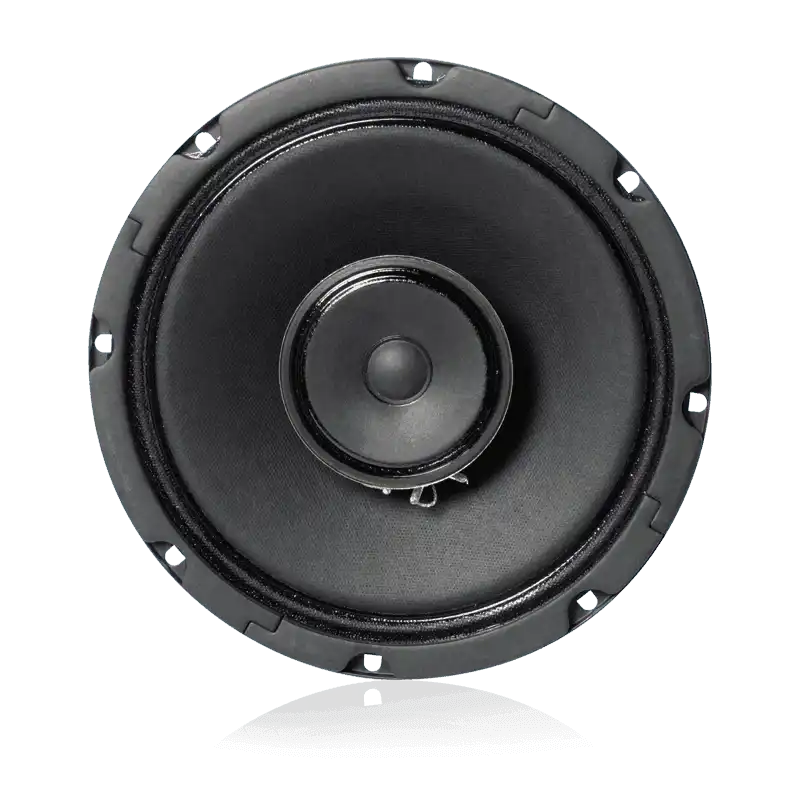

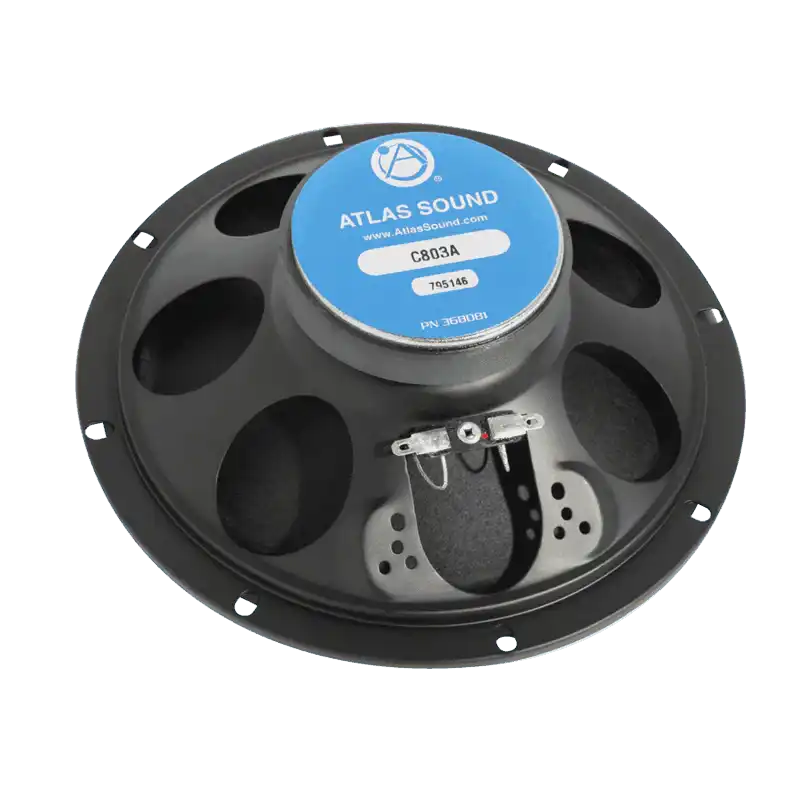

Atlas Sound C803AT167 – 8" In-Ceiling Coaxial Speaker with 16W 70V Transformer

Product Overview

The Atlas Sound C803AT167 is a UL Listed 8" in-ceiling coaxial loudspeaker with a factory-installed 16-watt 70.7V line-matching transformer, designed for commercial distributed audio, background music, and paging systems. It delivers a 40 Hz to 15.5 kHz frequency response with 120° dispersion and a peak sensitivity of 98 dB, making it effective for high-quality sound reproduction in retail, hospitality, office, and institutional settings. The C803A coaxial driver features a post-mounted tweeter and is compatible with a wide range of AtlasIED baffles, plaster rings, and enclosures.

Product Description

The C803AT167 combines the proven C803A coaxial driver with a 70.7V 16W transformer offering three power taps (4, 8, and 16 watts) for flexible zone-level management in 70V distributed systems. The 8" (203 mm) diameter low-frequency reproducer uses a treated paper cone with a 10 oz. (260g) ceramic magnet for balanced, full-range bass. The 3" (76 mm) high-frequency reproducer uses a 2.35 oz. (67g) ceramic magnet and is post-mounted, which adds structural strength to the assembly and provides a cleaner aesthetic appearance compared to horn-loaded or surface-mounted tweeters. The two drivers are coupled via a built-in passive crossover network, eliminating the need for external crossover components. The C803AT167 covers 40 Hz to 15.5 kHz, providing full-range background music performance and clear voice intelligibility for paging. The 120° dispersion pattern allows for wider speaker spacing while maintaining even coverage, reducing fixture count in large open-plan ceilings. Peak sensitivity of 98 dB (at 1W/1m) and 95 dB average give the unit high output efficiency relative to its power rating, reducing amplifier load requirements. The unit mounts to AtlasIED baffles and enclosures; the optimum sealed enclosure volume is 0.36 cu. ft. Optional HydroPhobic protective coating is available for installations in high-humidity or splash-prone environments such as natatoriums and commercial kitchens. UL Safety Listed to 1480.

Key Features

• 16-Watt 70.7V Transformer — Power taps at 4, 8, and 16W for flexible 70V zone assignment.
• 98 dB Peak Sensitivity — High output efficiency reduces amplifier power requirements.
• 40 Hz – 15.5 kHz Frequency Response — Full-range performance for background music and voice paging.
• 120° Dispersion Pattern — Wide coverage allows greater speaker spacing in open-plan ceilings.
• Post-Mounted 3" Tweeter — Adds structural strength and provides a clean, attractive appearance.
• Built-In Passive Crossover — Integrated crossover network eliminates need for external components.
• Coaxial Driver Architecture — Colocated woofer and tweeter for consistent off-axis response and a single point source.
• Compatible with AtlasIED Baffles and Enclosures — Optimum sealed enclosure volume is 0.36 cu. ft.
• Optional HydroPhobic Coating — Available for high-humidity environments (not included).
• UL Listed to UL 1480 — Safety-listed for commercial audio system use.
