Atlas Sound C10AT72 – 8-Inch Dual Cone In-Ceiling Speaker with 25V/70V 4W Transformer, Pair (Black)

Product Overview

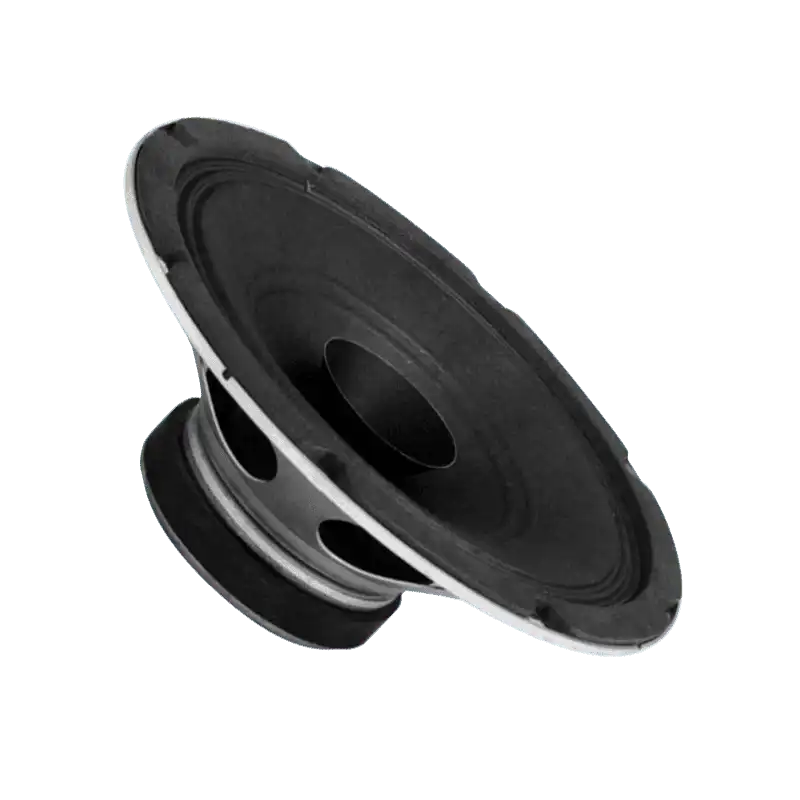

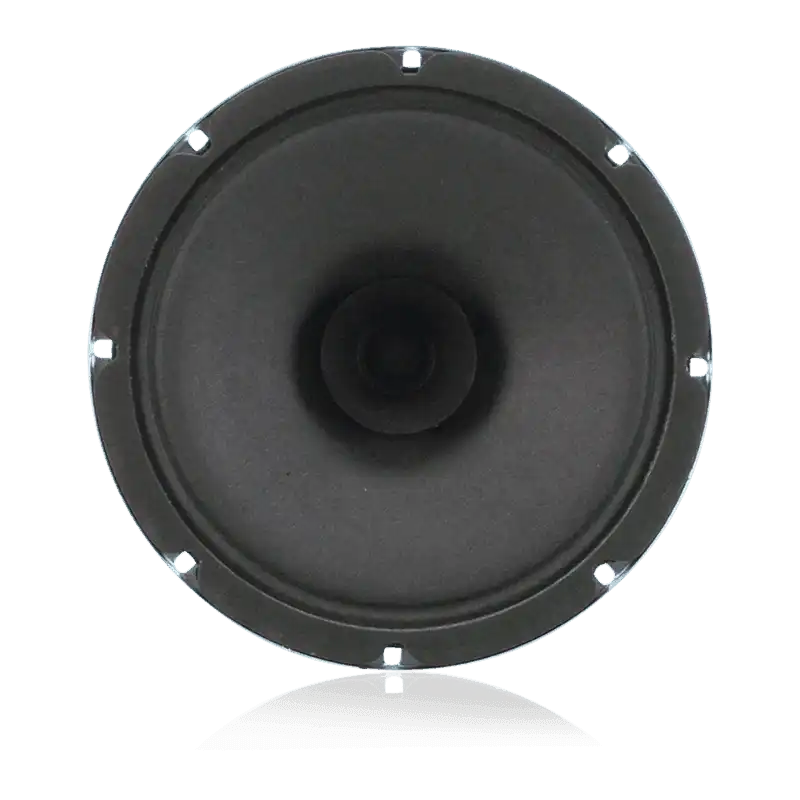

The Atlas Sound C10AT72 is an 8-inch dual cone in-ceiling loudspeaker with a factory-installed LT-72 25V/70V 4-watt line-matching transformer, sold as a pair in black. Featuring a curvilinear treated paper cone, 10 oz ceramic magnet, and a 1-inch copper voice coil, the C10AT72 delivers 97dB sensitivity and 105-degree dispersion for general-purpose commercial audio distribution. UL Listed to UL1480A and UL2043, it is suitable for commercial, industrial, and institutional installations and mounts to a wide selection of AtlasIED round and square baffles.

Product Description

The C10AT72 is part of the AtlasIED C10A series of acoustically proven 8-inch in-ceiling speakers engineered for multi-purpose distributed audio systems. The dual cone design delivers full-range performance from 100Hz to 10kHz with a 105-degree wide dispersion pattern that provides even sound coverage across rooms of varying sizes. The 10 oz ceramic magnet provides reliable magnetic circuit performance, while the curvilinear treated paper cone reduces harmonic distortion for cleaner audio reproduction. A 1-inch diameter copper voice coil wound on a black anodized aluminum former dissipates heat efficiently during extended operation, supporting the 25-watt continuous power rating. The factory-installed LT-72 transformer supports 25V and 70V distributed audio systems with power taps at 0.25, 0.5, 1, 2, and 4 watts for precise load balancing on multi-speaker circuits. This pair is finished in black for installations requiring a dark ceiling appearance. The C10AT72 is UL Listed to UL1480A and UL2043, meeting fire safety requirements for plenum and general ceiling installations. Compatible with a wide range of AtlasIED round and square baffles, the C10A series allows specifiers to choose the enclosure type that best fits the acoustic and aesthetic requirements of the space. A 60-month warranty applies from the date of purchase.

Key Features

• 8-Inch Dual Cone Design — Wide 105-degree dispersion for even coverage in commercial spaces.
• 97dB Sensitivity — Efficient output for distributed audio systems with moderate amplifier power.
• Factory-Installed LT-72 Transformer — Supports 25V and 70V operation with taps at 0.25, 0.5, 1, 2, and 4W.
• Curvilinear Treated Paper Cone — Reduces harmonic distortion for cleaner voice and music reproduction.
• 10 oz Ceramic Magnet — Reliable magnetic circuit performance for consistent audio quality.
• 1-Inch Copper Voice Coil on Anodized Aluminum Former — Efficient heat dissipation for extended continuous operation.
• UL Listed (UL1480A and UL2043) — Certified for plenum and general ceiling installations in commercial buildings.
• Compatible with Multiple AtlasIED Baffles — Mounts to a wide selection of round and square enclosures and baffles.
• Sold as a Pair, Black Finish — Two speakers per order in black for dark ceiling installations.
