Atlas Sound BT720-4 – 4" In-Ceiling Speaker Package with 25V/70V Transformer and T720-4 Baffle
Atlas Sound BT720-4 – 4" In-Ceiling Speaker Package with 25V/70V Transformer and T720-4 Baffle is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound BT720-4 – 4" In-Ceiling Speaker Package with 25V/7...
Product Overview

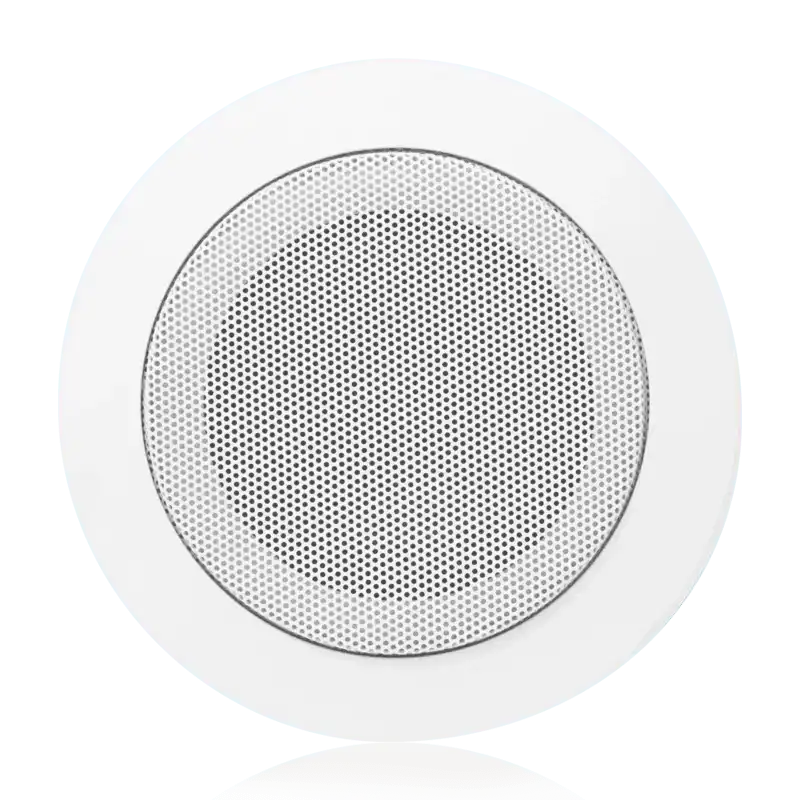

The Atlas Sound BT720-4 is a factory-assembled 4" in-ceiling speaker package that combines the FC104 high-compliance loudspeaker, a dual-voltage 25V/70.7V transformer, and the T720-4 baffle into a single ready-to-install unit for commercial paging and background music systems. Engineered for distributed 70V audio applications in offices, retail spaces, healthcare facilities, and educational buildings, the BT720-4 delivers wide-angle sound dispersion with 94dB sensitivity to achieve reliable coverage with fewer loudspeakers. BAA and TAA compliant for government and institutional procurement.
Product Description
The BT720-4 is part of Atlas Sound's B Series factory-assembled in-ceiling loudspeaker packages, designed to reduce job site installation time and simplify ordering for commercial AV contractors. The package incorporates the Atlas Sound FC104 high-compliance 4" loudspeaker, which is a proven driver recognized for full-range voice and music reproduction in paging and background music applications. The 10-ounce ceramic magnet and high-compliance damped cone deliver strong low-frequency reproduction and smooth extended response across the 150Hz to 17kHz frequency range. Wide-angle 135° dispersion (at −6dB, 2kHz octave band) allows broad coverage in open-plan commercial spaces without requiring excessive speaker placement density. The factory-mounted dual-voltage 25V/70.7V transformer includes power taps at 0.25, 0.5, 1, 2, and 4 watts for precise zone-level management in multi-zone distributed audio systems. The T720-4 baffle included in the package provides a clean white-finish ceiling surround that integrates neatly into standard suspended ceiling tile applications. The torsion spring baffle mounting simplifies installation in ceiling tiles without additional hardware. One EZ-Mount model is available in the B Series for suspended ceiling tile installations that do not require a protective enclosure; EZ-Mount brackets and support rails are pre-mounted and adjust vertically for varying ceiling depths. All BT720-4 packages ship fully assembled and ready for installation. cUL certified for code-compliant commercial installations. BAA and TAA compliant. Optional hydrophobic environmental treatment is available for humid environments.
Key Features
- Factory-Assembled Speaker Package — Loudspeaker, transformer, and baffle shipped pre-assembled to reduce installation time and ordering complexity.
- Atlas Sound FC104 4" High-Compliance Driver — Proven loudspeaker for full-range voice and music reproduction in paging and BGM applications.
- 135° Wide Dispersion — Broad coverage angle reduces speaker count needed for uniform audio distribution in open-plan spaces.
- 94dB Sensitivity — Efficient driver performance supports distributed 70V system designs with lower amplifier power requirements.
- Dual-Voltage 25V/70.7V Transformer — Factory-mounted with multi-tap outputs at 0.25, 0.5, 1, 2, and 4 watts for flexible zone-level control.
- T720-4 Baffle Included — Clean white ceiling surround with torsion spring mounting for standard suspended tile installations.
- cUL Certified — Safety certification for code-compliant commercial and institutional construction projects.
- BAA and TAA Compliant — Meets government and federally funded procurement requirements.
- Optional Hydrophobic Coating — Environmental treatment available for installations in areas with elevated moisture exposure.
Technical Specifications
| Specification | Value |
|---|---|
| Model | BT720-4 |
| Speaker Type | 4" (102mm) High Compliance Loudspeaker |
| Sensitivity | 94dB (at 1W/1m) |
| Frequency Response | 150Hz – 17kHz |
| Power Taps | 0.25, 0.5, 1, 2, 4 Watts |
| Dispersion | 135° / −6dB at 2kHz Octave Band |
| Diameter | 4" (10.16 cm) |
| Depth | 3.64" (62.5mm) |
| Transformer Voltage | 25V / 70.7V |
| Safety Listing | cUL Certified |
| Compliance | BAA, TAA |
| Warranty Period | 60 months from date of purchase |
