Atlas Sound BMT95-8-7 – Blind Mount 8" Enclosure 7" Deep
Product Overview

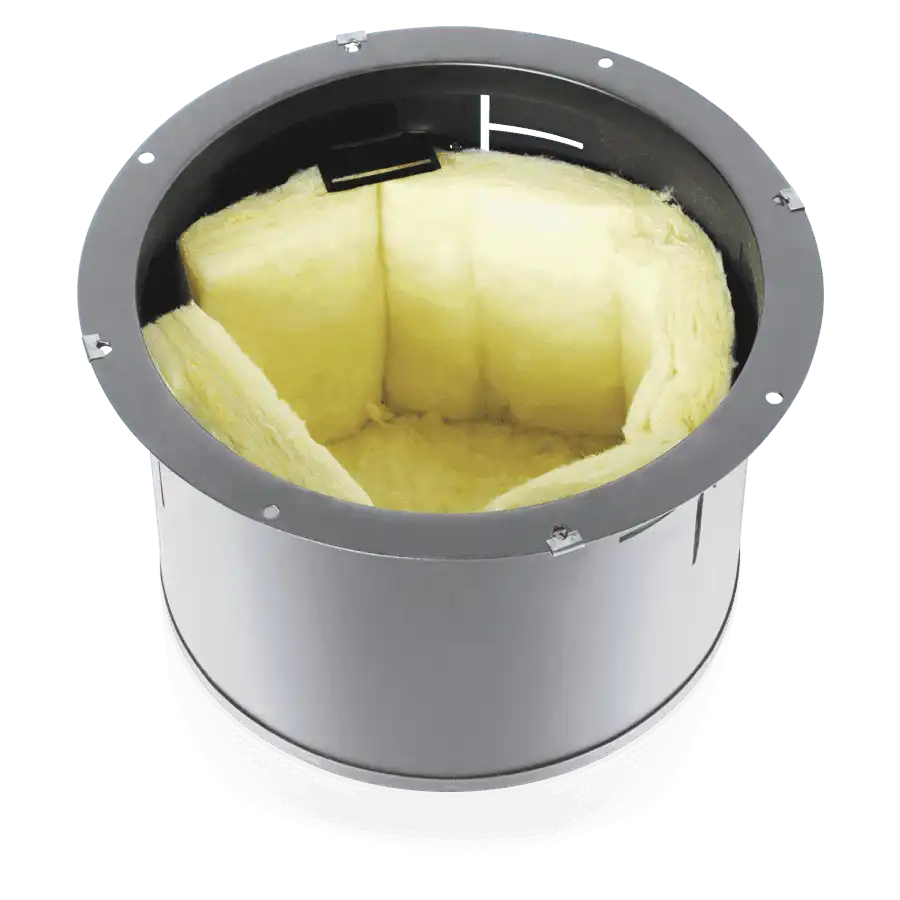

The Atlas Sound BMT95-8-7 is a blind-mount back enclosure designed for 8-inch loudspeaker installations in retrofit ceiling applications where above-ceiling access is not available. Covered under U.S. Patent #4,673,149, the BMT95-8-7 uses a telescoping mounting ear system that installs entirely from below the ceiling, securing the enclosure without requiring above-ceiling work. The extra-depth 7-inch configuration increases internal volume for improved bass extension compared to shallower enclosures.
Product Description
The BMT95-8-7 enclosure accommodates a wide range of AtlasIED baffles including the (T)51-8, (T)60-8(W), (T)61-8W, (T)62-8, 63-8, 67-8(W), 68-8W, 170-8, G22-8, T610-8W, T710-8, T720-8A, M222(W), TM222W, P900, and 60-R models. All necessary hardware is included in the box, with mounting ears that telescope outward from inside the enclosure and adjust vertically to accommodate ceiling thicknesses ranging from 1/2 inch (13 mm) to 1-3/8 inches (35 mm). The enclosure features CRS (cold-rolled steel) construction with a textured black epoxy finish. Three 1/2-inch (13 mm) conduit knockouts on the backplate provide flexible cable routing. Torsion-spring receptacles are built into the enclosure for quick grille installation, and J-nuts on the enclosure return accommodate surface-mounting grilles. High-density fiberglass fill is included to damp internal resonance and improve acoustic performance. The unit is BAA and TAA compliant, making it suitable for government and public-sector projects requiring domestic sourcing.
Key Features
- Blind-Mount Installation (Patent #4,673,149) — Full installation from below the ceiling without above-ceiling access, critical for retrofit projects.
- Telescoping Mounting Ears — Adjusts vertically to fit ceiling thicknesses from 1/2" to 1-3/8", accommodating a wide range of ceiling assemblies.
- 7" Extra-Depth Design — Greater internal volume compared to standard enclosures, supporting extended low-frequency response.
- High-Density Fiberglass Fill — Reduces internal resonance and improves overall acoustic performance.
- Torsion-Spring Grille Receptacles — Allows quick, tool-free mounting of torsion-spring grilles.
- Three 1/2" Conduit Knockouts — Flexible backplate wiring entry points for clean cable routing.
- BAA/TAA Compliant — Meets Buy America Act and Trade Agreements Act requirements for government procurement.
- Broad Baffle Compatibility — Accepts a wide range of AtlasIED 8-inch baffles for system flexibility.
Technical Specifications
| Specification | Value |
|---|---|
| Depth | 7" (17.78 cm) |
| Diameter | 10 1/8" (25.72 cm) |
| Ceiling Thickness Range | 1/2" (13 mm) to 1 3/8" (35 mm) |
| Conduit Knockouts | 3 × 1/2" (13 mm) |
| Construction | CRS, Textured Black Epoxy Finish |
| Shipping Weight | 5.40 lbs (2.45 kg) |
| Compliance | BAA, TAA |
| Warranty | 60 months from date of purchase |
