Atlas Sound BBWP-S4K1B – BlueBridge DSP Wall Controller, 4 Buttons + Level

Product Overview

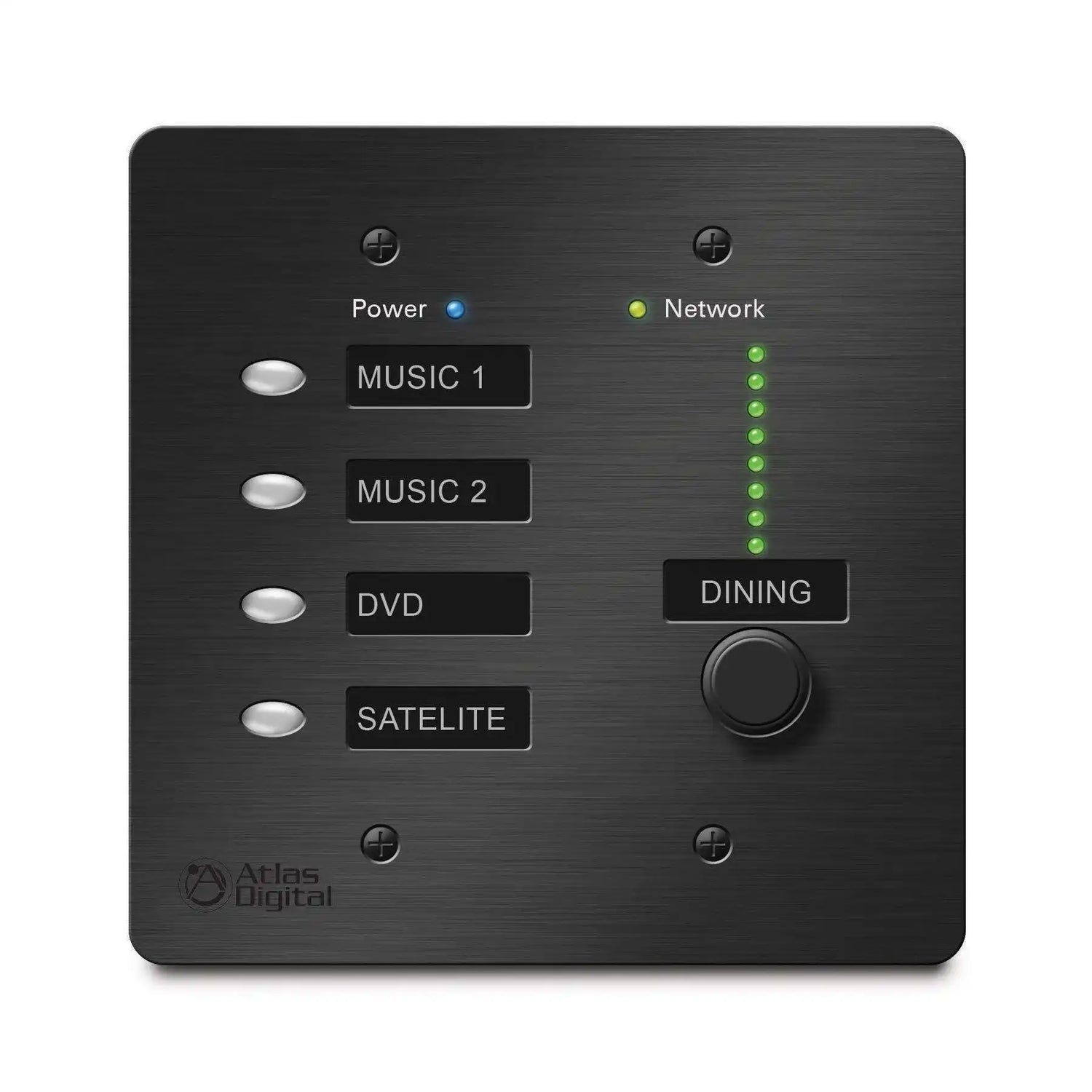

The Atlas Sound BBWP-S4K1B is a BlueBridge DSP wall controller designed for commercial AV installations that require local, user-accessible control of audio presets and volume levels. It provides four programmable buttons and a single level control knob with an LED ladder indicator, mounted in a 2-gang wall plate form factor. AV integrators use the BBWP-S4K1B to give end users straightforward control over BlueBridge DSP-managed audio zones without requiring access to a rack or a software interface. It is PoE-powered and connects to the BlueBridge system over a standard Ethernet connection, simplifying wiring in conference rooms, training rooms, and multi-zone commercial audio environments.

Product Description

The BBWP-S4K1B is part of AtlasIED's BlueBridge DSP wall controller family. Each of the four buttons can be independently assigned to trigger preset selections, matrix connects, mute functions, or other BlueBridge-defined actions using BlueBridge Designer software. The single level control supports virtual level value assignment and can be configured to stack multiple actions, giving integrators flexibility to map it to a single zone or to multiple functions simultaneously. The aluminum front panel provides durability in commercial environments, and the five labeled slots with plastic covers allow clean, customized button labeling for end user clarity.

Power is delivered via PoE (48VDC) over the same RJ45 Ethernet connection used for control data, eliminating the need for a separate power run in most installations. A 5V DC 1A power supply is included for non-PoE deployments. A rear-mounted IP reset push button allows field recovery of the network configuration without tools. Power and network status indicator LEDs on the front panel provide at-a-glance diagnostics. The BBWP-S4K1B fits a standard 2-gang back box and is available in black (this SKU) or white (BBWP-S4K1W). The BlueBridge Designer II software (Windows and macOS) is available as a free download from AtlasIED for programming and configuration.

Key Features

• Four Programmable Buttons — Each button can be assigned to preset selections, matrix connect, mute, or other BlueBridge DSP functions via BlueBridge Designer software.
• Single Level Control with LED Ladder Indicator — Physical rotary level control provides intuitive volume adjustment with visual feedback via an LED ladder display.
• PoE Powered — Accepts 48VDC PoE over the RJ45 connection, eliminating separate power wiring in most deployments.
• One-Cable Installation — A single Cat cable carries both power and control data to the wall plate, simplifying in-wall wiring.
• Aluminum Front Panel — Commercial-grade aluminum construction provides durability in wall-mounted applications.
• 5 Label Slots with Plastic Covers — Customizable label inserts allow clear, professional button identification for end users.
• IP Reset Push Button — Field-accessible rear button enables network configuration reset without removing the unit.
• Power and Network Status LEDs — Front panel status indicators allow rapid diagnostic checks during commissioning and service.
• 2-Gang Back Box Compatible — Fits standard US 2-gang electrical boxes, integrating with conventional commercial construction.
• Available in Black or White — Black finish (BBWP-S4K1B) and white finish (BBWP-S4K1W) options available to match room decor.

Typical Applications

• Conference room
• Boardroom
• Training room
• Multi-purpose room
• Commercial meeting space
• House of worship
• All-hands room

Technical Specifications

Frequently Asked Questions

Q: What DSP platform does the BBWP-S4K1B work with?

A: The BBWP-S4K1B is designed exclusively for use with AtlasIED's BlueBridge DSP platform. It is programmed and configured using BlueBridge Designer II software, available as a free download for Windows and macOS.

Q: Does the BBWP-S4K1B require a separate power supply?

A: No. The BBWP-S4K1B can be powered via PoE (48VDC) over the same Ethernet cable used for control. A 5V DC 1A power supply is also included for installations without PoE-capable switches or injectors.

Q: How are the four buttons programmed?

A: Buttons are programmed using BlueBridge Designer II software. Each button can be individually assigned to trigger preset changes, matrix connect events, mute functions, or other BlueBridge system actions. The level control can also have multiple stacked actions assigned to a single physical control.

Q: What electrical box does the BBWP-S4K1B require?

A: The BBWP-S4K1B mounts in a standard US 2-gang electrical back box, which is commonly available from electrical supply distributors and used in standard commercial construction.

Q: Is a white version of this controller available?

A: Yes. The BBWP-S4K1W is the white-finish version of this controller and offers identical functionality. Both finish options are available through Creation Networks.

Q: How does the IP reset function work?

A: A push button on the rear of the unit initiates an IP reset, which restores the network configuration to defaults. This allows field troubleshooting or re-commissioning without removing the unit from the wall or accessing software.

Q: What is the warranty on the BBWP-S4K1B?

A: AtlasIED BlueBridge wall controllers are covered under AtlasIED's standard commercial warranty. Contact Creation Networks for warranty registration and support details.
