Atlas Sound BBWP-S4B – BlueBridge DSP 4-Button Wall Controller

Product Overview

The AtlasIED BBWP-S4B is a four-button wall controller designed for use with the BlueBridge DSP product line, enabling occupant-level control of preset selections, matrix routing, mute functions, and button-triggered actions in commercial AV installations. Powered by PoE+ or an included 5V DC power supply, this DSP wall panel controller mounts in a standard 2-gang back box and provides an intuitive interface for conference rooms, boardrooms, and multi-purpose rooms where room users need direct control over audio system presets.

Product Description

The BBWP-S4B is engineered as a user-facing interface for AtlasIED BlueBridge DSP processors, translating button presses into preset changes, matrix connect/disconnect commands, mute toggles, or stacked multi-action sequences. Each of the four buttons can be independently configured using BlueBridge Designer software, allowing AV programmers to virtually assign level values and stack multiple DSP actions to a single button press — providing flexibility in how room controls are presented to non-technical end users.

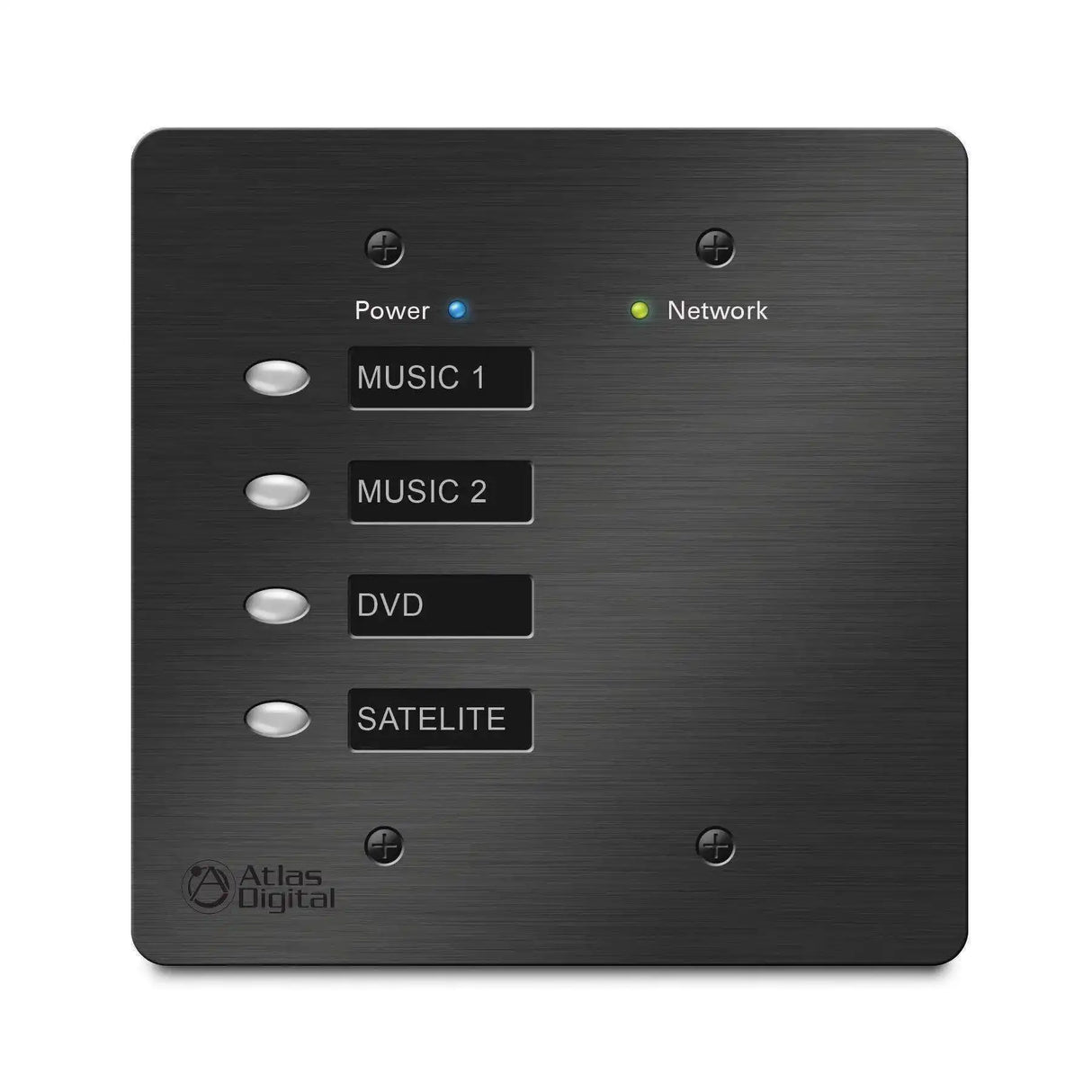

The controller features four label slots with plastic protective covers, allowing installers to print or write custom labels identifying each button's function for the end user. Power and network status LEDs provide at-a-glance indication of connectivity and system health, reducing troubleshooting time during commissioning and service calls. An RJ45 Ethernet connector links the controller to the network for communication with the BlueBridge DSP processor, and a 2-pin detachable Euro connector provides an external DC power input as an alternative to PoE. An IP reset push button allows field technicians to reset the controller's network address without removing the unit from the wall. The aluminum front panel provides a durable, professional appearance consistent with commercial interior finishes.

Key Features

• Four Independent Button Controls — Each button is independently configurable via BlueBridge Designer software to trigger preset changes, matrix routing, mute functions, or stacked multi-action sequences.
• PoE+ or 5V DC Power — Accepts 48V DC Power over Ethernet or the included 5V DC 1A power supply, providing installation flexibility where PoE+ infrastructure is unavailable.
• RJ45 Ethernet Connectivity — Standard RJ45 connector integrates with existing IP network infrastructure for communication with BlueBridge DSP processors.
• Power and Network Status LEDs — Indicator LEDs provide immediate visual feedback on power and network connection status, simplifying system commissioning and diagnostics.
• 4 Label Slots with Protective Covers — Customizable label slots with clear plastic covers allow field labeling of each button's assigned function for end users.
• Aluminum Front Panel — Durable aluminum faceplate provides a professional appearance and long-term reliability in commercial AV environments.
• IP Reset Push Button — Field-accessible IP reset button allows network address reset without removing the controller from the wall.
• 2-Gang Back Box Compatible — Standard 2-gang back box mounting ensures compatibility with existing electrical box infrastructure in commercial spaces.
• 2-Pin Detachable Euro Connector — External power connector provides an alternative to PoE for environments where network switches do not support PoE+.

Typical Applications

• Conference room audio preset control
• Boardroom DSP wall panel installation
• Multi-purpose room audio zone control
• Training room AV system control
• House of worship preset selection
• Commercial meeting space BlueBridge DSP interface

Technical Specifications

Frequently Asked Questions

Q: Is the BBWP-S4B compatible with all AtlasIED BlueBridge DSP processors?

A: The BBWP-S4B is designed specifically for the AtlasIED BlueBridge DSP product line. Confirm compatibility with the specific BlueBridge processor model in your installation before ordering.

Q: Does the BBWP-S4B require PoE to operate?

A: No. The BBWP-S4B includes a 5V DC 1A power supply as an alternative to PoE. It also accepts 48V DC PoE from a PoE-capable network switch or injector.

Q: What back box size is required for installation?

A: The BBWP-S4B mounts in a standard 2-gang electrical back box, which is the most common commercial wall plate mounting standard.

Q: Can multiple actions be assigned to a single button?

A: Yes. Using BlueBridge Designer software, AV programmers can stack multiple actions (such as preset changes, level adjustments, matrix connects, and mute commands) to a single button press.

Q: Is a white version of this controller available?

A: Yes. A white version is available from AtlasIED for installations where black does not match the room decor.

Q: How is the controller's IP address reset in the field?

A: The BBWP-S4B includes a dedicated IP reset push button on the unit itself, allowing field technicians to reset the network address without unmounting the controller from the wall.
