Atlas Sound BBWP-K1W – BlueBridge DSP Level Controller (White)

Product Overview

The AtlasIED BBWP-K1W is a single-channel level controller for the BlueBridge DSP product line, providing occupant-level adjustment of audio processing parameters including gain, threshold, and frequency response directly from the wall. In white, this BlueBridge wall panel controller mounts in a standard 2-gang back box and is suited for conference rooms, training rooms, and commercial multi-purpose rooms where room users need intuitive volume or parameter adjustment without access to the DSP processor itself.

Product Description

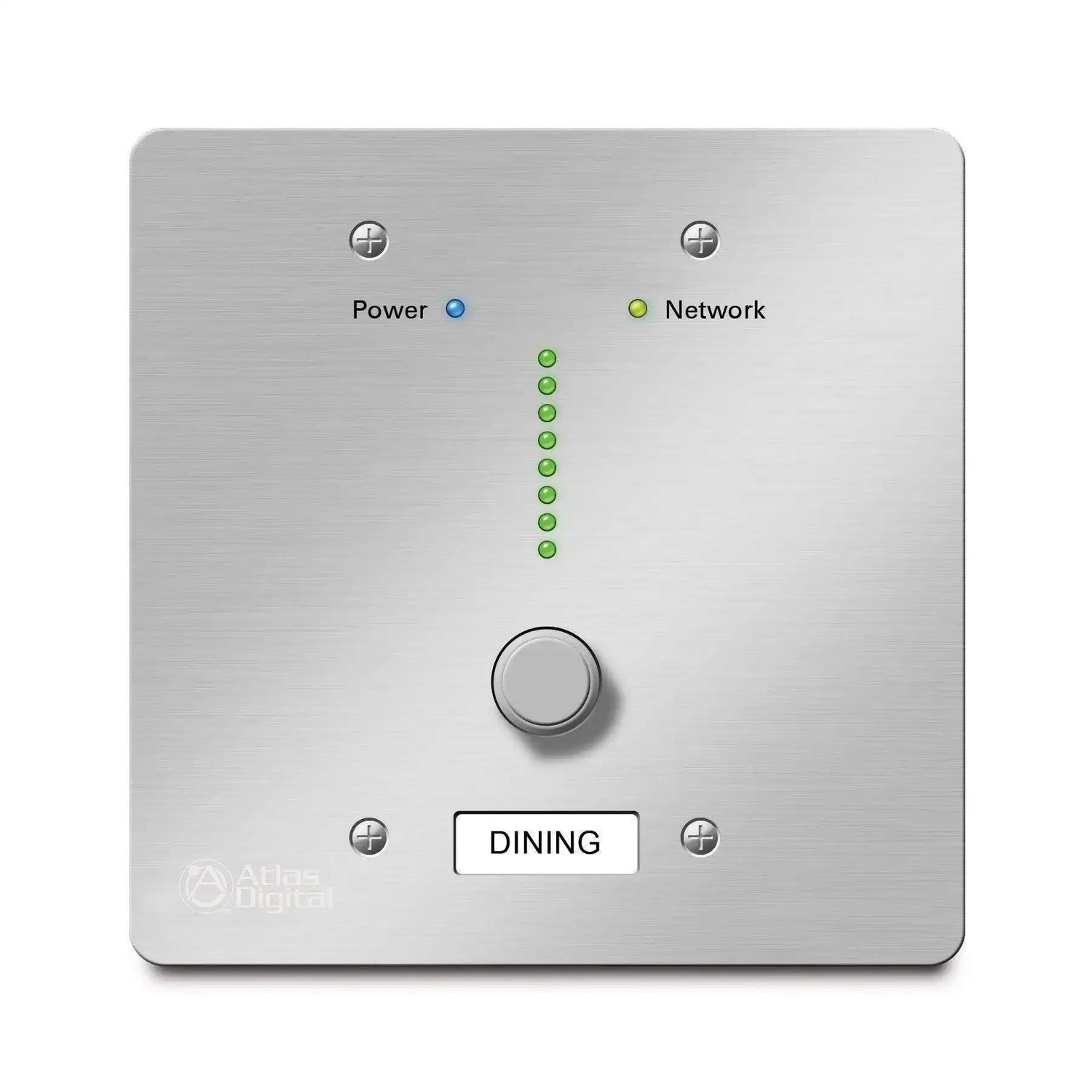

The BBWP-K1W gives end users a familiar physical level control interface for adjusting audio parameters on AtlasIED BlueBridge DSP processors. Using BlueBridge Designer software, AV programmers can virtually assign the controller to any adjustable parameter — such as zone volume, microphone gain, threshold, or equalizer frequency — and can stack multiple DSP actions to a single control movement for sophisticated control scenarios. The rotary level control is accompanied by an LED ladder level indicator, giving users immediate visual feedback on the current setting without requiring access to the system software.

The white aluminum front panel integrates cleanly with standard commercial wall finishes. A single label slot with a clear plastic protective cover allows installers to identify the control's function at the installation site. Power and network status LEDs provide at-a-glance diagnostics for commissioning and service, and an RJ45 Ethernet connector ties the unit to the IP network for BlueBridge DSP communication. A 2-pin detachable Euro connector provides an external DC power input where PoE is not available, and an IP reset push button enables field network address reset without removing the unit. The BBWP-K1W is also available in black (BBWP-K1B) for dark-finish installations.

Key Features

• Single Rotary Level Control — Physical rotary control allows end users to adjust gain, threshold, frequency, or any assignable BlueBridge DSP parameter without software access.
• LED Ladder Level Indicator — Visual LED ladder display provides immediate feedback on the current level setting adjacent to the rotary control.
• PoE+ or 5V DC Power — Accepts 48V DC PoE from the network or the included 5V DC 1A power supply for installations without PoE-capable switches.
• RJ45 Ethernet Connectivity — Standard RJ45 connector integrates with existing commercial network infrastructure for BlueBridge DSP communication.
• Power and Network Status LEDs — Indicator LEDs confirm power and network connectivity at a glance, reducing commissioning and service call time.
• Single Label Slot with Protective Cover — Customizable label slot with clear plastic cover allows field identification of the control's assigned function.
• White Aluminum Front Panel — Durable aluminum faceplate in white finish integrates with standard commercial wall plate aesthetics.
• IP Reset Push Button — Field-accessible button resets the network IP address without unmounting the unit from the wall.
• 2-Gang Back Box Compatible — Mounts in standard 2-gang electrical back boxes for straightforward integration with commercial electrical infrastructure.
• Also Available in Black — The BBWP-K1B is the black-finish version for installations requiring a darker aesthetic.

Typical Applications

• Conference room volume control
• Boardroom audio level adjustment
• Training room DSP parameter control
• Multi-purpose room zone volume
• Commercial meeting space BlueBridge interface
• House of worship zone level control

Technical Specifications

Frequently Asked Questions

Q: What parameters can the BBWP-K1W control?

A: Using BlueBridge Designer software, the rotary control can be assigned to any adjustable parameter in the BlueBridge DSP processor, including zone gain, microphone gain, threshold, frequency adjustment, and other processing values. Multiple actions can also be stacked to a single control movement.

Q: Does the BBWP-K1W require PoE?

A: No. The BBWP-K1W includes a 5V DC 1A power supply. It also accepts 48V DC PoE from a compatible network switch or injector, giving installers flexibility based on available infrastructure.

Q: Is a black version available?

A: Yes. The BBWP-K1B is the functionally identical black-finish version of this controller.

Q: What back box is required?

A: The BBWP-K1W mounts in a standard 2-gang electrical back box, the most common commercial wall plate standard in North America.

Q: Is the BBWP-K1W compatible with all BlueBridge DSP processors?

A: The BBWP-K1W is designed for the AtlasIED BlueBridge DSP product line. Verify compatibility with the specific processor model in your installation before ordering.

Q: How is the controller reset in the field?

A: An IP reset push button on the unit enables field technicians to reset the network address without removing the controller from the wall.
