Atlas Sound BBWP-K1B – BlueBridge DSP Level Controller (Black)

Product Overview

The AtlasIED BBWP-K1B is a single-channel level controller for the BlueBridge DSP product line, providing occupant-level adjustment of gain, threshold, frequency, and other audio processing parameters directly from the wall. In black, this BlueBridge wall panel level controller mounts in a standard 2-gang back box and integrates naturally into dark-finish commercial interiors found in boardrooms, conference rooms, and multi-purpose rooms where end users need intuitive control over audio parameters without direct access to the DSP processor.

Product Description

The BBWP-K1B is the black-finish version of AtlasIED's BlueBridge wall-mount level controller. It provides a physical rotary control interface for adjusting any configurable parameter on connected BlueBridge DSP processors, including zone volume, microphone gain, equalization, threshold, or other assignable values. The AV programmer assigns the controller's function and range using BlueBridge Designer software, with the option to stack multiple DSP actions to a single control movement for sophisticated automation scenarios. The accompanying LED ladder level indicator gives end users immediate visual feedback on the current position of the controlled parameter without requiring software access.

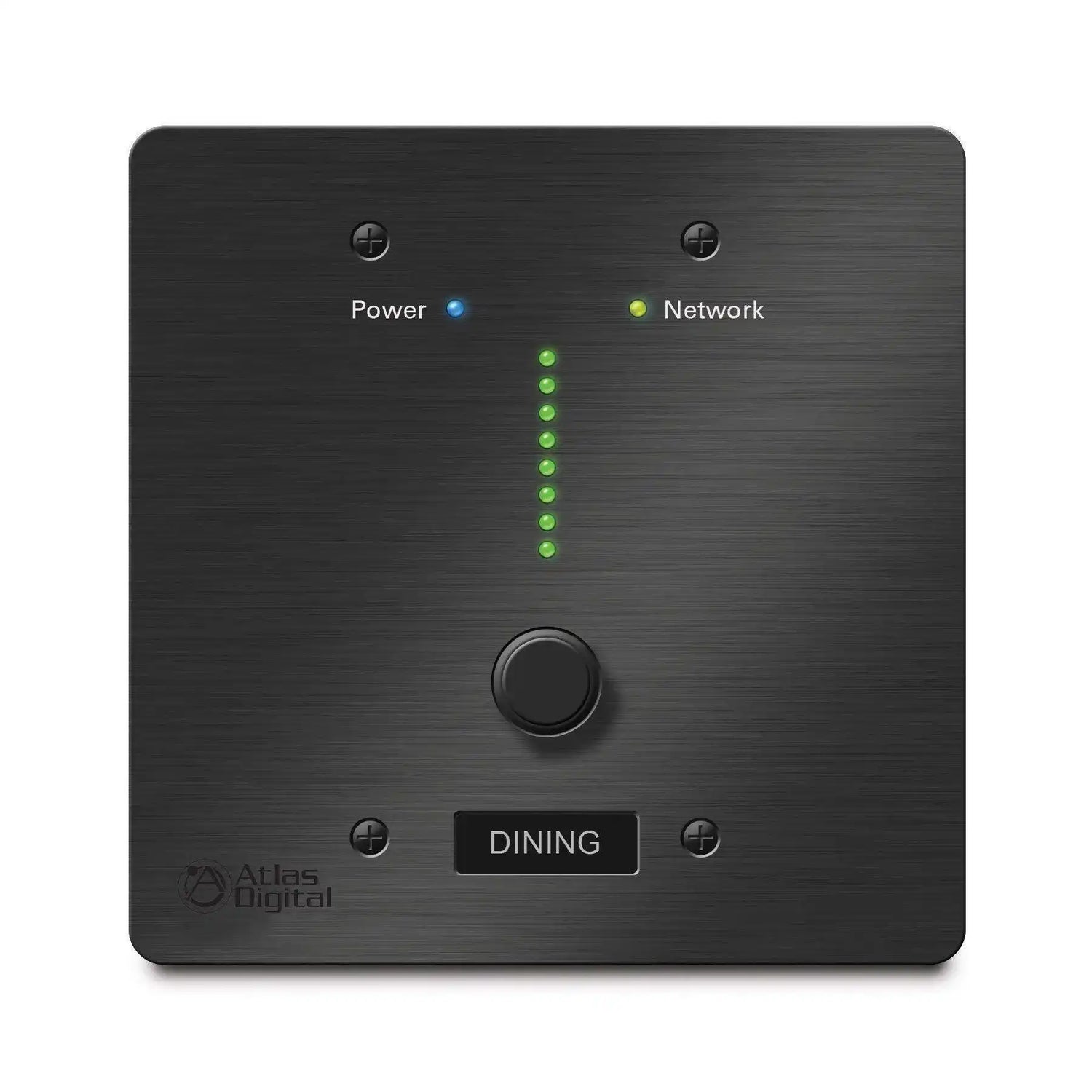

The black aluminum front panel presents a professional, low-profile appearance appropriate for executive boardrooms and high-end commercial AV environments. A single label slot with a clear plastic protective cover allows installers to identify the control's function. Power and network status LEDs confirm system health at a glance, and an RJ45 Ethernet connector provides the network link for BlueBridge DSP communication. A 2-pin detachable Euro connector accepts external 5V DC power as an alternative to PoE, and an accessible IP reset push button enables field network address reset without unmounting the unit. The BBWP-K1B is also available in white (BBWP-K1W).

Key Features

• Single Rotary Level Control — Physical rotary interface allows end users to adjust any assignable BlueBridge DSP parameter without software or system access.
• LED Ladder Level Indicator — Visual LED indicator alongside the rotary control displays the current level position for immediate user feedback.
• PoE+ or 5V DC Power — Accepts 48V DC PoE or the included 5V DC 1A power supply, providing flexibility for installations without PoE infrastructure.
• RJ45 Ethernet Connectivity — Standard RJ45 port connects to IP network for communication with BlueBridge DSP processors.
• Power and Network Status LEDs — Dual status LEDs confirm power and network connectivity for fast commissioning and service diagnostics.
• Single Label Slot with Protective Cover — Customizable label slot with clear plastic cover for field identification of the control's assigned function.
• Black Aluminum Front Panel — Durable aluminum faceplate in black finish suits dark-tone commercial interior environments.
• IP Reset Push Button — On-unit IP reset button allows field network address reset without removing the controller from the wall.
• 2-Gang Back Box Compatible — Mounts in standard 2-gang electrical back boxes common in commercial construction.
• Also Available in White — The BBWP-K1W is the white-finish version of this controller.

Typical Applications

• Boardroom volume and level control
• Conference room DSP parameter adjustment
• Training room audio zone control
• Multi-purpose room level management
• House of worship zone volume control
• Commercial meeting space BlueBridge interface

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the BBWP-K1B and BBWP-K1W?

A: The BBWP-K1B and BBWP-K1W are functionally identical. The only difference is the front panel color: the K1B has a black aluminum faceplate, and the K1W has a white aluminum faceplate.

Q: What parameters can the BBWP-K1B control?

A: The rotary control can be assigned to any adjustable BlueBridge DSP parameter using BlueBridge Designer software, including zone gain, microphone gain, EQ, threshold, and frequency adjustment. Multiple actions can be stacked to a single control movement.

Q: Does the BBWP-K1B require PoE?

A: No. An included 5V DC 1A power supply provides power where PoE is unavailable. The unit also accepts 48V DC PoE from a compatible switch or injector.

Q: What back box size is required for installation?

A: The BBWP-K1B mounts in a standard 2-gang electrical back box.

Q: Is the BBWP-K1B compatible with all BlueBridge DSP processors?

A: The BBWP-K1B is designed for the AtlasIED BlueBridge DSP product line. Confirm compatibility with the specific processor in your system before ordering.

Q: How is the IP address reset in the field?

A: The BBWP-K1B includes an IP reset push button that allows field technicians to reset the network address without removing the controller from the wall.
