Atlas Sound B51-4 – 4" In-Ceiling Speaker 25V/70V Transformer Package
Atlas Sound B51-4 – 4" In-Ceiling Speaker 25V/70V Transformer Package is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound B51-4 – 4" In-Ceiling Speaker 25V/70V Transformer ...
Product Overview

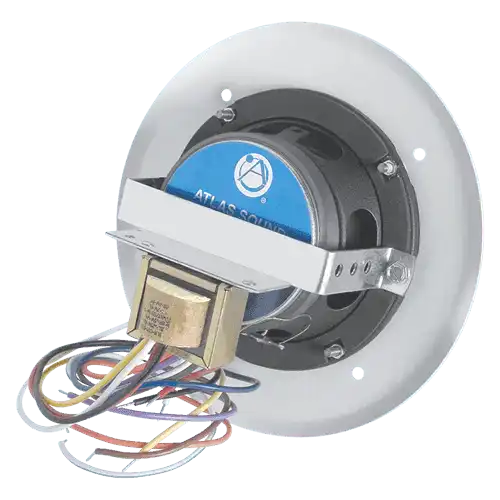

The Atlas Sound B51-4 is a factory-assembled 4" in-ceiling speaker package designed for commercial distributed audio systems. It combines the AtlasIED FC104 high-compliance loudspeaker with a dual-voltage 25V/70.7V transformer and a 51-4 round baffle for suspended ceiling installations. This all-in-one package saves installation time and is ideal for background music and paging in retail, hospitality, office, and institutional environments. The unit ships pre-assembled and ready to install, including torsion spring mounting hardware.
Product Description

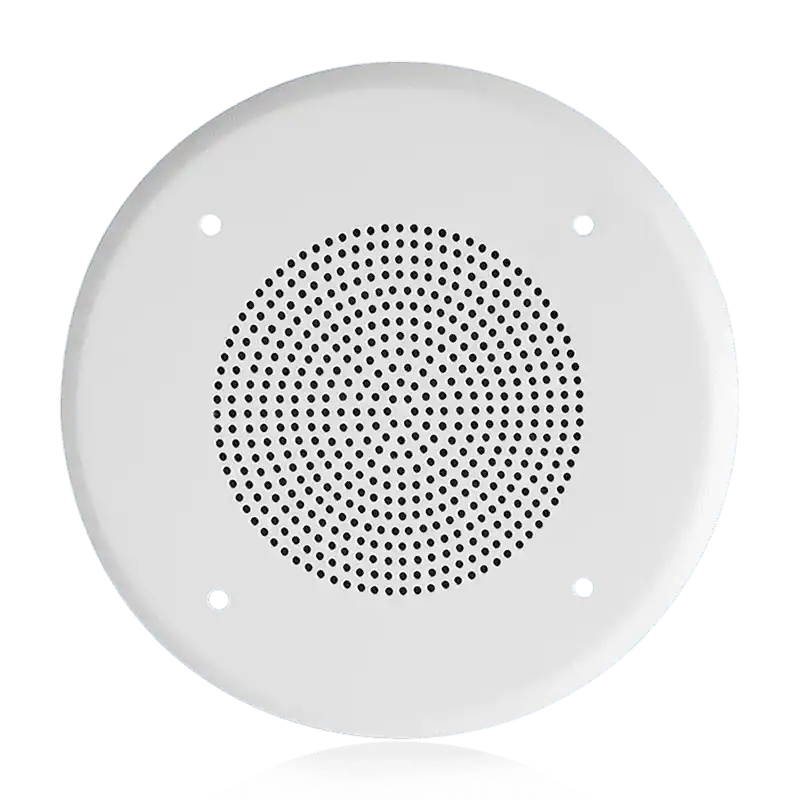

The B51-4 is part of Atlas Sound's B Series loudspeaker assemblies, which pair the full-range FC104 driver with a factory-mounted transformer and baffle to simplify the procurement and installation process. The FC104 driver employs a 10-ounce ceramic magnet and a damped, high-compliance cone that delivers smooth extended low-frequency response suited to both voice paging and background music applications. The dual-voltage 25V/70.7V transformer provides five power tap settings, allowing the integrator to precisely manage load distribution across a 70V distributed system. Sound dispersion measures 135 degrees at -6dB at 2kHz, enabling wide-area coverage with fewer ceiling penetrations in open-plan spaces. The round 51-4 baffle features a finished grille for a clean ceiling appearance. EZB models include the patented EZ-Mount support system with adjustable rails, eliminating the need for a separate tile bridge in suspended ceiling tile installations. All assemblies are CUL listed and compatible with optional HydroFobic moisture-resistant coating for humid or semi-outdoor environments. The 60-month warranty underscores the product's fit for permanent commercial installation.
Key Features
- Factory-Assembled Package — Speaker, transformer, and baffle shipped pre-built to reduce on-site labor.
- Dual-Voltage 25V/70.7V Transformer — Supports both 25V and 70.7V distributed systems with five selectable watt taps.
- High-Compliance 4" FC104 Driver — 10 oz. ceramic magnet and damped cone for full-range voice and music reproduction.
- 135° Wide Dispersion — Broad coverage pattern at 2kHz reduces the number of speakers required per zone.
- Power Taps: 0.25, 0.5, 1, 2, 4W — Fine-grained load control for balanced 70V system design.
- EZ-Mount Option Available — Adjustable support rails for suspended ceiling tile installations without a tile bridge.
- CUL Listed — Meets safety certification requirements for commercial installation.
- 60-Month Warranty — Long-term reliability assurance for permanent installs.
Technical Specifications
| Specification | Value |
|---|---|
| Speaker Size | 4" (102mm) High-Compliance Loudspeaker |
| Frequency Response | 150Hz – 17kHz |
| Sensitivity | 94dB (1W/1m) |
| Power Taps | 0.25, 0.5, 1, 2, 4 Watts (25V/70.7V) |
| Dispersion | 135° / -6dB at 2kHz |
| Mounting Depth | 2 1/4" (5.72cm) |
| Baffle Diameter | 4" (10.16cm) |
| Certifications | CUL Listed |
| Warranty | 60 months from date of purchase |
