Atlas Sound AWR3W – 3RU Tilt-Out Wall Rack Cabinet

Product Overview

The AtlasIED AWR3W is a 3RU tilt-out wall rack cabinet engineered for surface or recessed mounting of standard 19-inch rack-mount AV equipment in commercial installations. Constructed from welded 16-gauge cold-rolled steel with a locking tilt-out door, this wall-mount rack cabinet is widely deployed for housing remote amplifiers, DSP processors, and AV control equipment in conference rooms, multi-purpose rooms, and distributed audio systems.

Product Description

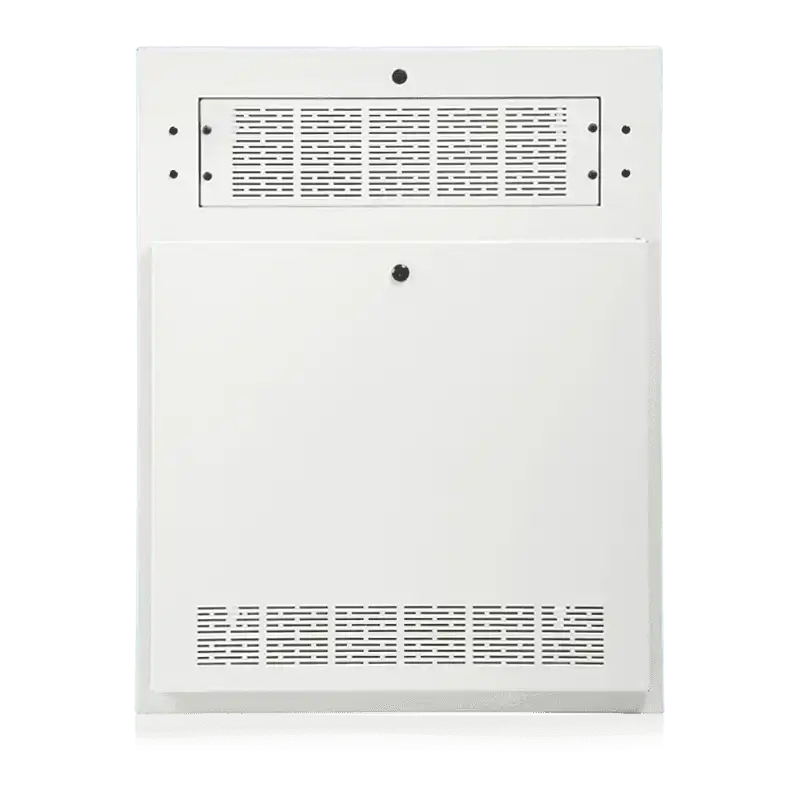

The Atlas Sound AWR3W is part of the AWR Series of commercial wall rack cabinets, redesigned for easier installation and improved security. The welded models can be surface mounted or recessed into walls using the included trim ring, providing flexibility for both new construction and retrofit applications. The cabinet includes a 3RU panel opening above the main bay, providing dedicated space for connector panels, power distribution units, or other user-accessible electronics — a practical feature for distributed audio rack installations.

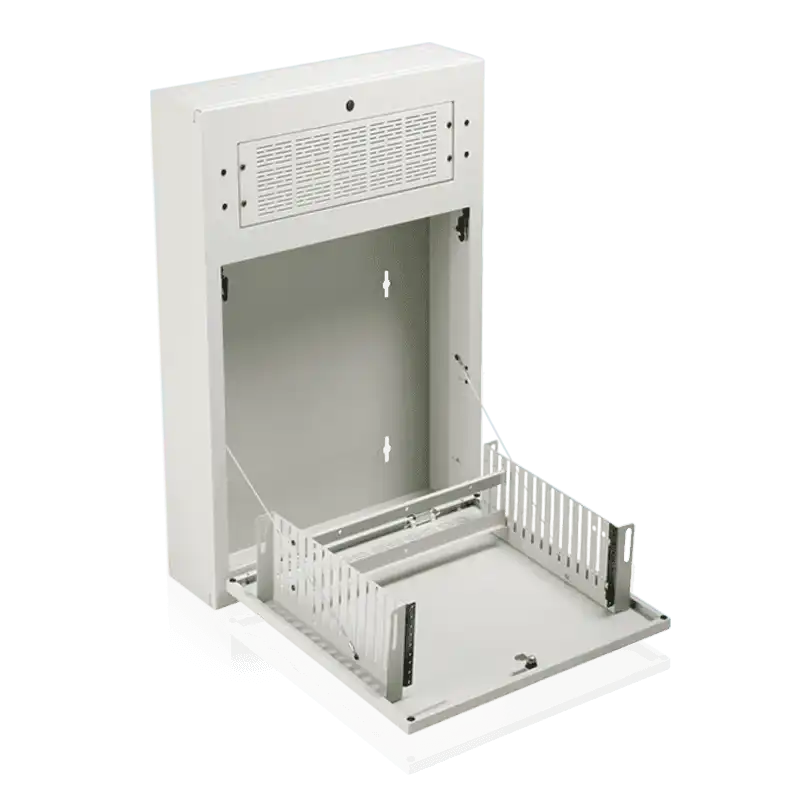

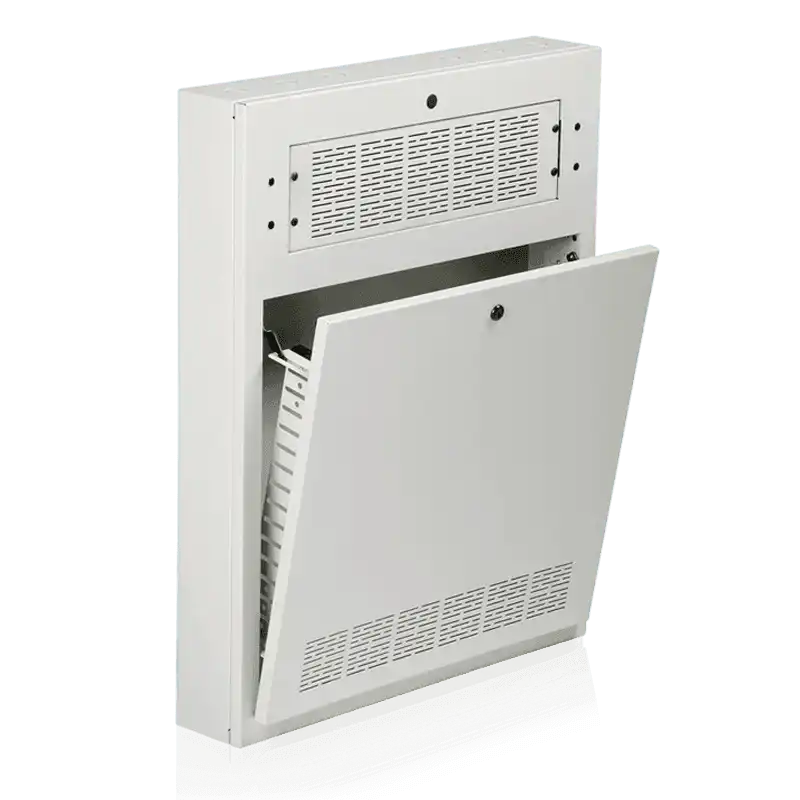

The 16-gauge CRS door frame and matching locking tilt-out door close flush against the rack face plate. The door is attached internally with two pin-style hinges to prevent tampering, and can be opened to two positions: a tilt-out angle for normal equipment operation, and a full 90-degree position for equipment installation and service. Two steel safety catch cables suspend and hold the door open at 90 degrees. The back box includes six concentric 1/2-inch and 3/4-inch conduit knockouts for flexible cable routing. Front panels feature 45-degree mitered edges for a clean flush appearance. The usable rack depth is 17.25 inches at the bottom RU, with 20 inches available at the top RU. Panel mounting holes accept standard 10-32 hardware, and the AWR3W ships complete and ready for installation.

Key Features

• Surface or Recessed Wall Mounting — Includes a trim ring for recessed in-wall installation, or can be surface mounted directly to the wall — compatible with both new construction and retrofit scenarios.
• 3RU Panel Opening Above Main Bay — Dedicated space above the primary rack bay for connector panels, power distribution, or user-accessible electronics common in commercial AV and distributed audio systems.
• 16-Gauge CRS Welded Construction — Fully welded cold-rolled steel body delivers rigidity and security appropriate for permanent commercial installations.
• Two-Position Tilt-Out Locking Door — Door tilts for equipment operation and opens fully to 90 degrees for equipment installation, held safely by two steel catch cables.
• Internal Pin Hinges — Door hinges are concealed internally to prevent tampering and unauthorized removal of the door.
• Six Conduit Knockouts — Back box includes six concentric 1/2-inch and 3/4-inch knockouts for flexible structured cabling and conduit entry.
• Mitered Front Panel Edges — 45-degree mitered edges on front panels provide a clean, flush appearance consistent with commercial interior finishes.
• 17.25" Usable Rack Depth — Bottom RU usable depth of 17.25 inches accommodates standard-depth commercial rack-mount equipment.
• 5-Year Limited Warranty — Covered by AtlasIED's 60-month warranty from date of purchase.

Typical Applications

• Conference room remote amplifier mounting
• Distributed audio system equipment housing
• Multi-purpose room AV equipment enclosure
• Training room rack installation
• Commercial meeting space AV infrastructure
• Huddle room AV control rack

Technical Specifications

Frequently Asked Questions

Q: Does the AWR3W include the trim ring for recessed installation?

A: Yes. The AWR3W ships complete with the trim ring included for recessed mounting, and is ready for installation without additional accessories required for the recessed configuration.

Q: What is the purpose of the 3RU panel opening above the main bay?

A: The 3RU panel opening above the main rack bay provides dedicated accessible space for connector panels, power distribution units, or equipment that end users need to access, such as volume controls or input switchers in distributed audio applications.

Q: Can the door be locked to prevent unauthorized access?

A: Yes. The AWR3W features a locking tilt-out door. The internal pin hinges also prevent door removal, making it suitable for environments requiring secure equipment enclosures.

Q: What rack hardware is compatible with the AWR3W?

A: The panel mounting holes accept standard 10-32 rack hardware, compatible with the vast majority of commercial 19-inch rack-mount AV equipment.

Q: What is the difference between the AWR3W and AWR2W?

A: The AWR3W provides 3RU of rack space in the main bay, while the AWR2W provides 2RU. Both share the same overall height (34 inches) and width (27 inches), with the AWR3W having a slightly deeper profile (6.55 inches vs. 4.75 inches).

Q: What is the warranty on the AWR3W?

A: The AtlasIED AWR3W is backed by a 60-month (5-year) limited warranty from date of purchase.
