Atlas Sound AWR2W – 2RU Tilt-Out Wall Rack Cabinet
Product Overview

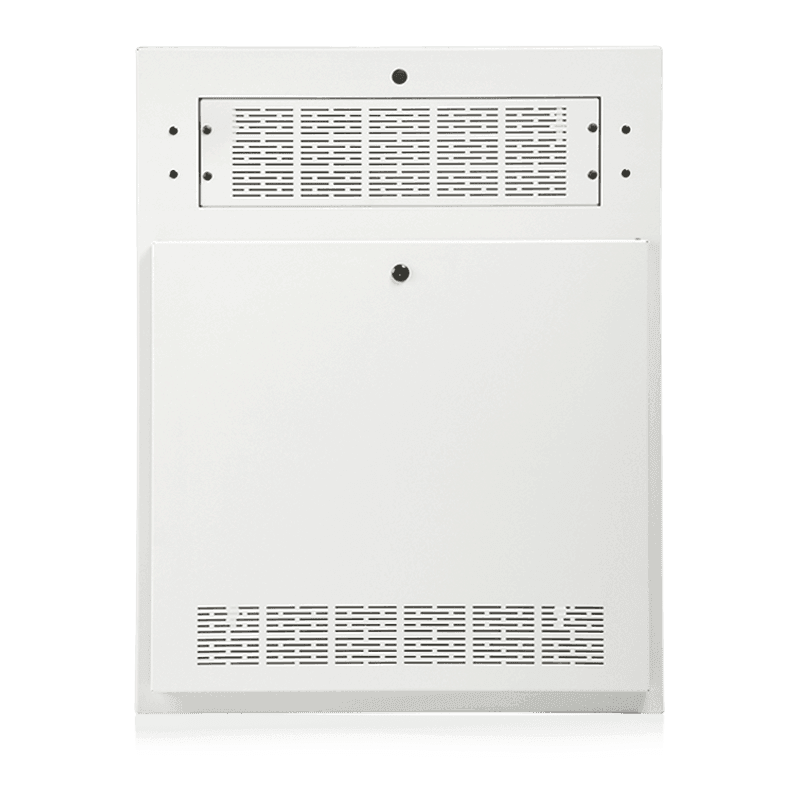

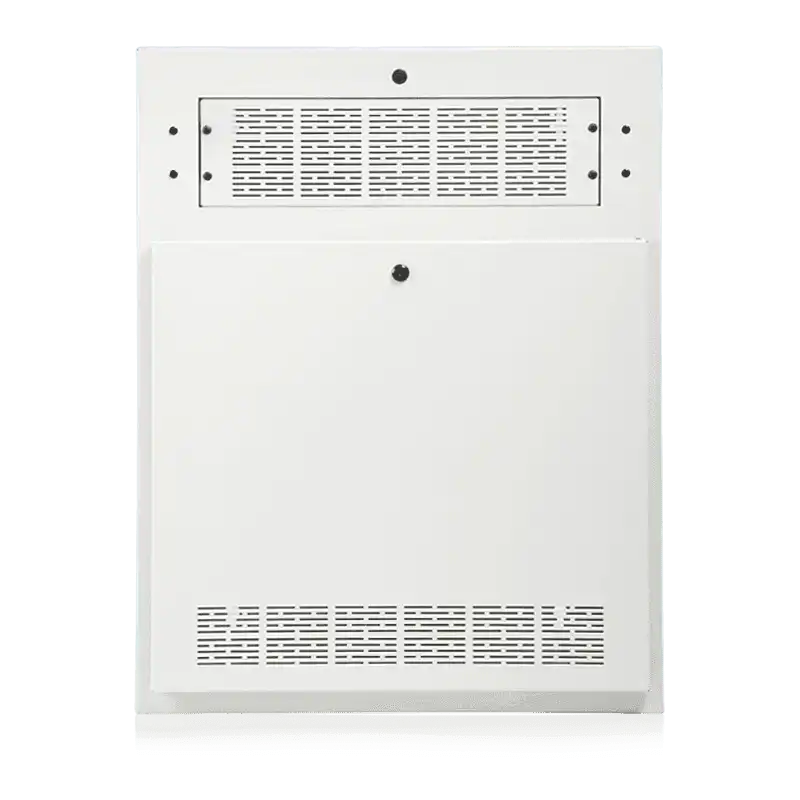

The AtlasIED AWR2W is a 2RU tilt-out wall rack cabinet designed for secure, compact mounting of 19-inch rack-mount AV equipment in commercial spaces. The welded 16-gauge cold-rolled steel enclosure installs surface-mounted or recessed within a wall, making it a practical choice for conference rooms, training rooms, and distributed audio system installations where a compact, lockable equipment enclosure is required without dedicating floor space to a full-size rack.
Product Description
The Atlas Sound AWR2W is the 2RU member of the AWR Series wall rack cabinet line, sharing the same proven welded construction and locking tilt-out door mechanism as its 3RU counterpart. The cabinet provides 2RU of rack space in the main bay plus a 3RU panel opening above the bay for connector panels or power distribution with a usable depth of 4 inches — an important consideration when selecting which components will fit. The 16-gauge CRS door frame and matching locking tilt-out door close flush against the rack face plate, with internal pin hinges preventing door removal or tampering.

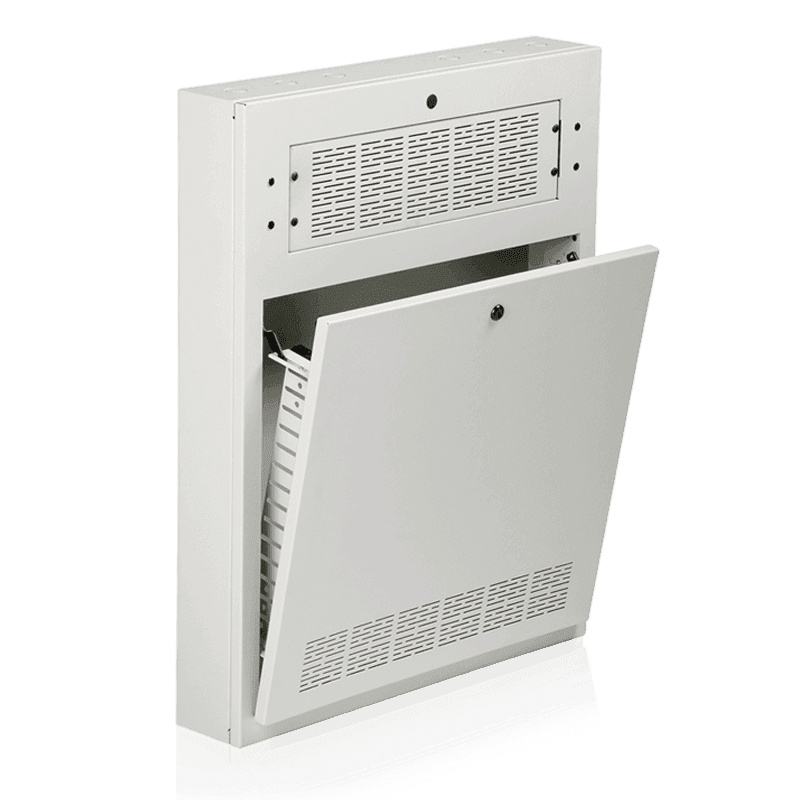

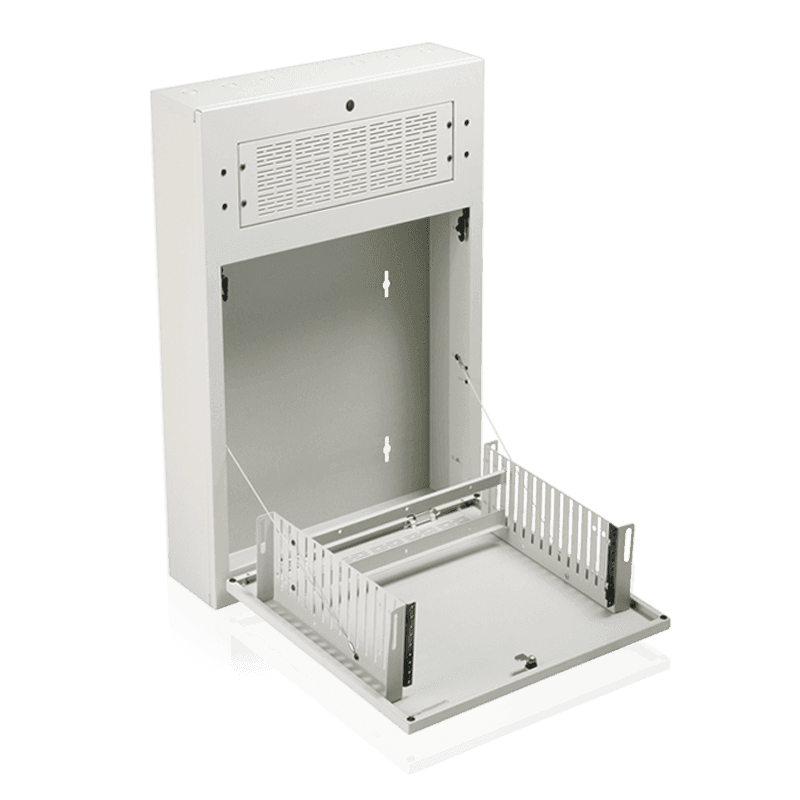

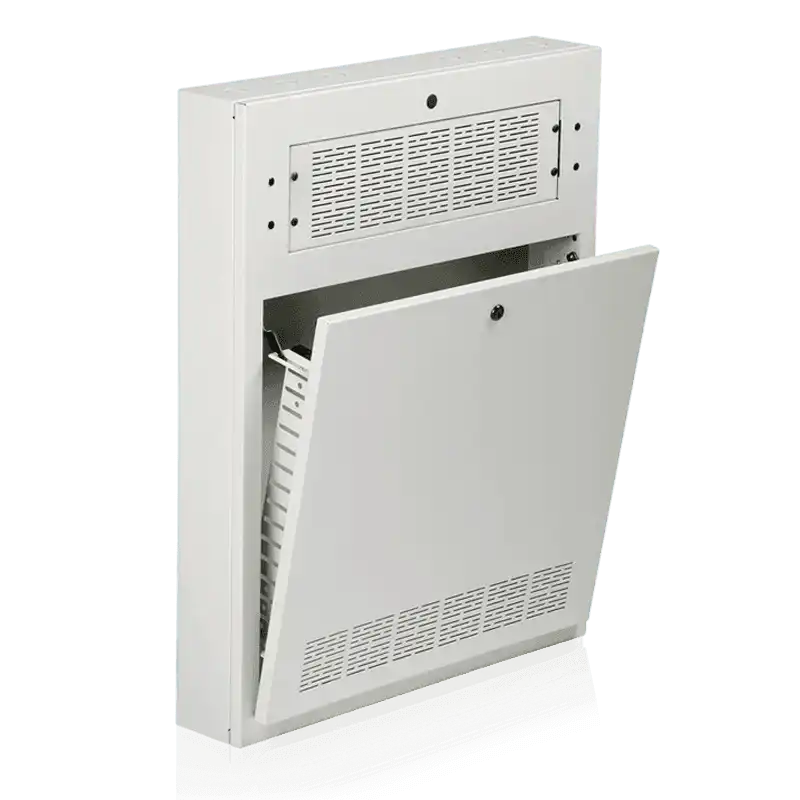

Installation is straightforward: the cabinet can be surface mounted directly to a wall, or recessed using the included trim ring for a cleaner, lower-profile appearance in finished commercial spaces. The tilt-out door operates in two positions — a tilt-out angle for normal operation and a full 90-degree open position for equipment installation and service, held securely by two steel safety catch cables. The back box features six concentric 1/2-inch and 3/4-inch conduit knockouts for structured cabling routing, and front panels have 45-degree mitered edges for a professional finished appearance. The usable rack depth is 17.25 inches at the bottom RU and 20 inches at the top RU. Panel mounting holes accept standard 10-32 hardware, and the AWR2W ships complete and ready for installation. TAA compliant.
Key Features
- Surface or Recessed Wall Mount — Ships with a trim ring for recessed installation within finished walls, or can be surface mounted — compatible with new construction and retrofit applications.
- 3RU Accessible Panel Opening — Panel bay above the main rack area provides space for connector panels, power distribution, or user-accessible controls in distributed audio and AV systems.
- 16-Gauge CRS Welded Construction — Fully welded cold-rolled steel enclosure provides structural rigidity and tamper resistance required in commercial and educational environments.
- Two-Position Tilt-Out Locking Door — Door tilts for equipment access during normal operation and opens fully to 90 degrees for installation and service, supported by two steel safety cables.
- Internal Pin Hinges — Concealed internal hinges prevent unauthorized door removal and protect equipment from tampering.
- Six Conduit Knockouts — Back box includes six concentric 1/2-inch and 3/4-inch knockouts for flexible conduit and cable routing.
- 17.25" Usable Rack Depth — Bottom RU provides 17.25 inches of usable depth, accommodating standard commercial rack-mount equipment.
- Mitered Front Panel Edges — 45-degree mitered edges on front panels ensure a clean, flush appearance in finished commercial interior spaces.
- TAA Compliant — Meets Trade Agreements Act requirements for government and federally funded installations.
- 5-Year Limited Warranty — Covered by AtlasIED's 60-month warranty from date of purchase.
Typical Applications
- Conference room AV equipment enclosure
- Distributed audio system amplifier mounting
- Huddle room rack installation
- Training room AV control rack
- Commercial meeting space equipment cabinet
- Government and institutional AV installations
Technical Specifications
| Specification | Value |
|---|---|
| Rack Units | 2RU |
| Rack Width | 19" |
| Usable Depth (Bottom RU) | 17 1/4" (43.815 cm) |
| Usable Depth (Top RU) | 20" (50.8 cm) |
| Main Bay Usable Depth | 4" |
| Overall Height | 34" (86.36 cm) |
| Overall Width | 27" (68.58 cm) |
| Overall Depth | 4 3/4" (12.192 cm) |
| Cabinet Material | 16-gauge Cold-Rolled Steel (CRS), welded |
| Rail Hardware | 10-32 |
| Conduit Knockouts | 6 x concentric 1/2" and 3/4" |
| Mounting Options | Surface mount or recessed (trim ring included) |
| Shipping Weight | 54.00 lbs (24.49 kg) |
| TAA Compliant | Yes |
| Warranty | 60 months from date of purchase |
Frequently Asked Questions
Q: Does the AWR2W include the trim ring for recessed installation?
A: Yes. The AWR2W ships complete with the trim ring included, supporting recessed in-wall installation without requiring a separate accessory purchase.
Q: What is the usable depth in the main 2RU bay?
A: The main bay usable depth is 4 inches at the lower RU. The top RU provides up to 20 inches of usable depth. Ensure any rack-mount equipment selected fits within the 4-inch depth of the main lower bay before ordering.
Q: Is the AWR2W suitable for government projects?
A: Yes. The AWR2W is TAA compliant, making it appropriate for government agency, GSA schedule, and federally funded AV installations.
Q: What rack hardware is compatible?
A: Panel mounting holes accept standard 10-32 rack hardware, compatible with the large majority of commercial 19-inch rack-mount AV equipment.
Q: What is the difference between the AWR2W and AWR3W?
A: The AWR2W offers 2RU of main bay rack space with a 4-inch usable depth, while the AWR3W offers 3RU with 5.75 inches of usable depth. Both share the same overall exterior dimensions (34" H x 27" W) and the same welded construction and locking door design.
Q: What is the warranty on the AWR2W?
A: The AtlasIED AWR2W is backed by a 60-month (5-year) limited warranty from date of purchase.
