AtlasIED X-ZPS – Atmosphere Zone Paging Station with Touchscreen

Product Overview

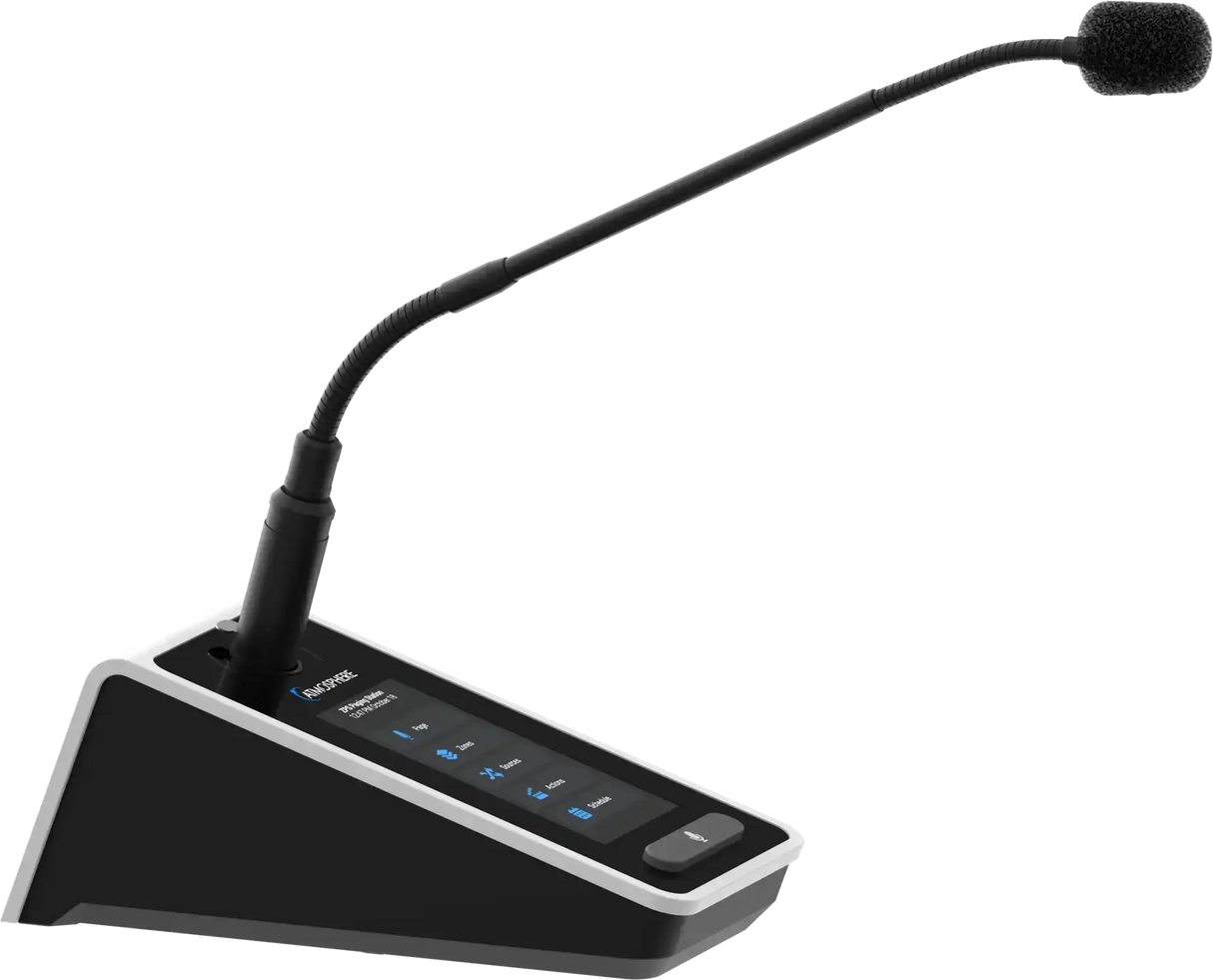

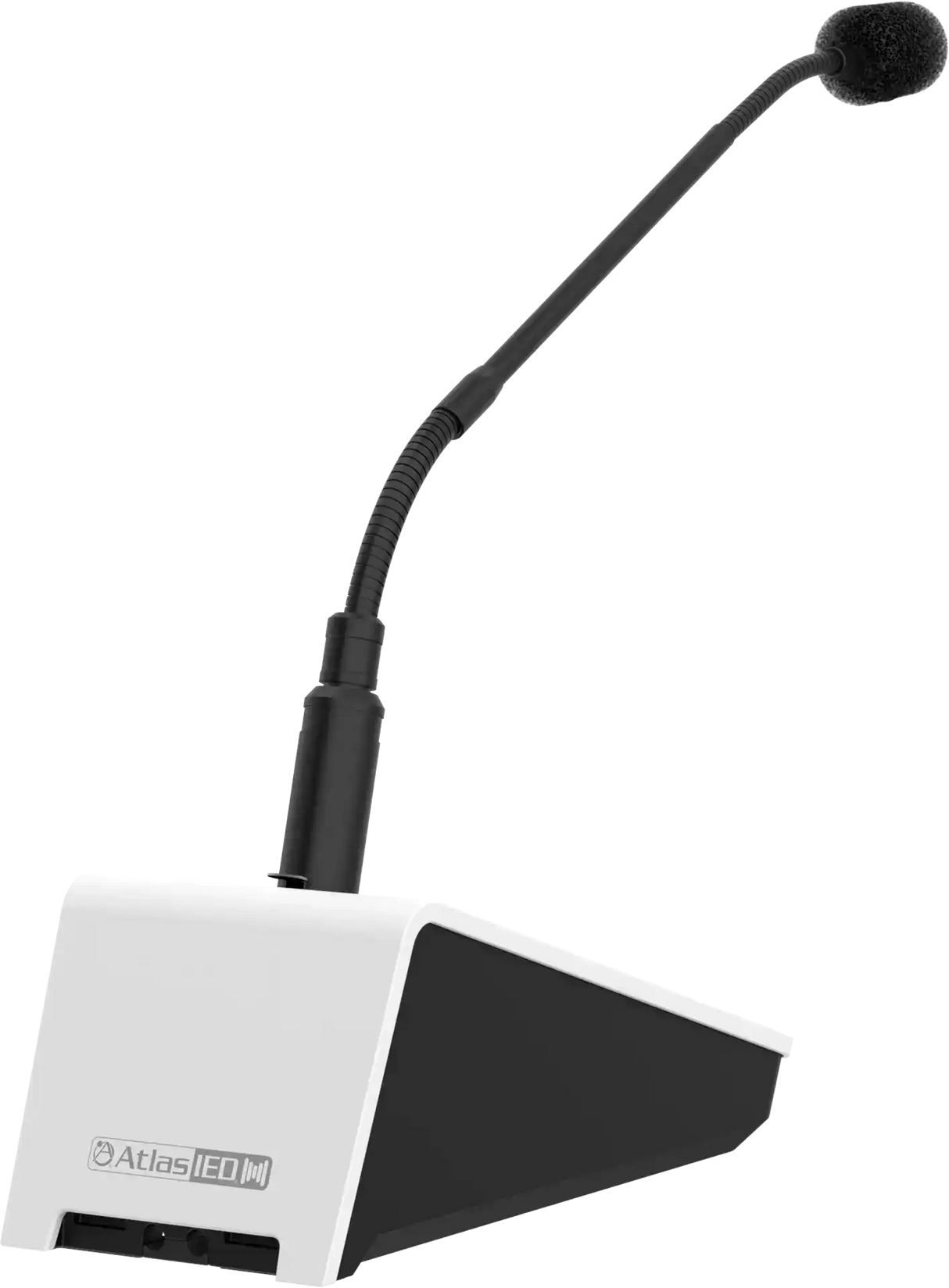

The AtlasIED X-ZPS is a dedicated zone paging station for the Atmosphere AZM and AZMP distributed audio platforms. It combines a 4.3-inch color touchscreen with an integrated 16-inch gooseneck microphone, giving operators a purpose-built interface for zone paging, all-call announcements, and custom group paging without requiring a separate paging console. As a plug-and-play Atmosphere accessory, the X-ZPS also provides system control functions including volume adjustment, source selection, and message recall, making it the right choice for commercial AV deployments that require reliable, staff-operated live paging capability.

Product Description

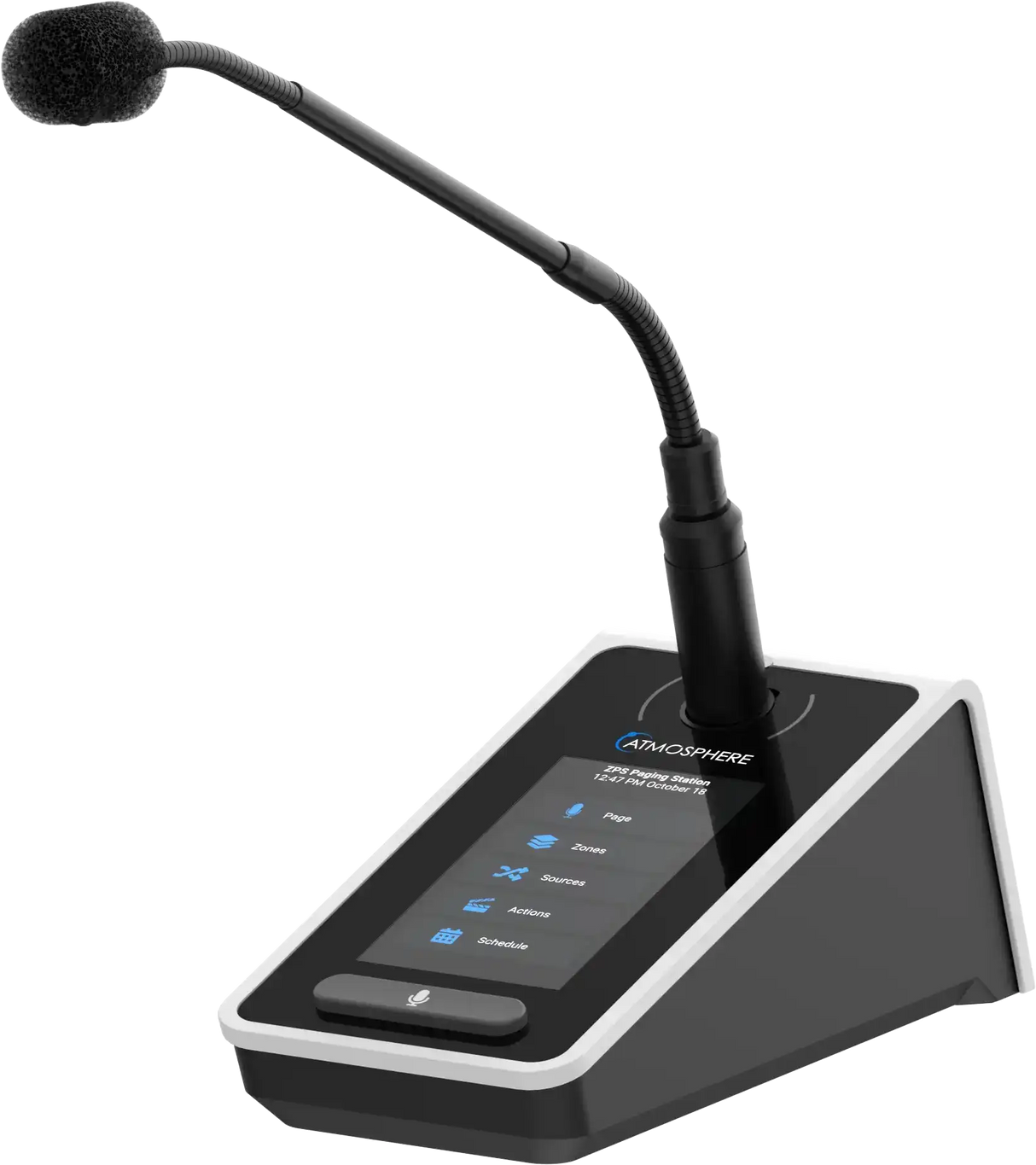

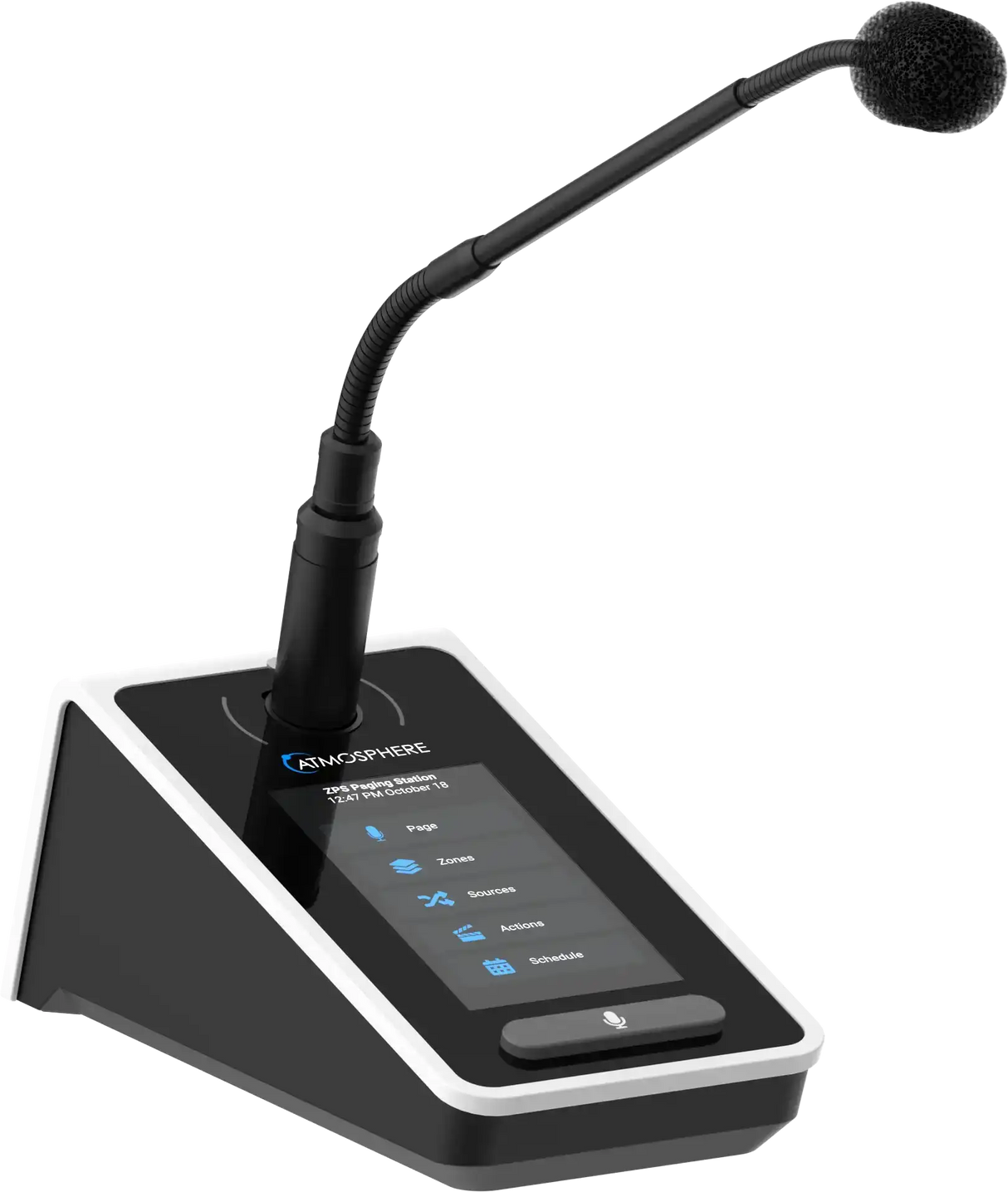

The X-ZPS integrates directly into the Atmosphere accessory bus, connecting to an AZM or AZMP processor via Cat 5e or better cabling over the standard RJ-45 accessory interface. Up to 8 accessories can be daisy-chained on a single accessory port, with reliable audio and data transmission over 1,000 feet per port. The X-ZPS uses the push-to-talk model: the operator selects destination zones or groups on the touchscreen, presses the push-to-talk button, and speaks into the gooseneck microphone. The 4.3-inch color LCD touchscreen provides a clear, accessible interface for selecting zones, recalling scheduled messages, adjusting source levels, and navigating system controls.

Zone paging, all-call paging, and custom group paging are all supported natively through the Atmosphere platform configuration, allowing system designers to define zone groupings and access permissions during commissioning. The X-ZPS is particularly well-suited for large commercial spaces, corporate facilities, healthcare environments, and educational campuses where staff need a fixed, dedicated paging point rather than a mobile or software-based solution. The flexible 16-inch gooseneck microphone provides accurate voice pickup across a range of operator heights and desk configurations. The RJ-45 input and output connectors on the bottom of the console support clean in-wall cable routing. The X-ZPS carries a 3-year warranty from AtlasIED and is compatible with all current Atmosphere AZM and AZMP processors.

Key Features

• 4.3-Inch Color LCD Touchscreen — Provides zone selection, source control, volume adjustment, and message recall in a clear, accessible interface.
• 16-Inch Flexible Gooseneck Microphone — Integrated high-quality gooseneck mic positions accurately for consistent voice pickup at any operator height.
• Zone Paging, All-Call, and Group Paging — Supports targeted single-zone pages, facility-wide all-call announcements, and custom-defined group paging configurations.
• Push-to-Talk Operation — Dedicated push-to-talk button provides clear, intentional activation for reliable live paging without accidental triggers.
• System Controller Functions — Volume adjustment, source selection, and message recall are accessible directly from the X-ZPS touchscreen interface.
• Plug-and-Play Accessory Bus Integration — Connects directly to Atmosphere AZM/AZMP processors without additional configuration hardware; up to 8 accessories per accessory port.
• 1,000-Foot Accessory Bus Range — Daisy-chain connectivity supports installations where the paging station needs to be located far from the head-end processor.

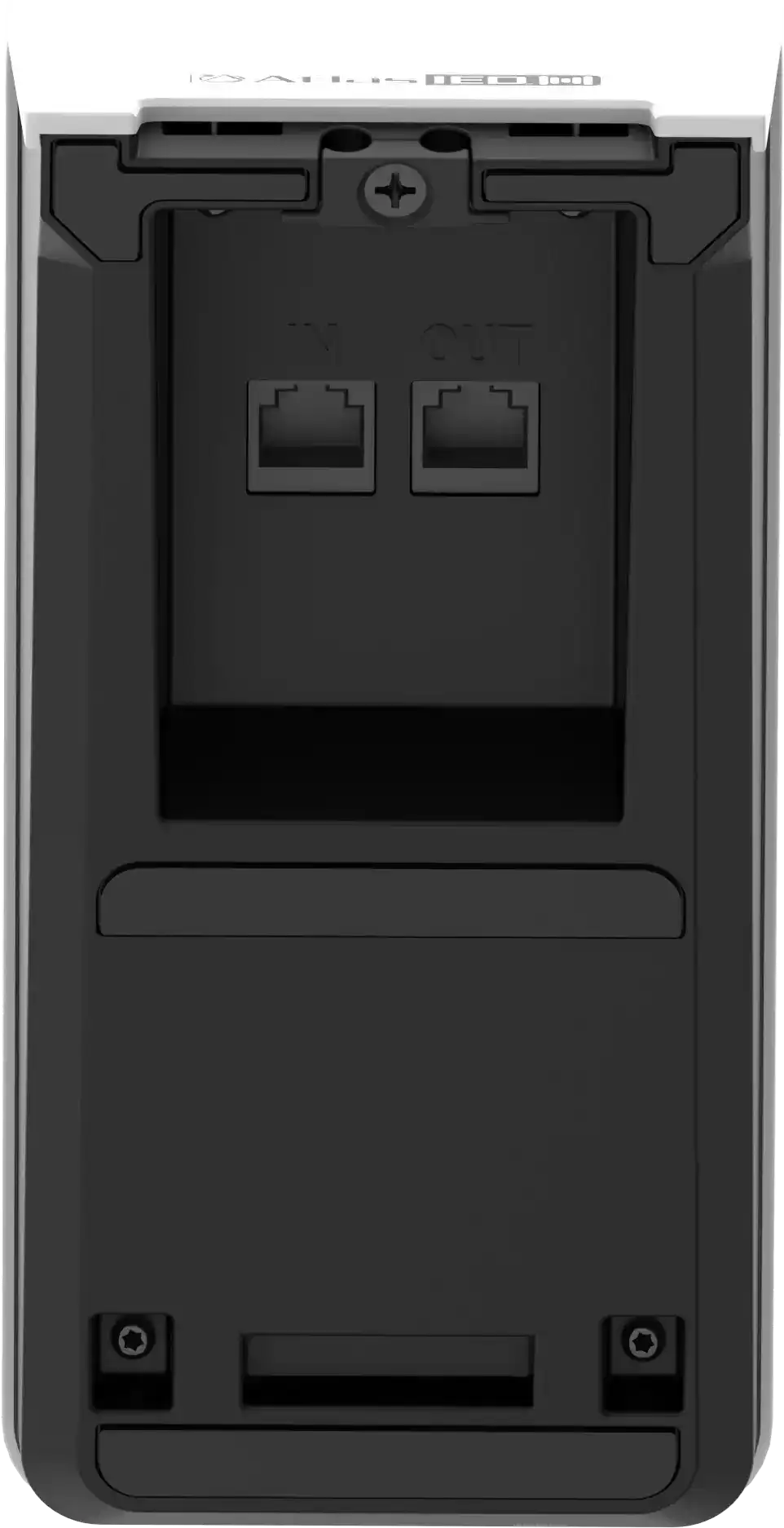

• RJ-45 Input and Output — Bottom-mounted connectors on the console support organized, in-wall cable routing at the installation point.

Typical Applications

• Commercial meeting space
• Boardroom
• Conference room
• House of worship
• Training room
• Multi-purpose room
• Government space

Technical Specifications

Frequently Asked Questions

Q: What Atmosphere processors does the X-ZPS work with?

A: The X-ZPS is compatible with Atmosphere AZM and AZMP audio processors. It connects via Cat 5e or better cabling to an accessory port on the processor.

Q: How many zone paging stations can be connected to one Atmosphere processor?

A: Each AZM/AZMP accessory port supports up to 8 accessories in a daisy-chain, and Atmosphere processors have multiple accessory ports. Consult the processor data sheet for the number of available ports on your specific model.

Q: Can the X-ZPS be used alongside other Atmosphere accessories like wall controllers?

A: Yes. The X-ZPS sits on the same accessory bus as other Atmosphere accessories. Up to 8 devices can share a single accessory port, and the X-ZPS occupies one audio input slot per port when used for paging.

Q: What is the microphone type and length on the X-ZPS?

A: The X-ZPS includes a high-quality 16-inch flexible gooseneck microphone that can be positioned for comfortable operation across varying desk heights and operator positions.

Q: Does the X-ZPS support scheduled or pre-recorded messages?

A: Message recall functionality is accessible from the X-ZPS touchscreen. Pre-recorded and scheduled messages are configured through the Atmosphere processor's web GUI during system setup.

Q: What is the warranty on the X-ZPS?

A: AtlasIED provides a 36-month warranty from the date of purchase.
