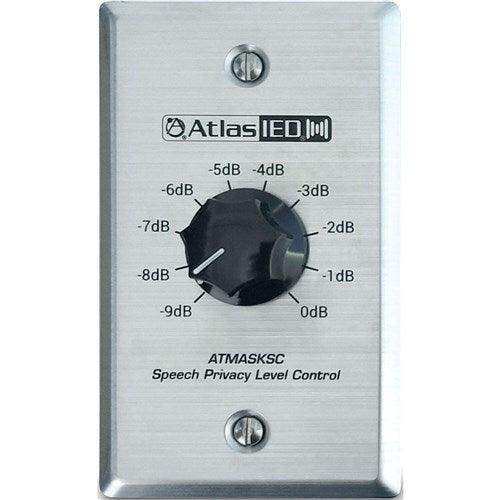

Atlas Sound ATMASKSC – Sound Masking Precision Level Control Wall Plate

Product Overview

The Atlas Sound ATMASKSC is a wall-plate-mounted precision stepped attenuator designed for use with the M1000A35 self-contained active sound masking system. It provides 1dB per step attenuation from 0dB to -9dB via a ten-position non-shorting rotary switch, enabling accurate level adjustment during commissioning and day-to-day masking system operation. The stainless steel wall plate matches standard commercial wall plate aesthetics and is UL 2043 listed when used with the M1000A35.

Product Description

The ATMASKSC addresses a specific need in sound masking installations: fine, repeatable level control at the zone or room level without disturbing the masking generator's DSP settings. Where most volume controls provide coarse level adjustment sufficient for music or paging, the ATMASKSC's 1dB incremental steps deliver the precision required for proper masking system calibration. The ten-position non-shorting rotary switch (with no physical end-stop) cycles through attenuation settings from 0dB to -9dB, which is specifically suited for trimming masking levels within the narrow range that keeps masking effective without becoming audibly intrusive. The unit interfaces via a 2 or 3 conductor connection, making it compatible with the M1000A35 as well as other 10k Ohm VCA systems using 2 or 3 conductor wiring. Maximum tested wire run is 500 feet on 22-gauge wire, allowing installation at practical distances from the masking speaker or controller without signal degradation. The stainless steel single-gang wall plate mounts in a standard electrical box and matches the visual profile of stainless steel commercial volume controls for consistent appearance on the wall. UL 2043 listing (when used with the M1000A35) supports installation in return-air plenum environments.

Key Features

• 1dB Step Precision — Ten-position rotary switch provides 1dB per step attenuation from 0dB to -9dB for accurate masking level adjustment.
• Non-Shorting Rotary Switch — No end-stop design allows continuous rotation; audio is not cut off at any position.
• Designed for M1000A35 — Specifically engineered for use with the Atlas Sound M1000A35 self-contained active masking system.
• 2 or 3 Conductor Interface — Compatible with 2 or 3 conductor wiring configurations and other 10k Ohm VCA systems.
• 500-Foot Wire Run — Maximum tested distance of 500 feet on 22-gauge wire supports distributed zone placement.
• Stainless Steel Wall Plate — Single-gang stainless steel plate matches standard commercial volume control wall plates.
• UL 2043 Listed — Safety listed for plenum-rated installations when used with the M1000A35.
