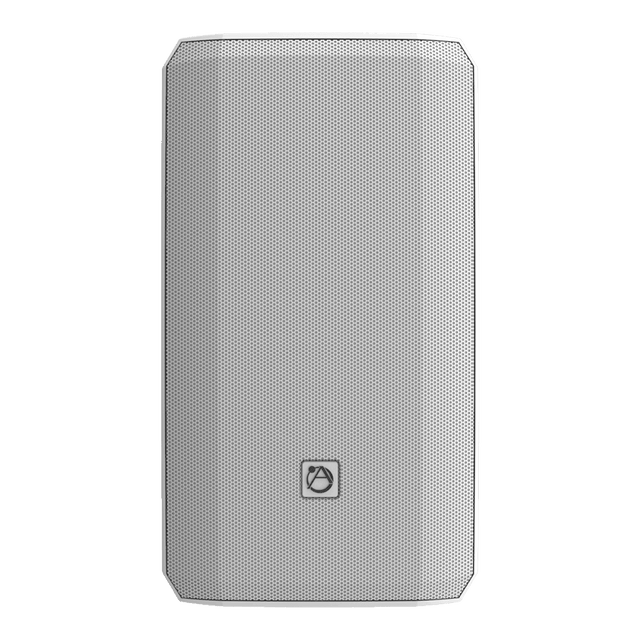

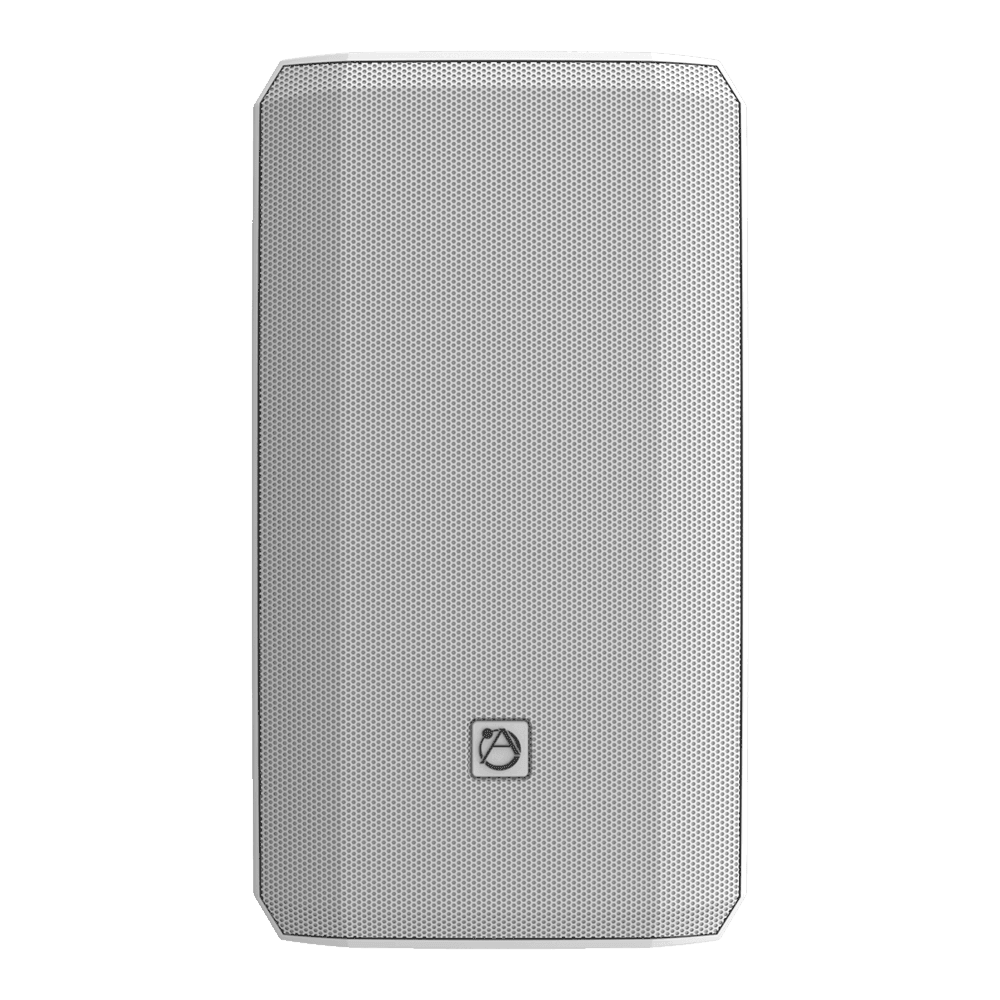

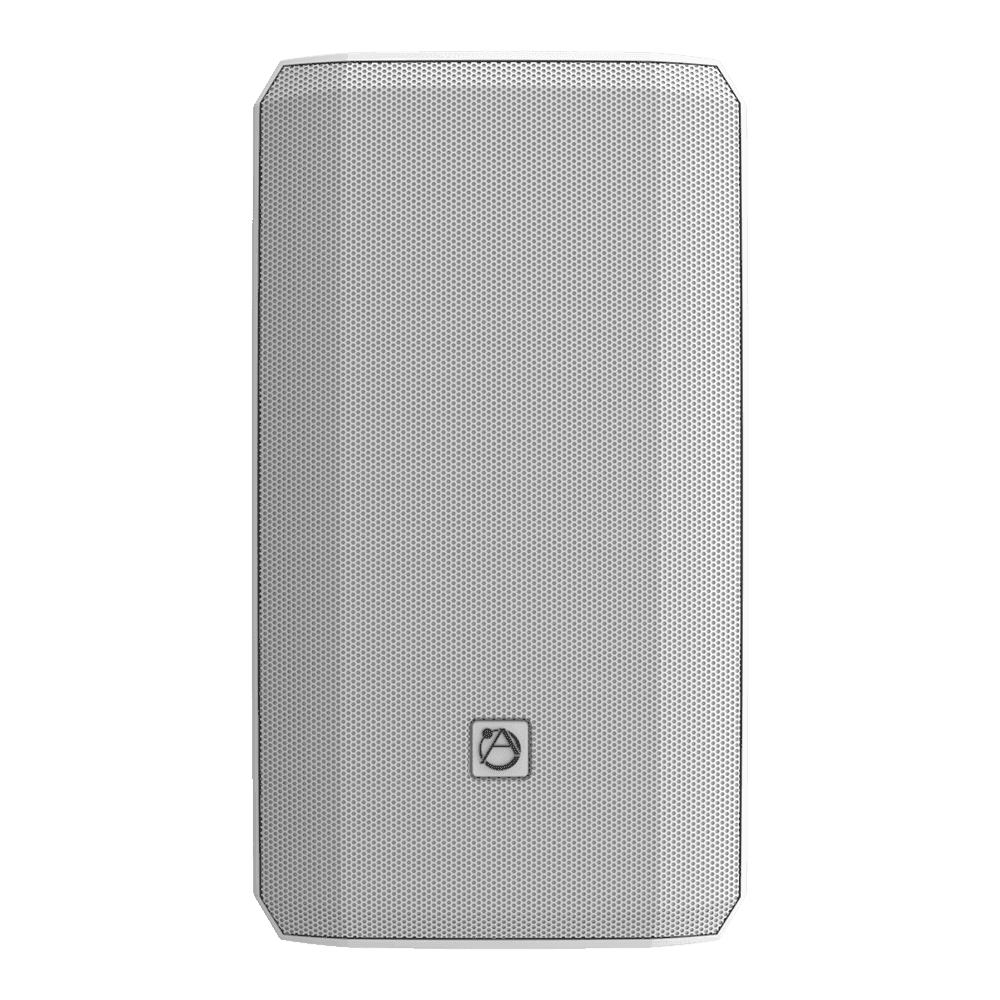

Atlas Sound AS-8T-W – 8" Commercial Surface Mount Speaker (White)

Product Overview

The Atlas Sound AS-8T-W is an 8-inch commercial-grade surface mount speaker designed for all-weather indoor and outdoor deployment in 70V distributed audio systems. Built for demanding commercial installations, the AS-8T-W features an IP55-rated ABS enclosure with UV inhibitor, a high-efficiency 60W 70.7/100V transformer, and an 8-inch woofer with compression driver for speech and music reinforcement. The included color-matched C-bracket and VESA-compatible mounting hardware provide installation flexibility for architects, designers, and AV integrators working in retail, corporate, hospitality, and public-address environments.

Product Description

The AS-8T-W is engineered from the ground up as a commercial surface mount loudspeaker, with acoustic performance optimized through model-specific waveguide design and transformer engineering specifically for 70V and 100V distributed systems. Many surface mount speakers lose efficiency and frequency flatness when driven from a transformer tap; the AS-8T-W's transformer has been specifically optimized for efficiency and frequency response in the speech and music frequency ranges most critical to intelligibility and perceived audio quality.

The ABS enclosure carries a UV inhibitor additive to resist discoloration and degradation in high-UV environments, and the IP55 rating confirms protection against dust ingress and directed water spray — making this speaker appropriate for covered outdoor areas, covered walkways, patios, and indoor spaces with high humidity or washdown exposure. The powder-coated aluminum grille provides additional durability in environments where the speaker may be subject to physical contact. The white finish matches standard commercial ceiling and wall surfaces cleanly.

Mounting is handled via the included color-matched C-bracket, which supports preset angular adjustments to ensure consistent aim across multiple units in a zone. For installations requiring more precise positioning, an optional universal mount in powder-coated aluminum is available separately. The AS-8T-W is also VESA-compatible, allowing integrators to use standard third-party mounting hardware where required by the installation environment or client preference. Impedance is 8 ohms with transformer bypass available for direct low-impedance amplifier operation.

Key Features

• IP55-Rated ABS Enclosure — Dust-protected and water-jet resistant enclosure rated for all-weather installations in covered outdoor and high-humidity indoor environments.
• UV Inhibitor ABS Construction — Enclosure material includes UV inhibitor to resist discoloration and surface degradation in high-UV exposure locations.
• High-Efficiency 60W 70V Transformer — Transformer is optimized for flat frequency response in the speech and music frequency bands when operating in 70V or 100V distributed audio systems.
• 8" Woofer with Compression Driver — 2-way driver configuration provides clear high-frequency detail alongside adequate low-frequency output for background music and speech applications.
• VESA Mount Compatible — Standard VESA hole pattern accommodates third-party mounting hardware for custom installation requirements.
• Color-Matched C-Bracket Included — Preset angular adjustment positions on the included white C-bracket ensure consistent speaker aim across multi-unit installations.
• Powder-Coated Aluminum Grille — Durable aluminum grille resists denting and corrosion for long service life in commercial environments.
• 8-Ohm Impedance — Supports direct connection to standard low-impedance amplifier outputs with transformer bypassed.

Typical Applications

• Retail commercial background music and paging
• Hospitality – covered outdoor areas, lobbies, and common spaces
• Corporate office background audio and paging zones
• House of worship overflow and lobby areas
• Government buildings and public address systems
• Multi-purpose room distributed audio

Technical Specifications

Frequently Asked Questions

Q: Is the AS-8T-W suitable for outdoor installation?

A: Yes. The IP55 rating confirms protection against dust and directed water spray, and the ABS enclosure includes a UV inhibitor. This speaker is appropriate for covered outdoor areas. Fully exposed, unprotected installations should be evaluated against site-specific conditions.

Q: Can the AS-8T-W be used with a standard 8-ohm amplifier?

A: Yes. The 70V transformer can be bypassed for direct 8-ohm operation from a standard low-impedance power amplifier.

Q: What VESA pattern does the AS-8T-W support?

A: The AS-8T-W is VESA-compatible; consult the product documentation for the specific hole pattern dimensions to confirm compatibility with your chosen third-party mount.

Q: Is an optional universal mount available?

A: Yes. An optional powder-coated aluminum universal mount is available separately, offering preset horizontal and vertical angle adjustments for more precise speaker positioning than the included C-bracket.

Q: What is the 70V power tap on the AS-8T-W?

A: The AS-8T-W includes a high-efficiency 60W transformer. Specific watt tap selections are documented in the product installation guide. Contact Creation Networks for full tap specifications.

Q: What warranty does the AS-8T-W carry?

A: Atlas Sound products are covered by the manufacturer's standard commercial warranty. Contact Creation Networks for current warranty and support terms.
