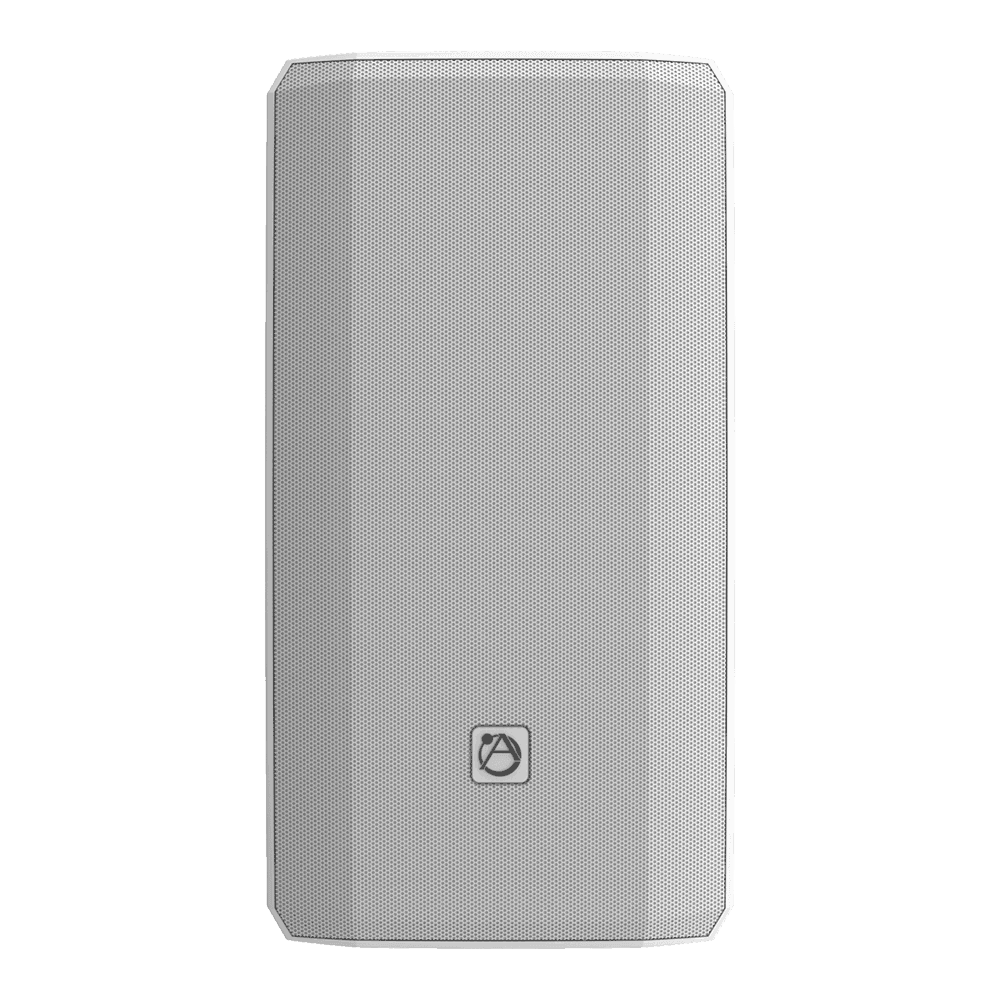

Atlas Sound AS-10T-W 10" AS Series Surface Mount, Passive (White)

Product Overview

The Atlas Sound AS-10T-W is a 10" two-way commercial surface mount speaker in white, built for distributed audio installations that demand full-range output indoors or outdoors. Its IP55 weather-resistant enclosure and 70V/100V transformer make it a dependable choice for commercial sound reinforcement across hospitality, education, retail, and corporate environments. Integrators specifying a white surface mount speaker for architectural spaces get even coverage, high SPL capability, and straightforward yoke-mount installation in a single passive loudspeaker. It pairs naturally with the rest of the AtlasIED AS Series for sonically matched, mixed-model system designs.

Product Description

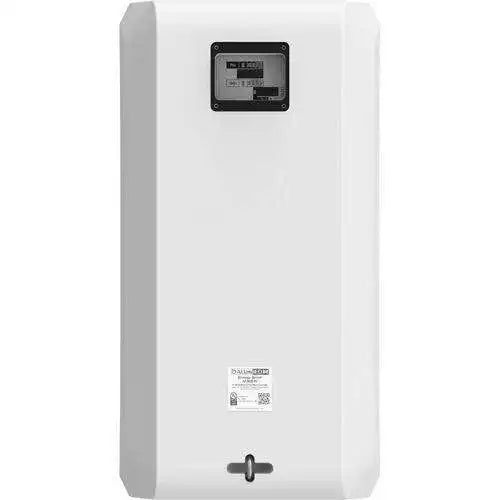

The AS-10T-W combines a high-excursion 10" woofer with a 1" exit compression driver to deliver consistent, accurate broadband response both on and off axis — a key requirement for commercial audio installation work where listeners are rarely seated on the speaker's centerline. The nominal 100° x 90° coverage pattern lets system designers cover wide listening areas with fewer enclosures, simplifying 70V distributed speaker system layouts and reducing amplifier channel counts. A low insertion loss 120W transformer supports 70V and 100V operation, with wattage taps and a low-impedance bypass selected through a rear-mounted slide switch protected by a security cover. In 8-ohm low-Z mode, the speaker handles 240W average and 480W program power, producing up to 123dB peak SPL for foreground music and high-output paging.

The textured white, high-impact ABS enclosure includes a UV inhibitor and carries an IP55 rating, so the AS-10T-W performs reliably in outdoor commercial speaker installations exposed to rain, humidity, and direct sun — patios, pool decks, transportation hubs, and themed venues included. The included slip-free yoke mount provides secure aiming during installation, and the enclosure is also compatible with VESA mounts for additional rigging flexibility. AtlasIED supplies EASE, EASE Focus, CF2, 3D CAD, and BIM/Revit files, giving consultants and design-build integrators the modeling data needed for predictable acoustic results. When deployed with the AtlasIED Atmosphere DSP platform, advanced factory tunings are available to optimize system response. For projects standardizing on black enclosures, the same acoustic platform is offered as the AS-10T-B.

Key Features

• Two-Way 10" Design — A high-excursion 10" woofer and 1" exit compression driver deliver full-range 45Hz–20kHz output for both speech and music programs.
• 70V/100V and 8-Ohm Operation — The ultra-low insertion loss 120W transformer with selectable taps (120W, 60W, 30W, 15W; 7.5W at 70V) and low-Z bypass fits both distributed and direct-coupled amplifier designs.
• IP55 Weather Resistance — The UV-inhibited ABS enclosure withstands rain, snow, humidity, and sun exposure for confident indoor and outdoor deployment.
• Wide, Consistent Coverage — A 100° x 90° nominal coverage angle with consistent horizontal off-axis performance reduces the number of speakers required per zone.
• High Output Capability — 93dB sensitivity (1W/1m) and up to 123dB peak SPL support foreground music and high-intelligibility paging in noisy spaces.
• Slip-Free Yoke Mount Included — The supplied color-matched yoke bracket with preset angles speeds installation; the enclosure is also VESA mount compatible.
• Design-Tool Support — EASE, CF2, 3D CAD, and BIM/Revit files are available for accurate system modeling and specification documents.
• Sonically Matched AS Series — Voiced to match other AS Series models for consistent sound in installations mixing multiple speaker types.

Typical Applications

• House of worship sanctuaries and overflow spaces
• Multi-purpose rooms requiring speech and music reproduction
• All-hands rooms and large commercial meeting spaces
• Training rooms with distributed audio coverage
• Auditorium fill and delay zones
• Government spaces and public facilities

Technical Specifications

Frequently Asked Questions

Can the AS-10T-W be used on both 70V distributed systems and 8-ohm amplifiers?
Yes. A rear slide selector switch chooses transformer taps of 120W, 60W, 30W, or 15W (7.5W at 70V), or bypasses the transformer entirely for 8-ohm low-impedance operation.

Is this speaker rated for outdoor installation?
Yes. The AS-10T-W carries an IP55 rating with a UV-inhibited ABS enclosure and powder-coated aluminum grille, making it suitable for rain, snow, high-humidity, and high-UV environments.

What mounting hardware is included?
A color-matched, slip-free yoke (C-bracket) mount with preset aiming angles ships in the box. The enclosure is also compatible with VESA mounts for alternative rigging.

How does the AS-10T-W integrate with DSP processing?
AtlasIED provides advanced speaker tunings through its Atmosphere DSP platform, and EASE/CF2 modeling data is available for system design and prediction.

Is the AS-10T-W available in black?
Yes. The identical speaker in textured black is sold as the AS-10T-B for installations where a dark enclosure suits the architecture.

What warranty applies to this speaker?
AtlasIED covers the AS-10T series with a 60-month warranty from the date of purchase, and Creation Networks supports the order through delivery and beyond.
