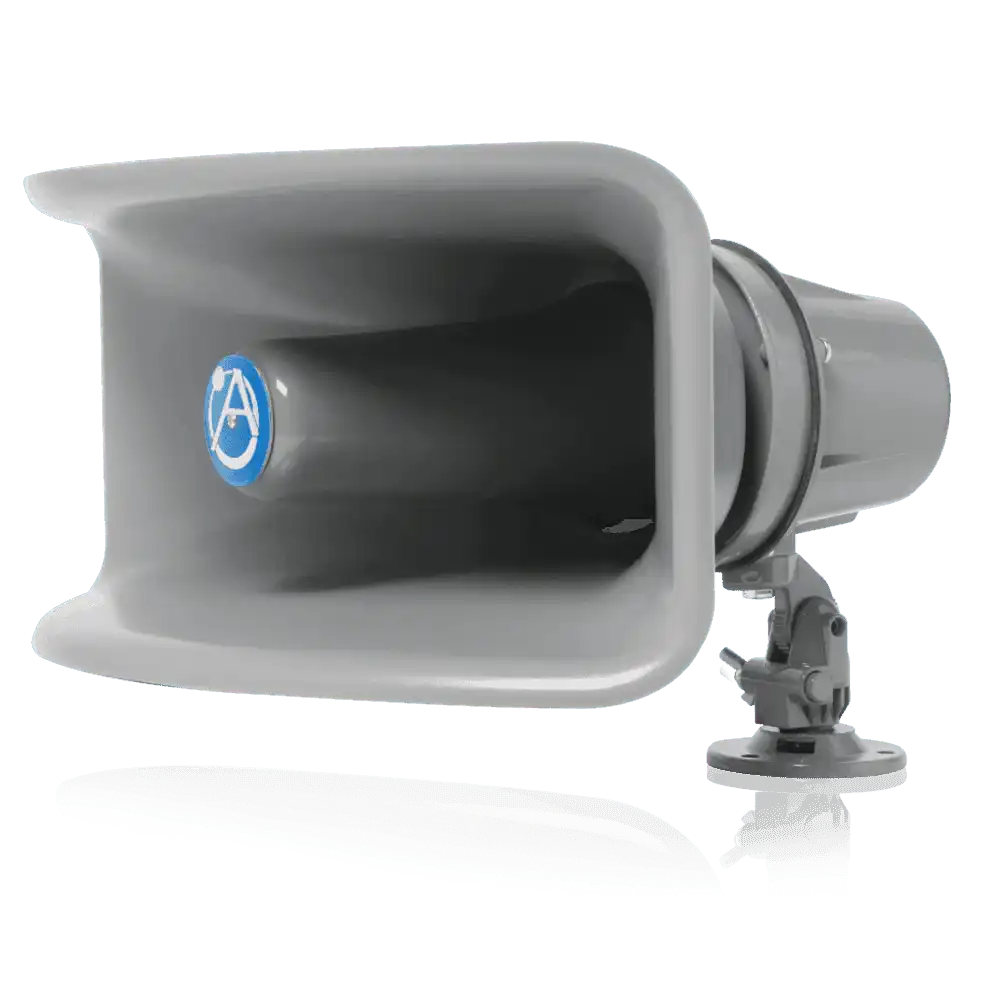

Atlas Sound APC-30T – Wide Angle Horn Speaker 30W 25V/70V/100V

Product Overview

The Atlas Sound APC-30T is a 30-watt wide angle horn speaker designed for commercial paging, voice evacuation, and outdoor public address systems. Built for distributed 25V, 70.7V, and 100V constant-voltage audio systems, this horn speaker delivers superior intelligibility and high-efficiency sound reproduction in demanding environments. Its wide-angle dispersion pattern makes it an ideal 70V horn speaker for warehouses, parking structures, stadiums, and other large open areas where broad horizontal coverage is essential. The integrated multi-tap transformer simplifies installation across a range of commercial PA system configurations.

Product Description

The APC-30T is a high-power compression driver horn speaker with an extended low-frequency response and a wide-angle molded plastic bell engineered to maximize horizontal sound dispersion. The compression driver delivers superior voice and tone signaling, making this unit appropriate for mass notification, general paging, and background music applications in both indoor and outdoor settings. The weather-resistant construction combines metal and ABS plastic components, with metal parts finished in grey baked epoxy to resist corrosion in outdoor deployments. The integrated 3-way transformer supports 25V, 70.7V, and 100V distributed audio systems, with a 7-position Vari-Tap selector that allows screwdriver-adjustable wattage settings from 2 to 30 watts. A 45-ohm tap is also included for intercom and talk-back compatibility. The Vari-Tap Connect Center terminal features a protective cover with built-in strain relief, reducing installation time and improving long-term reliability. The Omni-Purpose mounting bracket is included on all models and supports single-adjustment positioning in both vertical and horizontal planes, as well as strap-mounting to I-beams or pillars. With a dispersion angle of 70° x 95°, the APC-30T provides broad coverage suited to wide areas where even distribution of voice or tone signals is required. The unit is U.S.-made and carries a 60-month warranty from the date of purchase.

Key Features

• Wide-Angle Dispersion (70° x 95°) — Delivers broad horizontal coverage ideal for warehouses, parking areas, and open spaces.
• 30-Watt Continuous Power Handling — Handles sustained high-output operation in demanding paging and notification applications.
• 25V / 70.7V / 100V Transformer — Supports all major distributed audio voltage standards with a single integrated transformer.
• Vari-Tap Connect Center — 7-position screwdriver-adjustable wattage selector (2W–30W) with protective cover and built-in strain relief.
• 45-Ohm Intercom Tap — Provides compatibility with intercom and talk-back systems without additional transformers.
• Weather-Resistant Construction — Metal and ABS plastic housing with grey baked epoxy finish rated for outdoor and indoor use.
• Omni-Purpose Mounting Bracket — Included hardware allows surface mounting, vertical/horizontal adjustment, and strap-mounting to structural beams.
• High-Efficiency Compression Driver — Projects clear voice and tone signals with 109 dB sensitivity for extended throw distance.
• U.S. Made — Domestically manufactured for consistent quality and long-term serviceability.
• 60-Month Warranty — Industry-leading warranty coverage from date of purchase.

Technical Specifications
