Atlas Sound AP-S15LA – 1U Rack Power Conditioner 9-Outlet with Lamp

Product Overview

The Atlas Sound AP-S15LA is a 1U rack-mount power conditioner and distribution unit providing 9 AC outlets with RFI/EMI filtering and 6,000V spike suppression for AV equipment protection. Built for commercial AV rack installations, this rack power conditioner defends amplifiers, DSPs, and signal processors from AC line noise and voltage transients that cause equipment failures. The included 12-foot removable IEC power cord, retainer bracket, and pull-out dimmable lamp make the AP-S15LA a complete power management solution for AV system integrators and installers.

Product Description

The AP-S15LA addresses two of the most common causes of AV equipment damage: AC line noise and voltage transients. RFI filtering eliminates Radio Frequency Interference from nearby wireless transmitters and broadcast equipment, while EMI filtering suppresses noise generated by electric motors, switching power supplies, and other inductive loads sharing the same electrical circuit. The spike suppression circuitry responds within a nanosecond and sustains suppression for up to 2 milliseconds, with a 200-joule surge energy rating—adequate protection for commercial AV environments. Nine total outlets cover most rack configurations: seven switched rear-panel outlets for connected gear, one unswitched rear-panel outlet for devices that must remain powered during system shutdown, and one unswitched front-panel convenience outlet for temporary equipment connections. The 15A circuit breaker protects the entire distribution chain from overload. Three front-panel LED indicators display power status, surge protection status, and AC ground integrity, giving installers immediate visual confirmation of the unit's protective state. The front-panel dimmable pull-out lamp illuminates rack interiors for cable management and service work. The AP-S15LA is UL 1449 and UL 60065 listed, meeting commercial AV installation safety standards. The removable IEC cord with retainer bracket simplifies field replacement without disturbing the rack installation.

Key Features

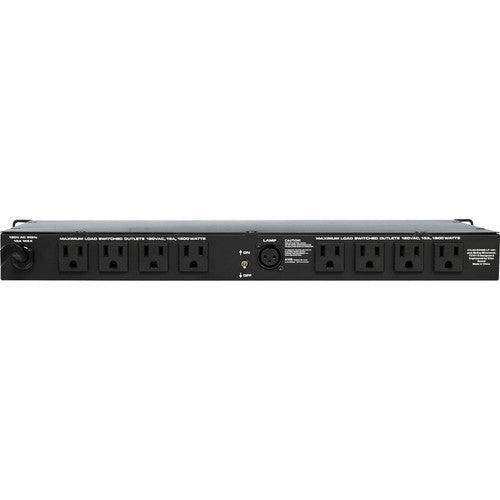

• 9 Total AC Outlets — 7 switched rear, 1 unswitched rear, and 1 unswitched front convenience outlet.
• RFI Noise Filtering — Reduces Radio Frequency Interference from transmitters and wireless devices on AC lines.
• EMI Filtering — Suppresses electromagnetic interference from motors and switching power supplies.
• 6,000V Spike Suppression — Nanosecond-response circuitry with 200-joule surge energy rating.
• 15A Circuit Breaker Protection — Prevents overload damage across the entire distribution chain.

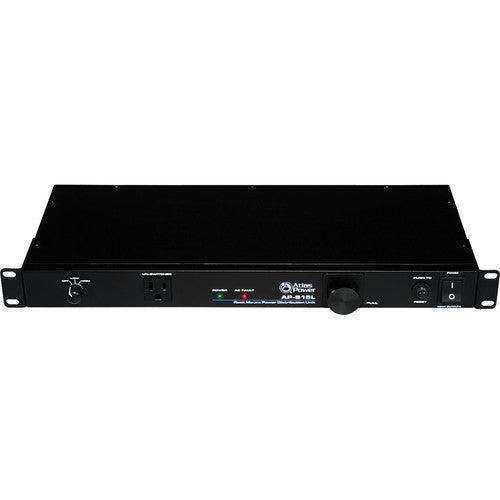

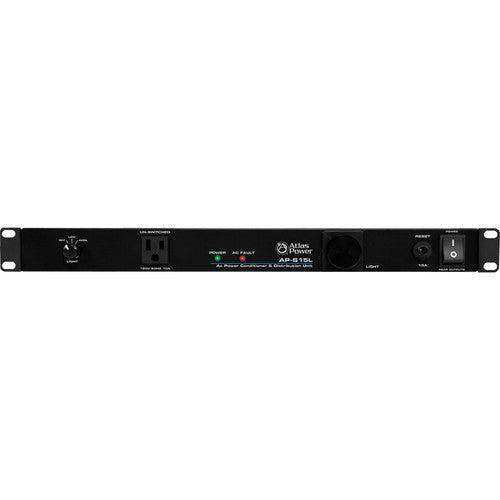

• Three Status LED Indicators — Power, surge protection, and AC ground status visible from the front panel.
• Front-Panel Dimmable Pull-Out Lamp — Illuminates rack interior for installation and service access.
• Removable 12-Foot IEC Power Cord — Included with retainer bracket; field-replaceable without disturbing rack layout.
• UL 1449 / UL 60065 Listed — Meets commercial AV safety certification requirements.
• 1U Rack-Mount Form Factor — Fits standard 19" equipment racks.

Technical Specifications
