Product Overview

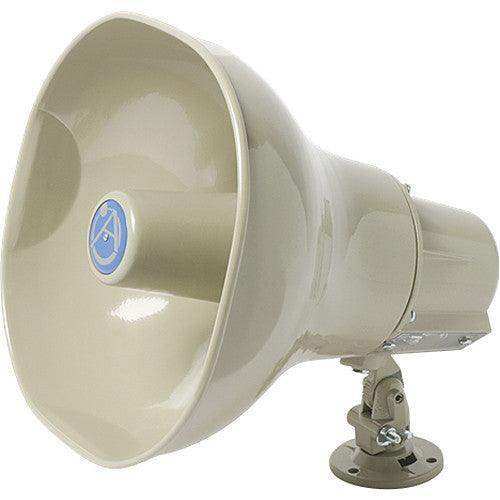

The Atlas Sound AP-30TC is a double re-entrant horn loudspeaker rated at 30 watts continuous, equipped with a multi-tap 25V/70.7V/100V line transformer for versatile distributed audio and paging system applications. With a sensitivity of 108 dB and a frequency response of 300 Hz to 12 kHz, the AP-30TC delivers superior voice intelligibility for commercial paging horn installations in indoor and outdoor environments. The beige epoxy finish and omni-purpose mounting bracket make it a standard choice for factory floors, warehouses, parking facilities, and institutional PA systems. IP34-rated and U.S. manufactured, the AP-30TC is BAA/TAA eligible and carries a 60-month warranty.
Product Description
The AP-30TC uses a double re-entrant acoustic design to maximize audio conversion efficiency and intelligibility at 30 watts of continuous power handling. Its frequency response from 300 Hz to 12 kHz covers the critical range for voice and tone signaling, and 108 dB sensitivity ensures strong SPL output even on long distributed runs. The integral transformer uses AtlasIED's exclusive Vari-Tap Connect Center, a 7-position watts/impedance selection switch that is screwdriver-adjustable and covered by a protective strain-relief plate — reducing installation time and protecting against accidental tap changes post-installation. The transformer supports 25V, 70.7V, and 100V line operation, covering all common distributed audio voltage standards. An omni-purpose mounting bracket is included on all models, enabling precise vertical and horizontal positioning with a single adjustment. The bracket accommodates conventional surface mounting and strap-mounting to I-beams or pillars. Metal and ABS plastic construction with beige epoxy finish (the “C” suffix designates beige). The AP-30TC operates from -40°C to 70°C, making it suitable for unheated or outdoor-adjacent industrial environments. It is manufactured in the U.S. for consistent quality control. The 60-month warranty is standard for the AP Series.
Key Features
- Double Re-Entrant Horn Design — Maximizes audio conversion efficiency and speech intelligibility for paging and tone signaling.
- Vari-Tap 25V/70.7V/100V Transformer — 7-position screwdriver-adjustable tap simplifies installation and accommodates multiple distributed system voltage standards.
- 108 dB Sensitivity — High output efficiency reduces amplifier requirements in distributed paging systems.
- Omni-Purpose Mounting Bracket — Single-adjustment bracket allows precise horizontal and vertical positioning; mounts to flat surfaces or strap-mounts to I-beams.
- IP34 Rating — Resistant to water splashes from all directions, suitable for indoor/outdoor-adjacent deployments.
- -40°C to 70°C Operating Range — Covers industrial, warehouse, and unheated outdoor environments.
- U.S. Manufactured — AtlasIED AP Series production in the U.S. for quality assurance and BAA compliance.
- 60-Month Warranty — AtlasIED's standard 5-year warranty on the AP Series.
Technical Specifications
| Specification | Value |
|---|---|
| Frequency Response | 300 Hz – 12 kHz |
| Sensitivity | 108 dB |
| Dispersion | 60° |
| Power Rating | 30 Watts |
| Transformer | 25V / 70.7V / 100V, Vari-Tap 7-position |
| Operating Temperature | -40°C to 70°C |
| IP Rating | IP34 |
| Height | 11" (27.94 cm) |
| Width | 10" (25.4 cm) |
| Depth | 10.5" (26.67 cm) |
| Shipping Weight | 6.30 lbs (2.86 kg) |
| Finish | Beige Epoxy |
| Warranty Period | 60 months from date of purchase |
