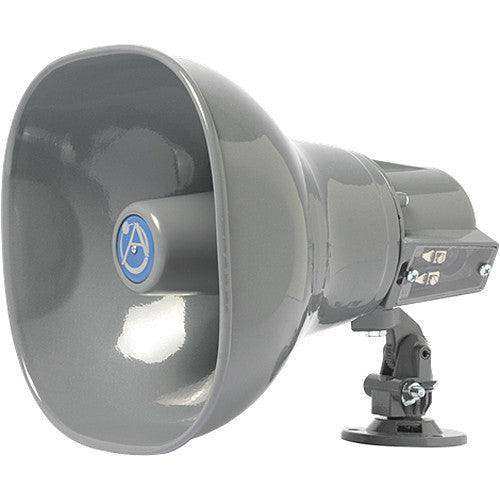

Atlas Sound AP-15TUC – Omni-Purpose Emergency Horn with 15W 70V Transformer
Atlas Sound AP-15TUC – Omni-Purpose Emergency Horn with 15W 70V Transformer is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound AP-15TUC – Omni-Purpose Emergency Horn with 15W 70V Tra...
Product Overview
The Atlas Sound AP-15TUC is a 15-watt double re-entrant horn loudspeaker engineered for emergency signaling, high-intelligibility paging, and intercommunication systems. It operates on 70.7V distributed audio systems and includes a built-in 5 mfd capacitor for line supervision, meeting UL 1480 and California State Fire Marshal (CSFM/Title 19) requirements. The AP-15TUC is suited for indoor and outdoor applications in education, industrial, and public safety environments.
Product Description
The AP-15TUC's double re-entrant driver delivers 15 watts of continuous power handling with a sensitivity of 106 dB (1W/1m), providing audible coverage at distances required in large open areas. Frequency response of 400 Hz to 14 kHz emphasizes the speech intelligibility range, making voice announcements clear even in high-ambient-noise environments. The built-in Vari-Tap transformer provides selectable power taps at 1, 2, 3.8, 7.5, and 15 watts, allowing system designers to balance coverage and amplifier load. A 5 mfd line supervision capacitor is integral to the design, supporting supervised circuit requirements in fire alarm and emergency notification systems. The Omni-Purpose mounting bracket supports standard surface installations as well as strap-mounting to I-beams and structural pillars, enabling flexible placement in industrial and outdoor settings. The trademarked squared-bell horn design is constructed of weather-resistant metal and ABS plastic, finished in grey epoxy, and rated IP55. All AP Series units are manufactured in the United States and carry a 5-year warranty.
Key Features
- 15-Watt High-Efficiency Compression Driver — 106 dB sensitivity at 1W/1m for broad coverage from fewer units.
- 400 Hz – 14 kHz Frequency Response — Optimized for voice intelligibility in paging and emergency signaling.
- Built-In Vari-Tap Transformer — Selectable taps at 1, 2, 3.8, 7.5, and 15 watts at 70.7V.
- 5 mfd Line Supervision Capacitor — Supports supervised circuit wiring for fire alarm integration.
- Omni-Purpose Mounting Bracket — Single-adjustment positioning; compatible with I-beam and pillar strap-mounting.
- IP55 Weather-Resistant Construction — Metal and ABS housing rated for indoor and outdoor use.
- UL 1480 Listed, CSFM Listed — Meets fire protective signaling system standards and California Title 19.
- -40°C to 70°C Operating Range — Suitable for extreme indoor and outdoor temperature environments.
- U.S. Manufactured — Produced domestically to ensure quality and service reliability.
Technical Specifications
| Specification | Value |
|---|---|
| Frequency Response | 400 Hz – 14 kHz |
| Sensitivity | 106 dB |
| Power Taps | 1, 2, 3.8, 7.5, 15W @ 70.7V |
| Dispersion | 70° |
| Operating Temperature | -40°C to 70°C |
| Height | 8 3/4" (22.22 cm) |
| Width | 7 7/8" (20.00 cm) |
| Depth | 9 5/16" (23.66 cm) |
| Shipping Weight | 5.00 lbs (2.27 kg) |
| Weather Rating | IP55 |
| Safety Listing | UL 1480, CSFM (Title 19) |
| Warranty | 60 months from date of purchase |
