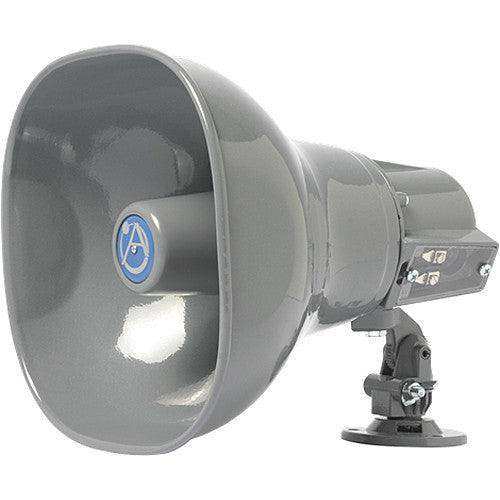

Atlas Sound AP-15 – 15W 8-Ohm Double Re-Entrant Horn Loudspeaker
Atlas Sound AP-15 – 15W 8-Ohm Double Re-Entrant Horn Loudspeaker is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound AP-15 – 15W 8-Ohm Double Re-Entrant Horn Loudspeaker
Product Overview
The Atlas Sound AP-15 is a 15-watt, 8-ohm double re-entrant horn loudspeaker designed for indoor and outdoor voice and tone paging applications. Delivering 106dB sensitivity and a 400Hz–14kHz frequency response, it provides the intelligibility and output efficiency required for general paging, emergency notification, and signal distribution in commercial, industrial, and institutional settings. U.S.-made with weather-resistant metal and ABS plastic construction finished in grey epoxy.
Product Description
The AP-15 is a double re-entrant horn speaker that combines 15 watts continuous power handling with high acoustic output efficiency, making it effective in high-ambient-noise environments where maximum voice intelligibility is critical. The 70° dispersion angle provides focused coverage suited for corridors, loading docks, warehouses, parking structures, outdoor grounds, and large indoor spaces. Sensitivity is 106dB, and the operating temperature range spans −40°C to 70°C, qualifying it for extreme-environment deployment. AtlasIED’s trademarked squared-bell design is a recognized indicator of quality and durability across commercial paging installations. The included Omni-Purpose mounting bracket enables precise vertical and horizontal positioning with a single adjustment and provides mounting provisions for conventional flat surfaces as well as strap mounting on I-beams or pillars. Metal components are finished in grey epoxy for corrosion resistance. An optional conduit/cable adapter plate (BX-2A) is available. For installations with amplifiers that pass low-frequency content, the TSD-HF11 high-frequency protection unit is available to protect the compression driver. Warranted for 60 months from purchase.
Key Features
- 15W Continuous Power Handling — Handles sustained paging and tone signaling without thermal compression.
- 106dB Sensitivity — High output efficiency minimizes amplifier power requirements for distributed systems.
- Double Re-Entrant Design — Delivers superior speech intelligibility and unparalleled efficiency compared to single re-entrant configurations.
- 400Hz – 14kHz Frequency Response — Optimized for voice and tone paging in the critical speech intelligibility range.
- Omni-Purpose Mounting Bracket — Single-adjustment precision positioning; accommodates flat surfaces and I-beam or pillar strap mounting.
- Weather-Resistant Construction — Metal and ABS plastic with grey epoxy finish; IP34 rated for indoor and outdoor use.
- -40°C to 70°C Operating Range — Suitable for extreme temperature environments including outdoor and industrial installations.
- U.S. Made — Manufactured in the United States for consistent quality and service reliability.
Technical Specifications
| Specification | Value |
|---|---|
| Power Rating | 15 Watts |
| Impedance | 8 Ohms |
| Frequency Response | 400Hz – 14kHz |
| Sensitivity | 106dB |
| Dispersion | 70° |
| Operating Temperature Range | −40°C to 70°C |
| Height | 8-3/4" (22.22cm) |
| Width | 7-7/8" (20.00cm) |
| Depth | 9-5/16" (23.66cm) |
| Shipping Weight | 4.00 lbs (1.81kg) |
| IP Rating | IP34 |
| Finish | Grey Epoxy |
| Warranty | 60 months from date of purchase |
